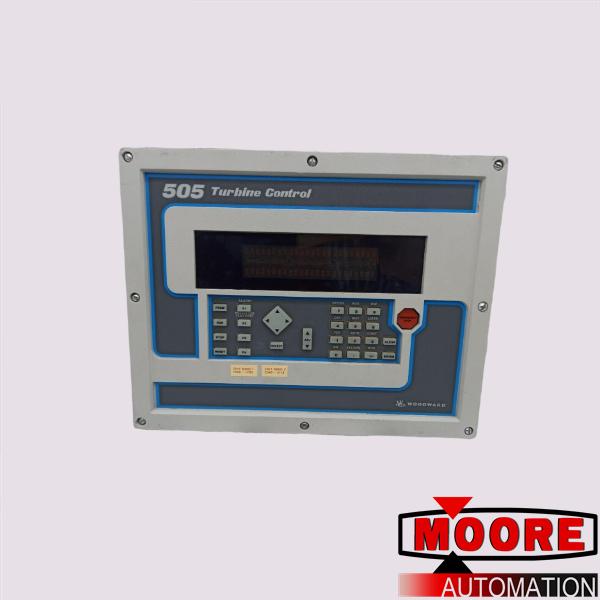

9907-163 Woodward microprocessor-based controller

Brand/ Manufacturer:
Woodward
Dimensions:
28.1cm*12.7cm*28.1cm
Weight:
0.6kg
Country of Origin: :
USA
Description:
Turbine Control

Inquiry now

Mfr. Part Number:	9907-163

Manufacturer:	Woodward

Description:	The 9907-163 model is a governor unit, able to process all of the turbine operational parameters.

Full Description:	Woodward 505 Digital Governor for Steam Turbines with Single or Split-Range Actuators. Part 9907-163 features 18-32 VDC Power and is a microprocessor-based controller.


Status:	In stock ready to ship

plcsale@mooreplc.com + 86 18030235313

dddemi33 2851195473

Hope we can do more business in future ! There will become your honest cooperation partners!

9907-163 Technical Specifications

Display Type:24 character LED
Enclosure Type:NEMA Type 4X
Features:Emergency Stop Button
Input Voltage:24VDC
Inputs:6 Programmable Current Inputs, 16 Discrete Contact Inputs
Keypad/Display:30 Keys
Operating Temperature:Passes Lloyd’s type ENV3 Dry Heat test
Slot Type:RS232C/RS422 serial port
Software Version:OpView™ and 505View
Storage Temperature:For longest life, store near room temperature and limit the thermal cycle range.
Weight:9lb 11oz

Product Description

This device belongs to a series developed by the oldest and leading manufacturing company in America, Woodward Inc. These units are designated as the 505/505E series of digital control units, built to operate a choice of either one or both of the split stage actuators in steam turbines in order to drive the inlet steam valves.

The 9907-163 model is a governor unit, able to process all of the turbine operational parameters. These models are outfitted with an internal microprocessor module, which enables them to be able to control turbines, as well as other similar devices, such as a turbogenerator or expander module.

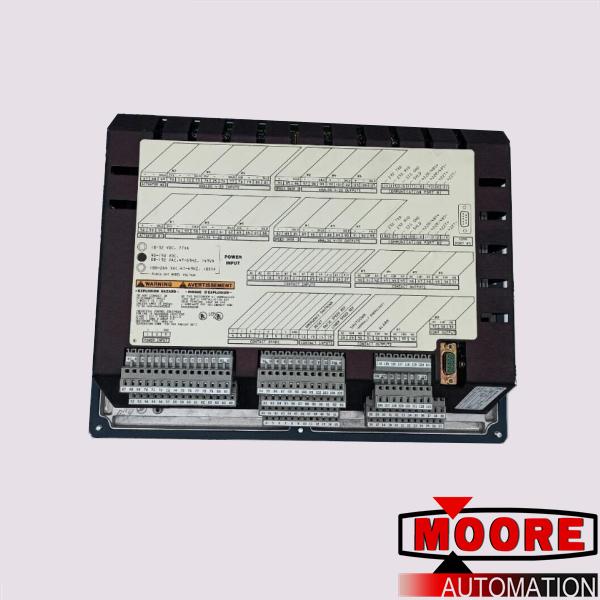

The 9907-163 is outfitted with a series of printed circuit boards that allow the unit to function and process commands. These boards are protected by the frame of the unit, however, there is an option for an additional layer of protection for this unit. This consists of the NEMA 4X graded protective frame. When attached, it is still able to be securely and safely mounted within a control panel system. However, the acceptable ambient temperature range decreases slightly, from a high intensity of 65 degrees C to 55.
