9200-02-05-10-00 | Bently Nevada Two-wire Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
11.5x4x4cm
Weight:
0.46kg
Country of Origin: :
USA
Description:
Bently Nevada 9200-02-05-10-00 Two-wire Transducer

Inquiry now

Mfr. Part Number:	9200-02-05-10-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 9200-02-05-10-00 Two-wire Transducer

Full Description:	Bently Nevad Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

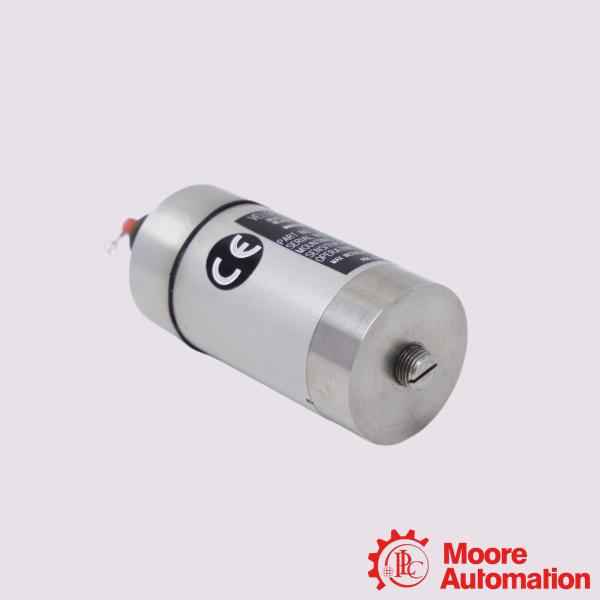

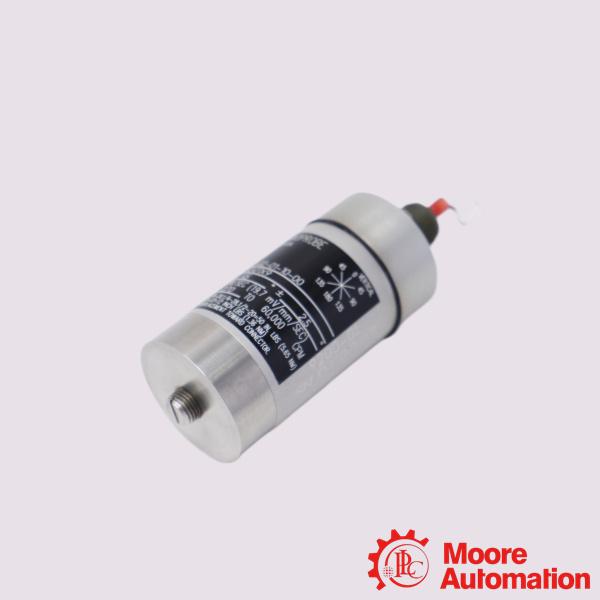

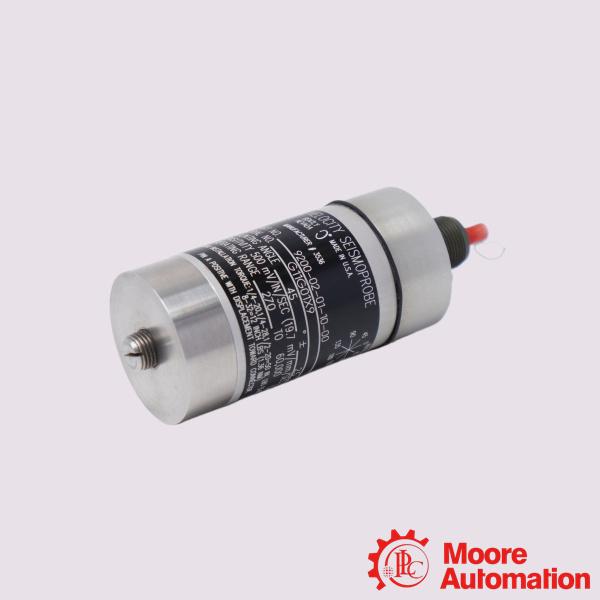

The Bently Nevada 9200-02-05-10-00 is a two-wire, moving-coil Seismoprobe Velocity Transducer used to measure absolute casing, bearing housing, or structural vibration on rotating machinery. Bently Nevada™ Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The two-wire systems consist of a transducer and appropriate cable. The Seismoprobe family of velocity transducers is a two-wire design that uses moving-coil technology. It provides a voltage output directly proportional to the transducer's vibration velocity.

Application:

Industrial Fans and Blowers: Monitors for aerodynamic instability, structural fatigue, blade deposits, and rotational unbalance.
Centrifugal Pumps: Tracks bearing degradation, hydraulic imbalances, shaft misalignments, and fluid cavitation issues.
Electric Motors: Identifies mechanical looseness, broken rotor bars, and rolling-element bearing faults.
Small to Mid-Sized Turbines: Serves as a reliable, cost-effective alternative to displacement probes for non-critical casing monitoring in simple utility environments.

Frequently Asked Questions (FAQ)

Q:Why is the mounting angle (02) critical?

A:Moving-coil sensors contain an internal mass suspended by springs. The 02 calibration is physically optimized to cancel out the force of gravity only when tilted at 45 degrees. Installing this sensor horizontally (0°) or vertically (90°) will cause the internal coil to rest off-center, severely distorting data.
Q:What is the electrical sensitivity of this transducer?
A:The standard scale factor is 20 mV/mm/s (500 mV/in/s) ±5% when the unit is properly terminated and aligned to its 45-degree angle of calibration.

Q:How does moving-coil technology differ from solid-state sensors?
A:Unlike piezo-velocity sensors (which embed integration electronics inside an accelerometer), moving-coil sensors are self-generating and require no external power. They are significantly less sensitive to impact or sudden impulsive shocks, which helps avoid false trip readings in aggressive physical environments.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：9200-02-05-10-00
Connector/Cable Option	Terminal block top mount (no cable)
Cable operating temperature	-50˚C to 120˚C
Sensitivity Temperature Coefficient	0.2%/°C
Coil Resistance	1.25 kΩ ±5%
Locked Coil Inductance	125 mH, typical
Gasket Material	Neoprene
Minimum length	2.0 ft (0.6 m)
maximum length	99 ft (30 m)
Mounting Base Option	Circular; M10X1 stud
Agency Approval Option	No Approvals
