9200-01-02-07-04 | Bently Nevada Two-wire Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
5.4x4x9.5cm
Weight:
0.48kg
Country of Origin: :
USA
Description:

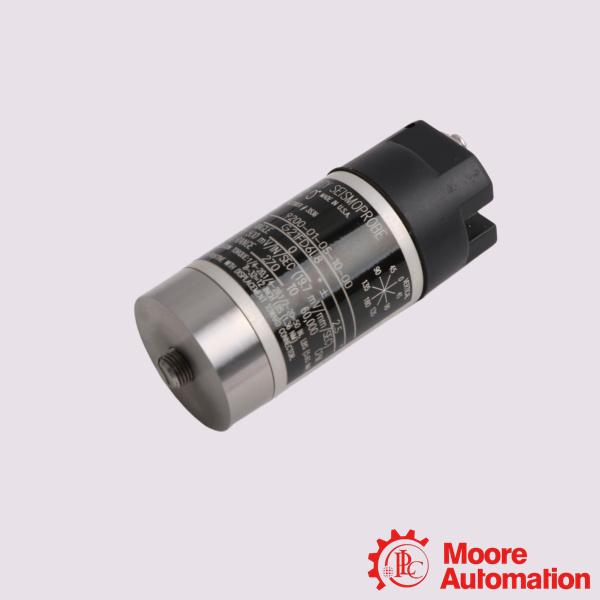

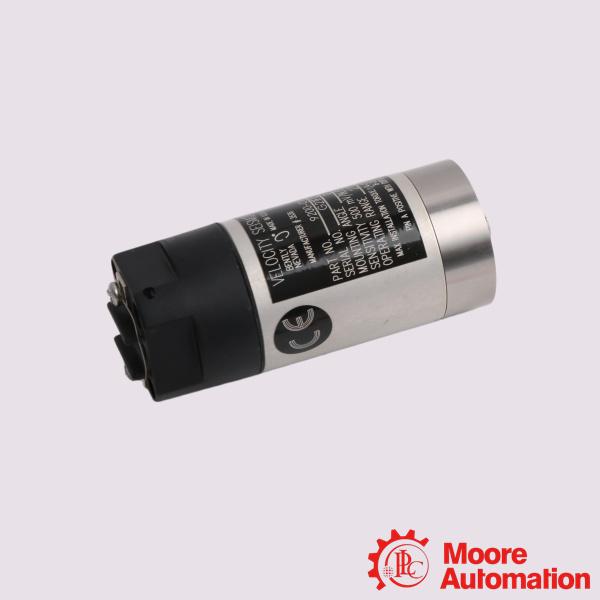

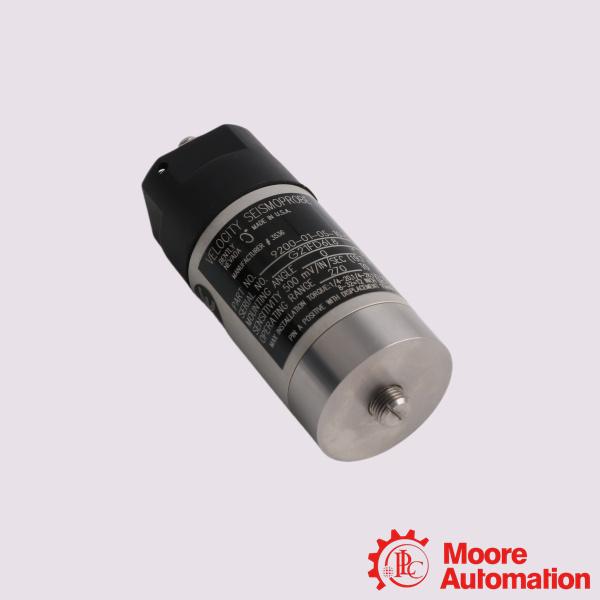

Bently Nevada 9200-01-02-07-04 Two-wire Transducer

Inquiry now

Mfr. Part Number:	9200-01-02-07-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 9200-01-02-07-04 Two-wire Transducer

Full Description:	Bently Nevad Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 9200-01-02-07-04 is a specific configuration of the 9200 Seismoprobe Velocity Transducer System. It is designed for measuring absolute bearing housing, casing, or structural vibration on critical industrial rotating machinery.Bently Nevada™ Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The two-wire systems consist of a transducer and appropriate cable.

Application:

Gas & Steam Turbines: Monitoring absolute casing and structural frame vibrations to protect multi-megawatt generation units.
Hydroelectric Generators: Assessing low-frequency structural movement on the stator frame or bearing housings.

Balance of Plant (BOP) Equipment: Protecting auxiliary pumps and fans required for continuous plant uptime.
Electric Motors: Protecting high-horsepower induction motors running at standard industrial speeds.

Frequently Asked Questions (FAQ)

Q:What does the isolated mounting base do?

A:The -07 base option introduces an isolated 1/4-28 UNF stud. This configuration physically and electrically isolates the sensor body from the machine casing frame. This isolation helps eliminate potential electrical ground loops and prevents high-amplitude industrial electrical noise from corrupting the low-voltage dynamic signal
Q:What is the maximum transmission distance for the signal wire?
A:You can run a maximum lead wire length of up to 305 meters (1,000 feet) between the 9200 transducer and your legacy 3300 or modern 3500 Machinery Protection System Monitor. Note that extended distances may cause high-frequency signal roll-off depending on the cabling characteristics.

Q:Can I mount this sensor vertically?
A:No. The -01 modification signifies that this transducer is calibrated specifically for a horizontal installation layout of 0° ±2.5°. Mounting a moving-coil sensor outside its calibrated orientation will cause the internal spring-mass suspension mechanism to sag or bind, leading to severe tracking errors or complete component lockup.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：9200-01-02-07-04
Connector/Cable Option	Side Mount (no cable)
Cable operating temperature	-50˚C to 120˚C
Sensitivity Temperature Coefficient	0.2%/°C
Coil Resistance	1.25 kΩ ±5%
Locked Coil Inductance	125 mH, typical
Gasket Material	Neoprene
Minimum length	2.0 ft (0.6 m)
maximum length	99 ft (30 m)
Mounting Base Option	Isolated circular 1/4-28 UNF stud
Agency Approval Option	ATEX/IECEx
