9200-01-01 84661-12 | Bently Nevada Two-wire Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
4.2x4.2x11.5cm
Weight:
0.46kg
Country of Origin: :
USA
Description:

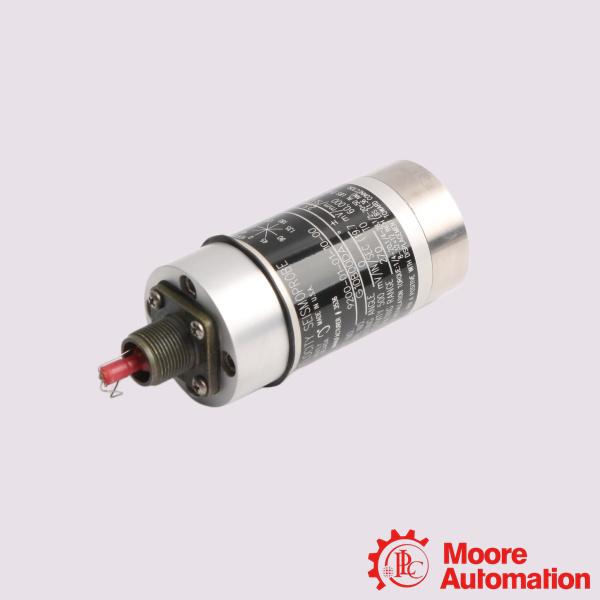

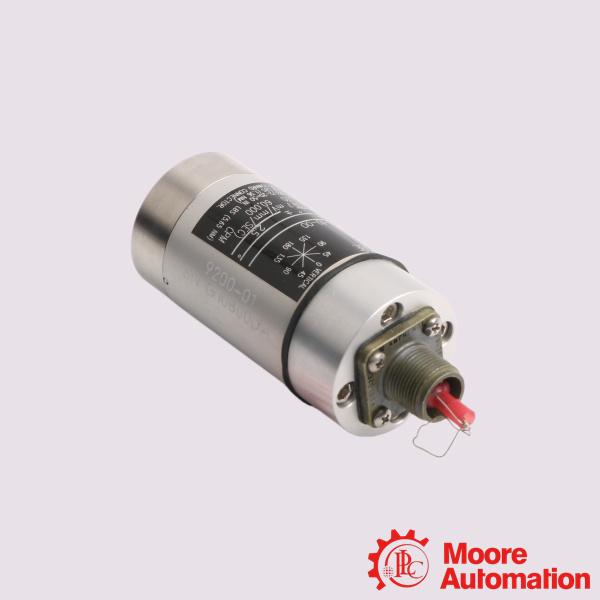

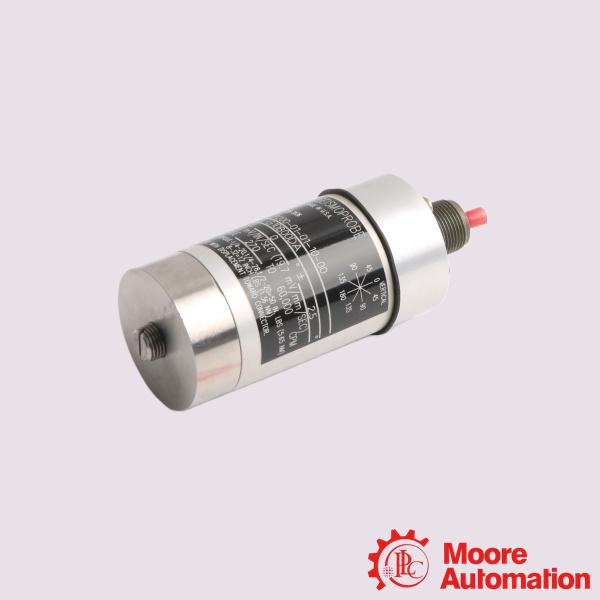

Bently Nevada 9200-01-01 84661-12 Two-wire Transducer

Inquiry now

Mfr. Part Number:	9200-01-01 84661-12

Manufacturer:	Bently Nevada

Description:	Bently Nevada 9200-01-01 84661-12 Two-wire Transducer

Full Description:	Bently Nevad Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 9200-01-01 (often associated with part revision or internal number 84661-12) is a legacy, two-wire Seismoprobe Velocity Transducer used to measure absolute casing, structural, or bearing housing vibration on rotating machinery. It operates on moving-coil technology, making it entirely self-powered and uniquely suited for both continuous monitoring and portable diagnostic tests.
Bently Nevada™ Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The two-wire systems consist of a transducer and appropriate cable.

Application:

Power Generation Plants: Continuous casing and bearing housing vibration monitoring on medium-speed industrial gas turbines, steam turbines, and large backup diesel generators.
Water and Wastewater Treatment: Used heavily on large vertical water pumps, wastewater agitators, and fluid-handling machinery where structural casing twists are common.
Oil & Gas Refining & Petrochemical: Monitoring of heavy-duty centrifugal compressors, reciprocating pump casings, and large fan assemblies operating in demanding environments.
Pulp, Paper, and Mining Utilities: Tracking the mechanical condition of heavy reduction gearboxes, de-barking drums, and structural framing surrounding large crushers.

Frequently Asked Questions (FAQ)

Q:Is the 9200 series still actively manufactured?

A:The moving-coil 9200 series is largely considered a legacy product. For most standard modern applications, Bently Nevada recommends transitioning to the solid-state Velomitor family of piezoelectric velocity sensors, which offer increased mechanical durability and better long-term reliability.
Q:Does this transducer require external power?
A:No. The moving-coil architecture creates its own voltage loop as the internal coil moves through a permanent magnetic field. This self-powered nature eliminates the need for external power supplies, making it ideal for field diagnostics.

Q:What is the maximum allowable cable length?
A:The maximum distance between the 9200 Seismoprobe and a Bently Nevada 3500 or 3300 monitoring system is 305 meters (1,000 feet). Exceeding this distance causes high-frequency signal attenuation.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：9200-01-01 84661-12
Cable operating temperature	-50˚C to 120˚C.
Minimum length	3.0 ft (0.9 m)
maximum length	99 ft (30 m)
Sensitivity Temperature Coefficient	0.2%/°C
Coil Resistance	1.25 kΩ ±5%
Locked Coil Inductance	125 mH, typical
Gasket Material	Neoprene
