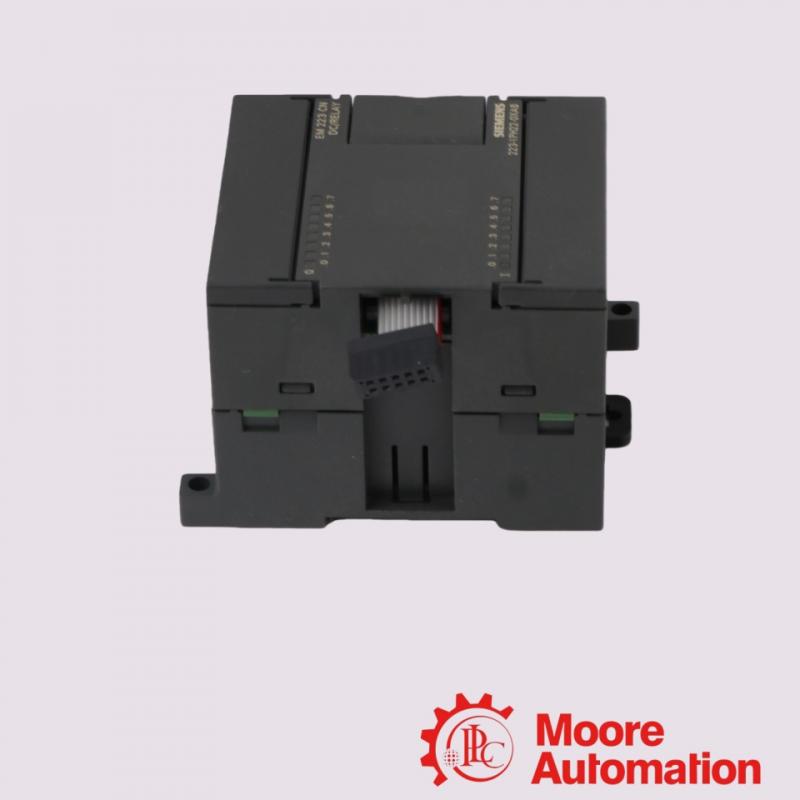

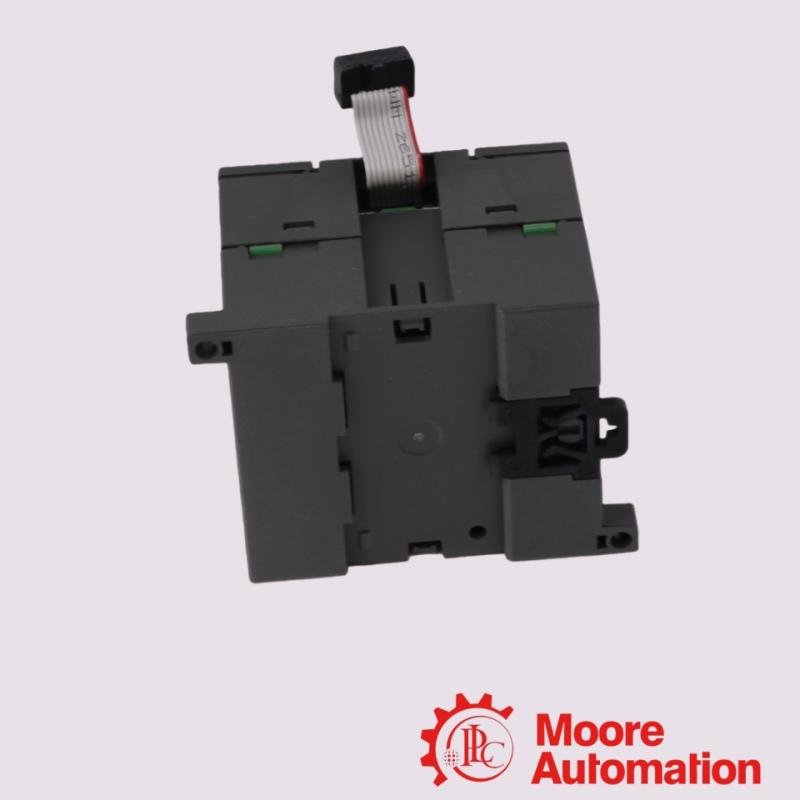

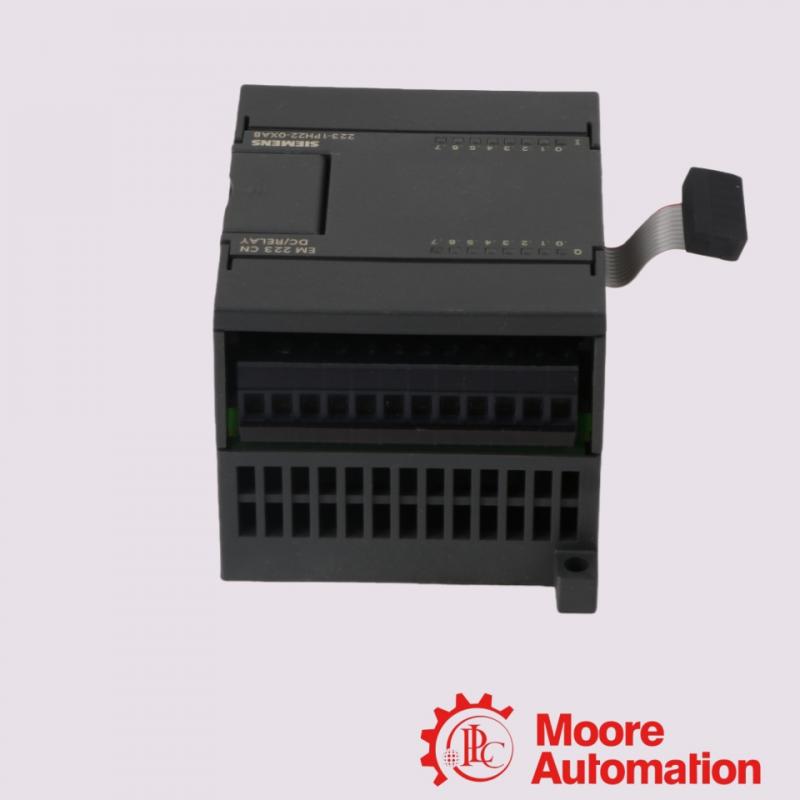

6ES7223-1PH22-0XA0 Siemens I/O Module

Long description
SIMATIC S7-200, Digital I/O EM 223, only for S7-22X CPU, 8 DI 24 V DC, Sink/Source, 8 DO relay, 2 A/channel

Parameter
Rated DC Load Voltage：24V DC
Rated AC Load Voltage：230V AC, 24 to 230V AC
Permissible DC Load Voltage Range：5 to 30V DC
Permissible AC Load Voltage Range：5 to 250V AC
Typical Power Loss：3 Watts
Digital Inputs：8 Inputs
Digital Outputs：8 Outputs
Relay Outputs：Yes
Output Short-Circuit Protection：No
Plug-In I/O Terminals：Supported
Max. Shielded Cable Length：500 Meters
Max. Unshielded Cable Length：150 Meters

Frequently asked questions

1.What is  6ES7223-1PH22-0XA0 ？
6ES7223-1PH22-0XA0  is a  I/O Module

2.What is a central i/o module?
I/O modules, or input/output modules, are devices that act as bridges between the control system and peripheral devices such as sensors, motors and actuators. These modules are essential components of industrial automation systems to receive (input) or send (output) data.

3.What is an IO module?
The Critical Role of I/O Modules
An I/O module — also known as an input/output module — allows for communication between a computer system and a peripheral device. Some examples of peripheral devices include graphics cards, image scanners, digital cameras, speakers and microphones.

4.What is the difference between IO and PLC?
The IO module is mainly responsible for the connection and signal conversion of the underlying hardware, while the PLC is responsible for the design and implementation of the control logic. They cooperate with each other to realize data collection and control of various devices.

Application field
Siemens' application areas cover core fields such as industrial automation, intelligent infrastructure, digital transportation, transportation, and medical technology. It is committed to achieving cost reduction, efficiency improvement, and intelligent upgrading in manufacturing, energy systems, and building operations through digitalization, software, and artificial intelligence technologies. The specific applications cover a wide range of industries such as automobiles, chemicals, electronics, food, logistics, metals, wind power generation, and medical institutions.
