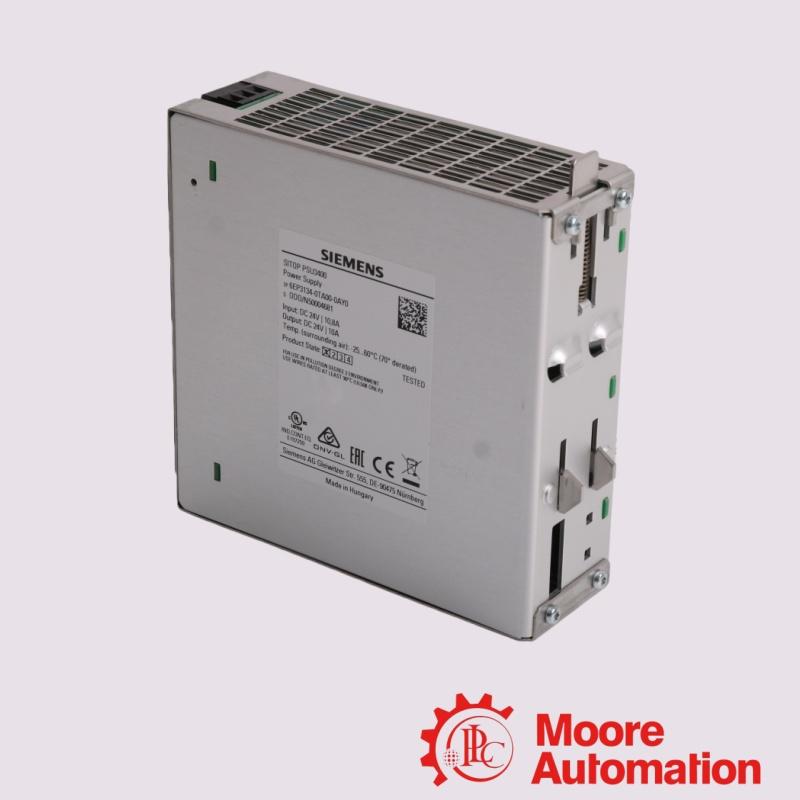

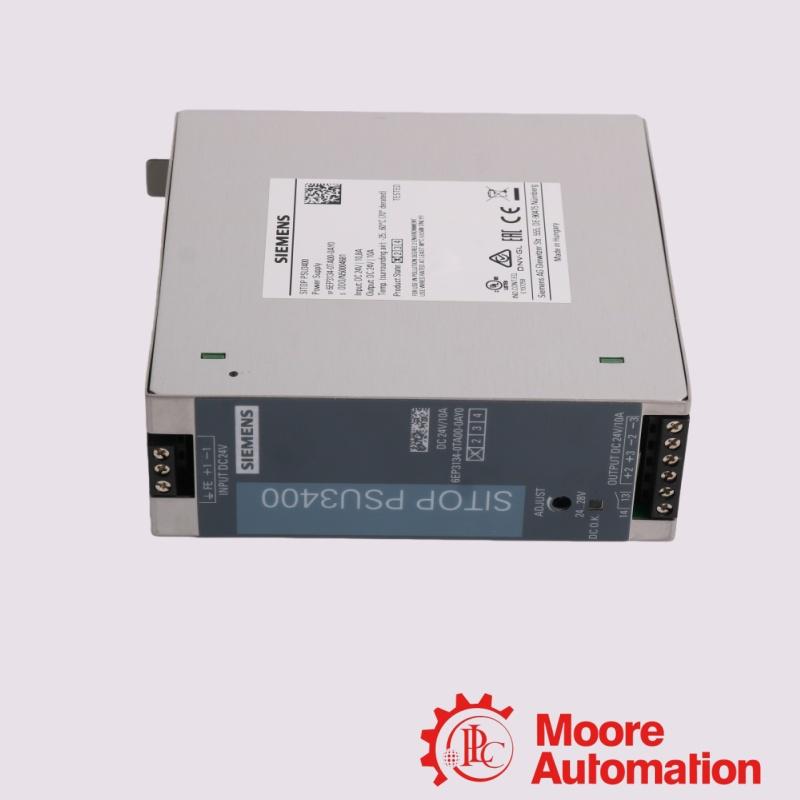

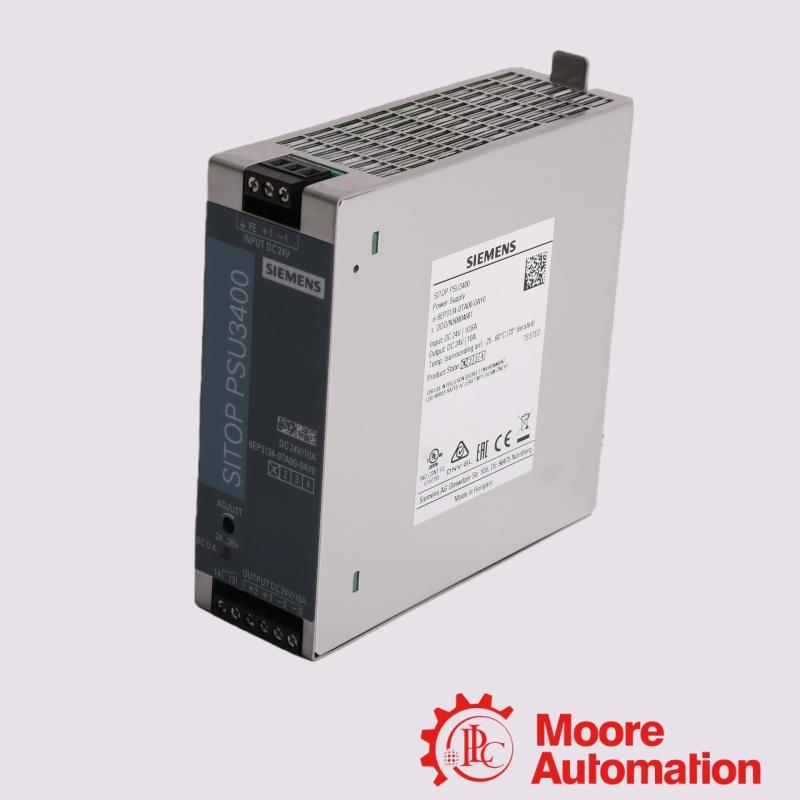

6EP3134-0TA00-0AY0 Siemens power supply

Long description
SITOP PSU3400 24 V/10 A Stabilized power supply Input: 24 V DC (14…32 V) Output: 24 V DC/10 A

Parameter
type of the power supply network: DC voltage
supply voltage at AC: Startup, as of 18 V, derating necessary for 14...18 V DC
supply voltage at DC: 24...24 V
input voltage at DC: 14...32 V
wide range input: No
overvoltage overloaded capability: No
buffering time for rated value of the output current in the event of power failure minimum: 5 ms
operating condition of the mains buffering: at Vin = 24 V
input current:
at rated input voltage 24 V: 10.8 A
current limitation of inrush current at 25 °C maximum: 15 A
I²t value maximum: 0.5 A²s
fuse protection type: 25 A (not accessible), breaking capacity 300 A
fuse protection type in the feeder: Recommended miniature circuit breaker: 16 A characteristic B or C
voltage curve at output: Controlled, isolated DC voltage
output voltage at DC rated value: 24 V
output voltage:
at output 1 at DC rated value: 24 V
output voltage adjustable: Yes; via potentiometer
adjustable output voltage: 24...28 V
relative overall tolerance of the voltage: 1 %
relative control precision of the output voltage:
on slow fluctuation of input voltage: 0.1 %
on slow fluctuation of ohm loading: 0.3 %

Frequently asked questions

1.What is 6EP3134-0TA00-0AY0?
6EP3134-0TA00-0AY0 is a power supply

2.What is in a 6EP3134-0TA00-0AY0 power supply?
An AC adapter disassembled to reveal a simple, unregulated linear DC supply circuit: a transformer, four diodes in a bridge rectifier arrangement, and an electrolytic capacitor to smooth the waveform.

3.How to check power supply serial number?
The serial number is listed after the word “Serial No,” “SSN,” “S/N,” or “SN” and can be located with the methods shown below: Sticker label on the back of the Power Supply unit.

4.What is power supply and types?
What are the 4 types of power supply? There are many different types of power supplies that are used in a variety of devices. Some examples of power supplies include linear power supplies (regulated and unregulated), switch-mode power supplies, uninterrupted power supplies, and programmable power supplies.

Application field
GE industrial products are widely used in sectors that demand high reliability, precision, and long-term operational stability. Key application areas include:

Power Generation: Gas and steam turbines, generators, and combined cycle plants.
Oil & Gas: Compressors, pumps, drilling rigs, and process control in upstream, midstream, and downstream operations.
Industrial Machinery: Rotating machinery, motors, compressors, and pumps in manufacturing and process industries.
Aerospace & Transportation: Engine control systems, propulsion monitoring, and auxiliary equipment.
Energy and Utilities: Power distribution, grid management, and critical infrastructure monitoring.
