6dd1641-0ac0 EB11 | Siemens I/O Module

in stock#

Brand/ Manufacturer:
Siemens
Dimensions:
2x26.1x26.1cm
Weight:
0.5 kg
Country of Origin: :
GERMANY
Description:
Siemens 6dd1641-0ac0 EB11 I/O Module

Inquiry now

Mfr. Part Number:	6dd1641-0ac0 EB11

Manufacturer:	Siemens

Description:	Siemens 6dd1641-0ac0 EB11 I/O Module

Full Description:	The Siemens 6DD1641-0AC0 EB11 I/O Module with an input current of 5 mA

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Siemens. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

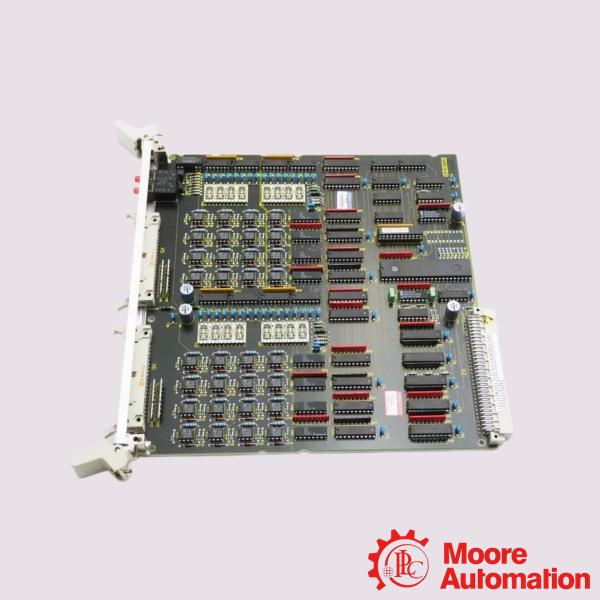

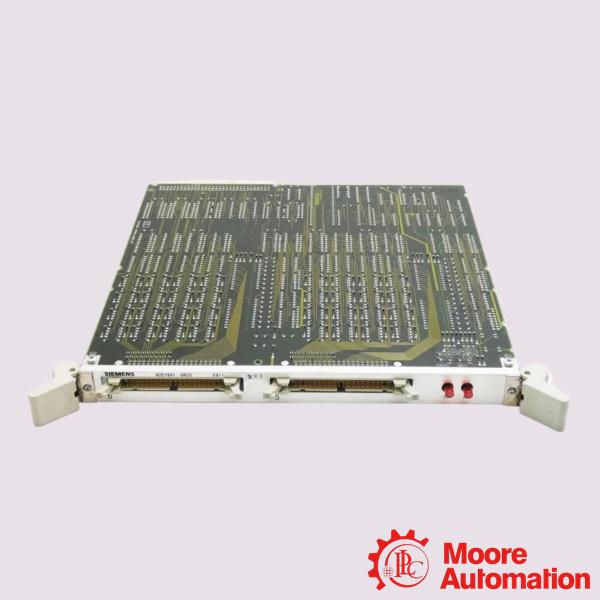

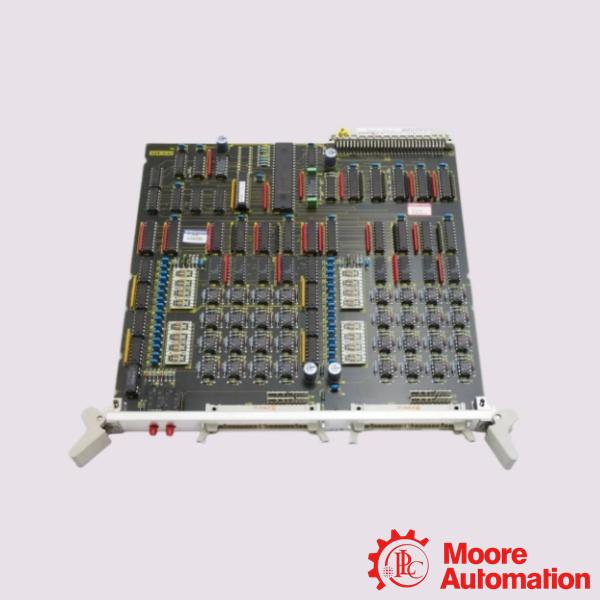

The Siemens 6DD1641-0AC0 EB11 I/O Module is used in the SIMADYN D system for the input and output of binary information. The two 40-way ribbon cable connectors X5 and X6 (with equal priority) on the frontplate are each organized in groups of 4 x 10 pins, each ten pins being organized in eight bits of information and an external power supply P24 and ground. The four units of a connector are divided into two units for input and two for output.

The S1 and S2 pushbuttons with integral LEDs also located on the frontplate are used for the visual indication of output inhibit signals (LED function) and/or for the manual resetting of output inhibit signals (pushbutton function). Pushbutton S1 is assigned to connector X5 and pushbutton S2 to connector X6.The inputs and outputs have a rated voltage of 24 V. The inputs load the source with 5 mA and the outputs supply 50 mA.

Application:

Metallurgy and Steel Industry: Control of hot/cool rolling mills in steel plants, continuous casting machines, tension control, and multiple motors.
Power and Energy Control: High-voltage direct current transmission systems, flexible alternating current transmission systems.
Paper and Textile Machinery: Paper machine drive control in paper mills, synchronous operation of winding machines, multi-axis precise linkage.
Heavy Marine Engineering and Machinery: Control of large cranes, ship propulsion systems, deep-sea drilling platforms.

Frequently Asked Questions (FAQ)

Q:How many binary inputs does the Siemens 6DD1641-0AC0 EB11 support?
A:It 6DD1641-0AC0 EB11 supports 32 binary inputs for processing multiple field signals.

Q:What is the input current of the Siemens 6DD1641-0AC0 EB11?
A:The input current is 5 mA, ensuring low-power signal detection.

Q:What shipping methods are used for 6DD1641-0AC0 EB11?
A:Major carriers like FedEx, DHL, and UPS are primarily used for worldwide delivery.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number:6dd1641-0ac0 EB11
Ambient temperature	0 to 55 deg. c
Storage temperature	-40 to +70 deg. c
Binary inputs	Quantity 32
Input voltage	+24 v rated
Input current	5 mA
Delay time	200 us
Residual current	20 uA at 0 signal
