6DD1610-0AG1 Siemens memory module

Siemens 6DD1610-0AG1 Function description

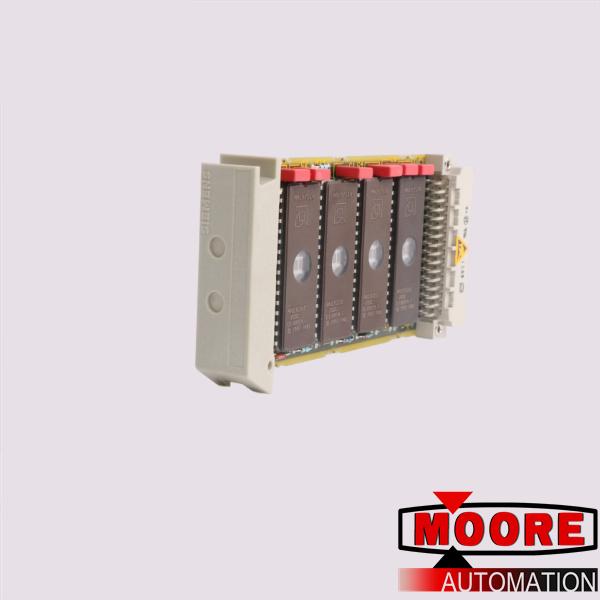

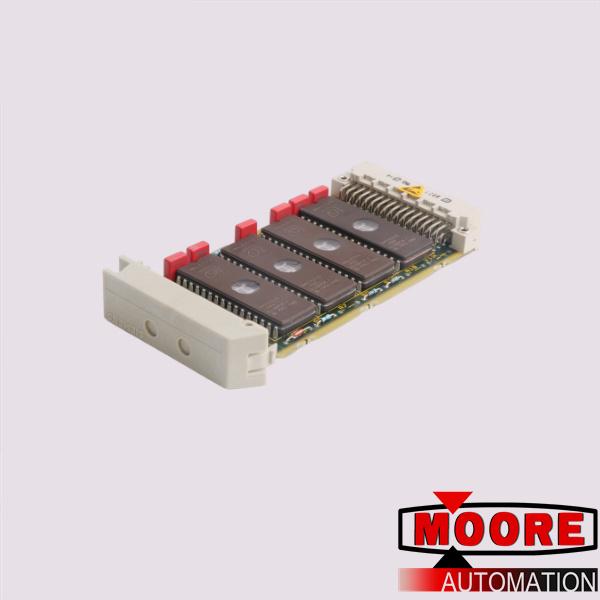

The MS41 memory board is a small PC board with one 28-pin and four 32-pin slots.The EPROMs contain the machine code for the operating system and the configured user program. Changing operating parameters, for example, controller gains, are stored in the EEPROM.The MS41 memory board is inserted in the processor board through a cut-out in the front panel.

The MS41 board uses components that can be destroyed by electrostatic discharge (ESD). The following protective measures must be observed when handling the boards:
- Only touch the board, if a grounded object is simultaneously touched (e.g. cabinet ground, grounding panel)
- Only transport the board in the original conductive packing
- Only set the board down on conductive surfaces
- It must not come into contact with highly insulating materials (e.g. plastic, articles of clothing manufactured from man-made fibers).
