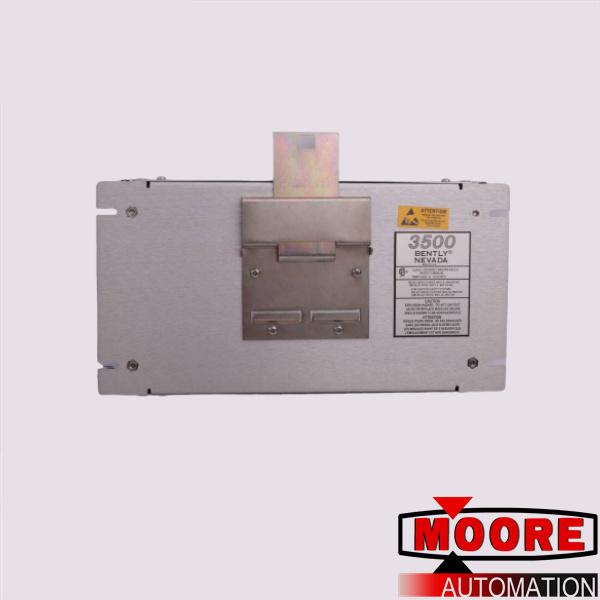

3500/94 Bently Nevada VGA Display Monitor

Brand/ Manufacturer:
Bently Nevada
Dimensions:
24.3cm*4.6cm*15.5cm
Weight:
0.55kg
Country of Origin: :
United States
Description:

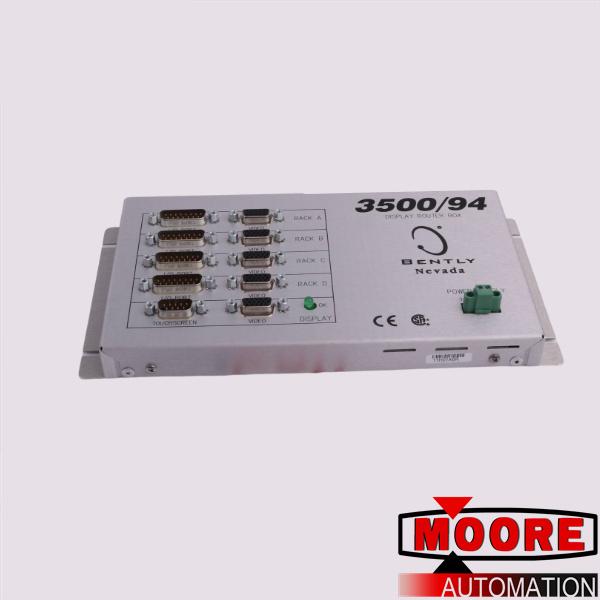

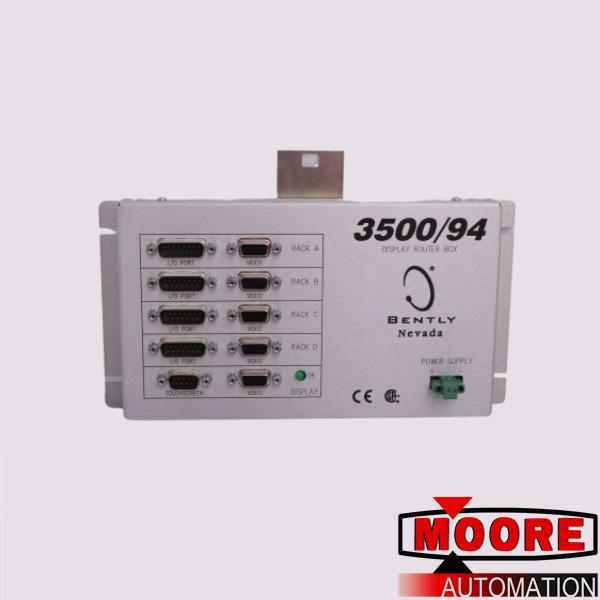

Display Router

Inquiry now

Mfr. Part Number:	3500/94

Manufacturer:	Bently Nevada

Description:	The 3500/94 VGA Display uses a standard color VGA monitor with “Touch Screen” technology to display 3500 data. In stock ready to ship

Full Description:	Prouct has two components, the 3500/94 VGA module and its I/O card, and secondly, the VGA display monitor. The display monitor, with standard cabling, can be mounted up to 8 m (25 ft) from the rack.

Sales manager: Tiffany Guan plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Features:

Standard Color VGA Monitor
"Touch Screen" Technology
Can Be Mounted up to 8m from the Rack
OK and Bypass LEDs

The 3500/94 VGA Display uses a standard color VGA monitor with “Touch Screen” technology to display 3500 data. This product has two components, the 3500/94 VGA module and its I/O card, and secondly, the VGA display monitor. The display monitor, with standard cabling, can be mounted up to 8 m (25 ft) from the rack.

The 3500/94 displays all 3500 Machinery Protection System information, including:
• System Event List
• Alarm Event List
• All module and channel data
• 3300 style rack view (API-670)
• Current alarm data (quick view)
• Nine custom display options.

All are accessed through a Main Menu using a Touch Screen. Users configure the 3500/94 modules for language and for the type of VGA display through the 3500 Rack Configuration Software.

All other types of data configurations are done locally at the display, giving the operator control over the displayed data. Users may configure nine custom screens locally. As an example, one custom screen may show all the 1X measurements, while another shows all the Gaps, or the custom screens may be organized into train groupings.

Users can organize all system data into any specified sets assigned the data to a custom screen. An API-670 compatible screen is also selectable. This screen is similar to a 3300 view of the rack. Each slot shows the Direct or
Gap value on the face of the module with OK and Bypass LED
