3500/42E 285691-01 | Bently Nevada Vibration Monitor

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
24.1x2.4x16.3cm
Weight:
0.46 kg
Country of Origin: :
USA
Description:

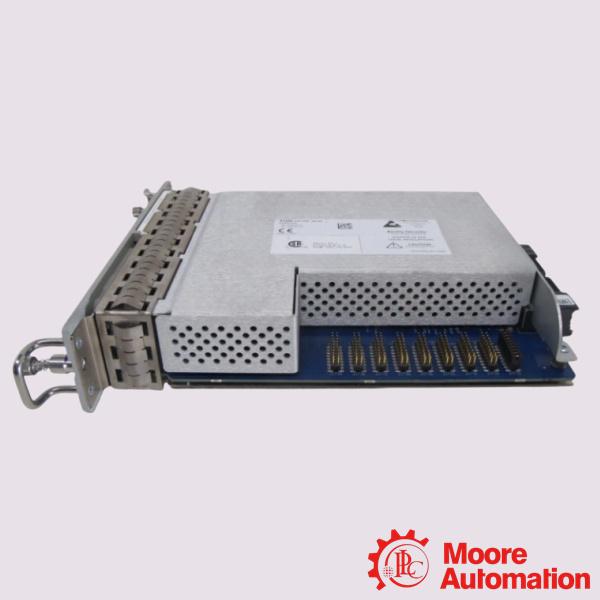

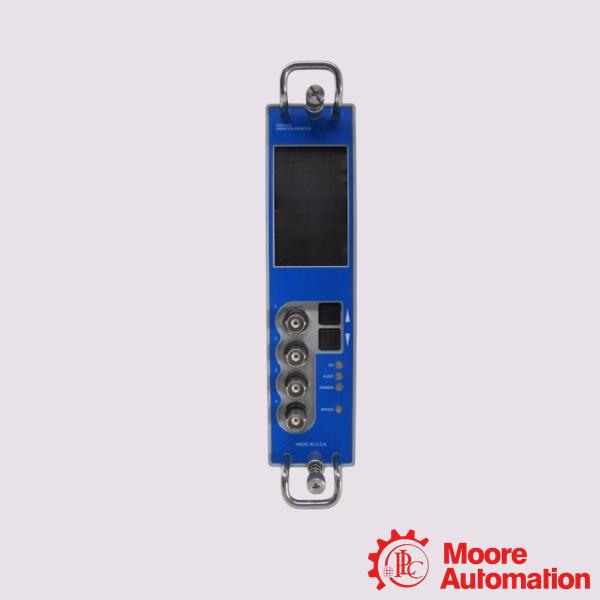

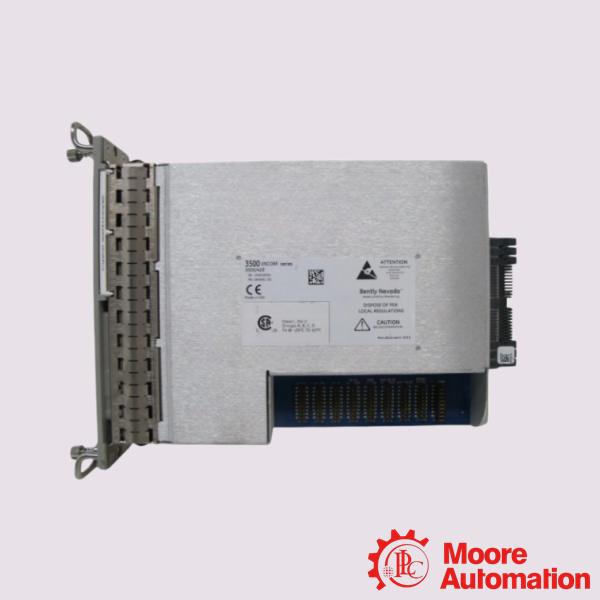

Bently Nevada 3500/42E 285691-01 Vibration Monitor

Inquiry now

Mfr. Part Number:	3500/42E 285691-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 3500/42E 285691-01 Vibration Monitor

Full Description:	The Bently Nevada 3500/42E 285691-01 Vibration Monitor is a 4-channel monitor

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 3500/42E 285691-01 Vibration Monitor is a 4-channel monitor that accepts input from proximity and seismic transducers, conditions the signal to provide various vibration and position measurements, and compares the conditioned signals with user-programmable alarms.

With an input impedance of 10 kΩ, the monitor ensures accurate signal reception from connected transducers.The device operates efficiently with a typical power consumption of 6.8 W, making it suitable for continuous monitoring applications without excessive energy usage.

Application:

Oil and gas: Monitoring of pumps, compressors and turbines on drilling platforms and in refineries.
Electricity industry: Axial vibration and displacement monitoring of steam turbine generators, gas turbines and hydro turbines.
Petrochemical and chemical industry: Health management of reactor agitators, large fans and reciprocating compressors.
Mining and metallurgy: High-load rotating equipment such as large crushers in mines and steel rolling machine units.
Water treatment: Protection of power equipment in large water pumping stations and irrigation systems.

Frequently Asked Questions (FAQ)

Q:What types of transducers can be used with the 3500/42E 285691-01?
A:It accepts input from proximity and seismic transducers.

Q:What is the output impedance of the 3500/42E 285691-01?
A:The output impedance is 499 Ω.

Q:What is the bias filter specification for this 3500/42E 285691-01 monitor?
A:The bias filter is -3 dB at 0.01 Hz.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: 3500/42E 285691-01
Input Impedance	10 kΩ
Power Consumption	6.8 W Typical
Radial Vibration	3.94 mV/µm (100 mV/mil), or 7.87 mV/µm (200 mV/mil)
Output Impedance	499 Ω
Transducer Power Supply	-24 Vdc
Voltage Compliance	0 to +12 Vdc
Gap Filter	-3 dB at 0.09 Hz
Bias Filter	-3 dB at 0.01 Hz
