in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
118x1.5x1.2cmWeight:
0.16kgCountry of Origin: :
USADescription:

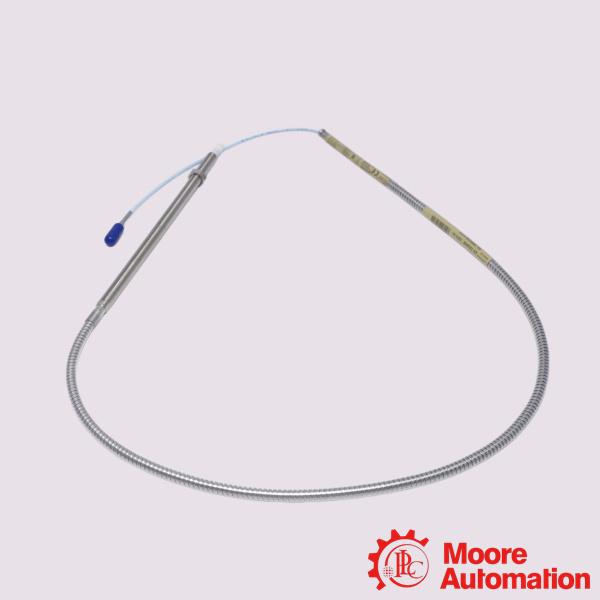

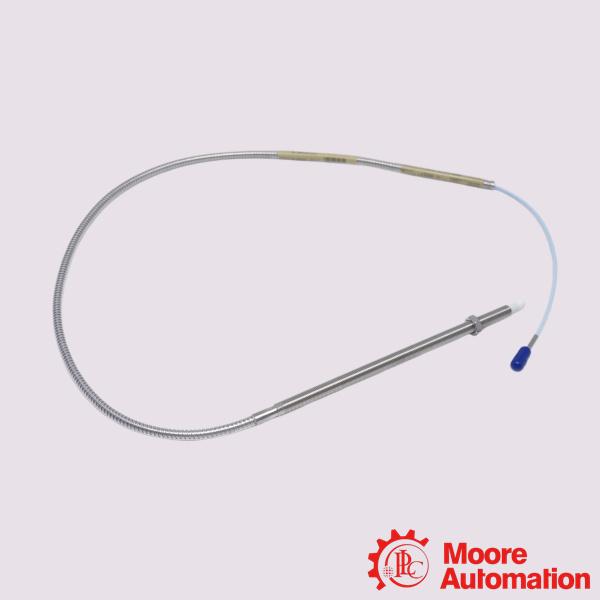

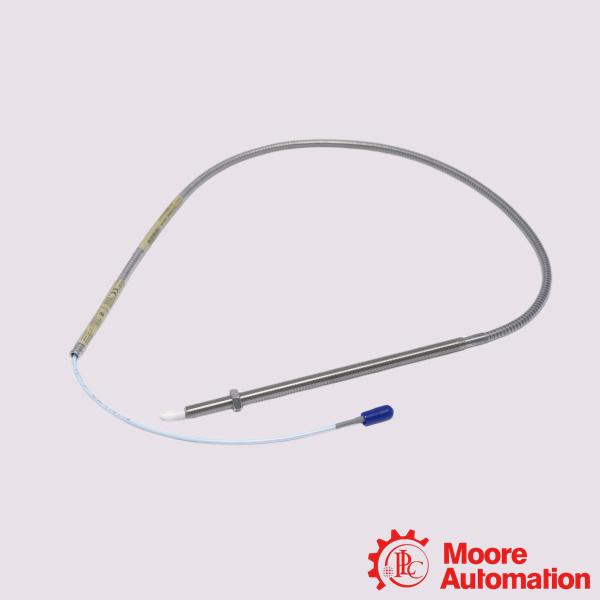

Bently Nevada 330909-00-40-05-02-05 3300 NSv Proximity Probes
| Mfr. Part Number: |
330909-00-40-05-02-05 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330909-00-40-05-02-05 is a 3300 XL NSv (Narrow Side View) Proximity Probe for non-contact vibration and displacement monitoring in compact machinery spaces. It operates as part of an eddy-current transducer system to deliver precise machinery health analytics.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
Application:
Centrifugal Air and Gas Compressors: Extensively utilized in small, high-speed centrifugal compressors where physical space around the internal bearings is heavily restricted.
Refrigeration Compressors: Found in heavy industrial chilling units and industrial HVAC refrigeration lines requiring precise machine-health tracking.
Small Steam and Gas Turbines: Applied to smaller industrial turbines where rotor shaft diameters or internal housing clearances limit standard sensor placement.
High-Speed Pumps and Gearboxes: Employed on auxiliary machinery and high-speed process pumps that use fluid-film bearings.
Frequently Asked Questions (FAQ)
Q:What target material is it calibrated to out of the box?
A:The transducer system comes standard-calibrated to AISI 4140 steel. If your equipment shaft is constructed from alternate metals (e.g., stainless steel, aluminum), custom calibration must be specified or adjusted at the factory.
Q:Can I connect this probe directly to any extension cable?
A:No. The NSv probe must be paired exclusively with a matching 3300 XL NSv Extension Cable and a 3300 XL NSv Proximitor Sensor. Mixing components from standard 3300 XL 5 mm or 8 mm series will disrupt calibrations and yield inaccurate electrical readings.
Q:What is the linear range and scale factor of this model?
A:The 3300 XL NSv system features a linear range of 1.5 mm (60 mils). The industry-standard Average Scale Factor (ASF) is 7.87 V/mm (200 mV/mil).
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330909-00-40-05-02-05 |
|
Unthreaded Length Option |
0.0 in |
|
Overall Case Length Option |
4.0 in |
|
Total Length Option |
0.5 meter (20 in) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
Multiple Approvals |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
