in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.6x1.4x66cmWeight:
0.05kgCountry of Origin: :
USADescription:

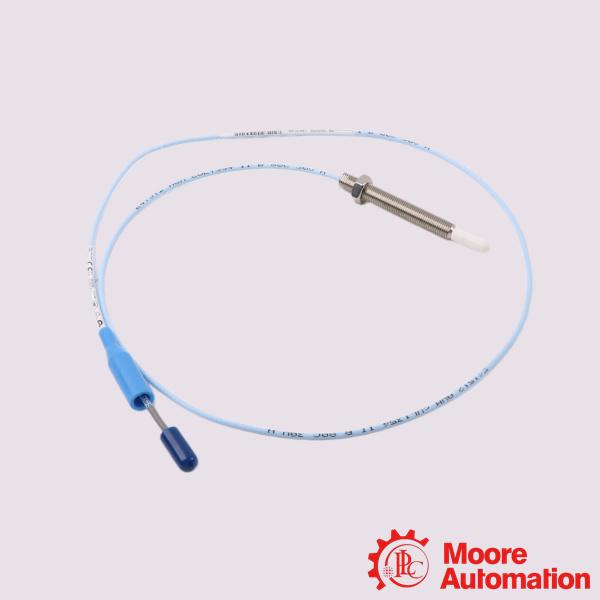

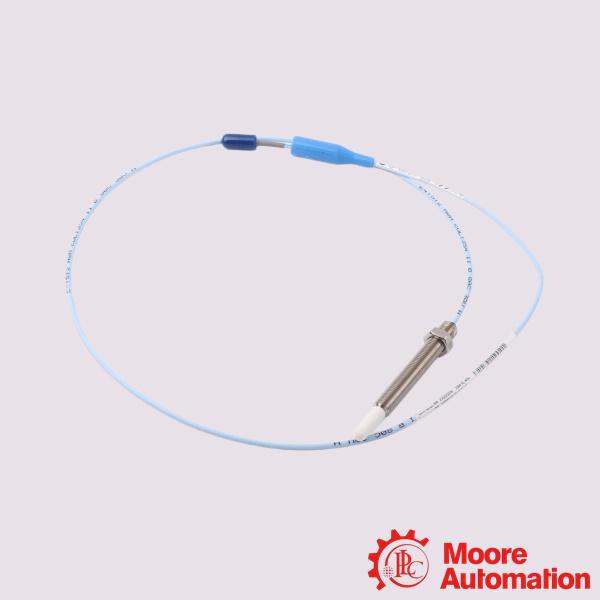

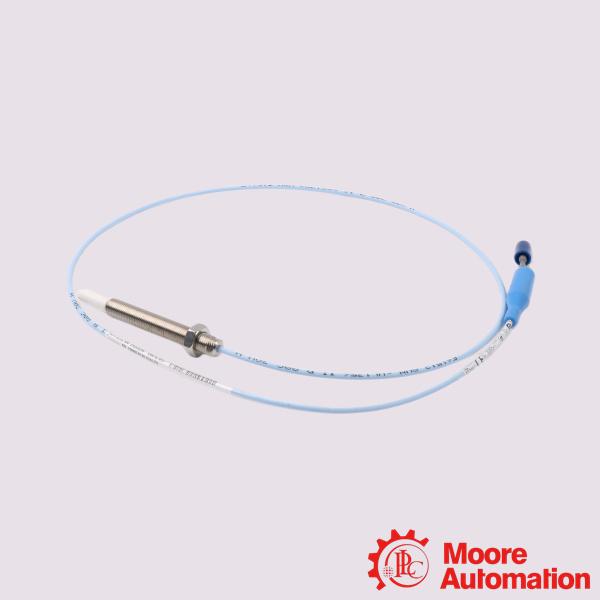

Bently Nevada 330908-00-60-50-02-CN 3300 NSv Proximity Probes
| Mfr. Part Number: |
330908-00-60-50-02-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330908-00-60-50-02-CN is a 3300 XL NSv Proximity Probe for high-precision monitoring in industrial environments with tight installation requirements. This specialized sensor is part of the broader Bently Nevada 3300 XL transducer system, which is a standard in the industry for non-contacting vibration and displacement measurement.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
Application:
Compressors: Widely used in centrifugal air compressors, refrigeration compressors, and various small process gas compressors.
Turbines and Motors: Ideal for monitoring machinery in turbines (specifically steam turbines) and industrial motors.
Small Shaft Equipment: Specifically suited for measuring radial vibration on shafts smaller than 51 mm (2 inches) or axial position on flat targets smaller than 15 mm (0.6 inches).
Radial Vibration Measurement: Monitoring the dynamic motion of a rotating shaft within its bearing.
Frequently Asked Questions (FAQ)
Q:What are ClickLoc connectors, and should I protect them?
A:ClickLoc connectors are gold-plated brass coaxial fittings designed to click together tightly so they cannot shake loose under machine vibration. It is highly recommended to use connector protectors over these links. They shield the signal line from moisture, turbine oil, and other process liquids that degrade signal clarity.
Q:What target material is this probe calibrated to?
A:By default, the 3300 XL NSv system is factory-calibrated to AISI 4140 steel. If your machine target uses a different alloy, the electrical output gap voltage will change, requiring a custom calibration from Bently Nevada.
Q:Does this probe require an extension cable?
A:No, a separate extension cable is not needed for this specific model. Because the option code is -50 (5.0 metres total length), the probe comes with an integrated 5-metre cable that hooks directly up to the Proximitor Sensor. If you use a shorter probe (like a 0.5m or 1.0m variant), a matching 3300 NSv extension cable must bridge the distance.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330908-00-60-50-02-CN |
|
Unthreaded Length Option |
0.0 in |
|
Overall Case Length Option |
6.0 in |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
