in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.5x1.3x108cmWeight:
0.06kgCountry of Origin: :
USADescription:

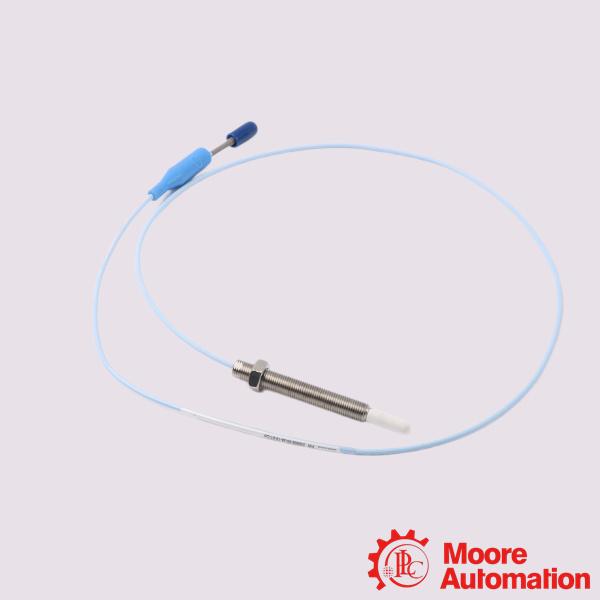

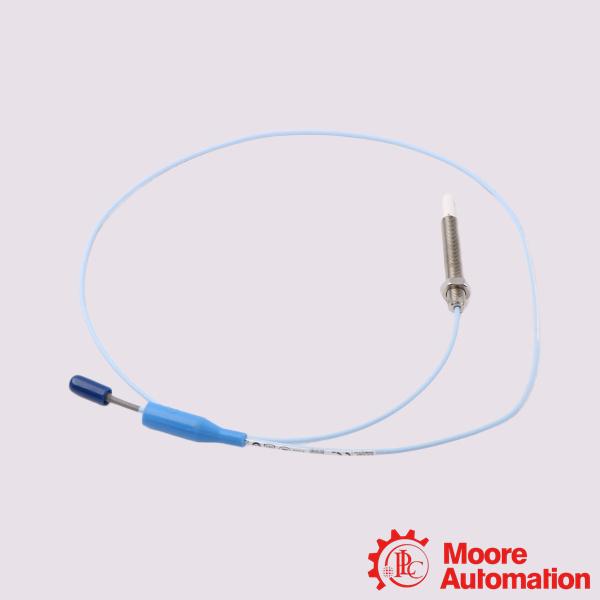

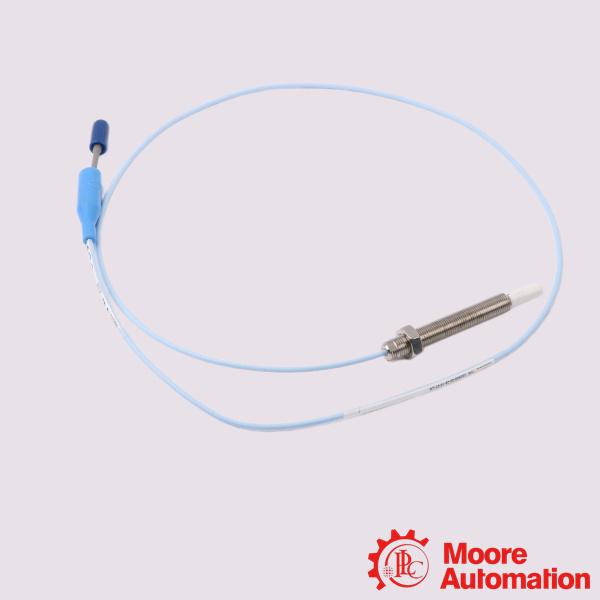

Bently Nevada 330908-00-40-05-02-CN 3300 NSv Proximity Probes
| Mfr. Part Number: |
330908-00-40-05-02-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330908-00-40-05-02-CN is a 3300 XL NSv Proximity Probe for non-contact vibration and shaft displacement monitoring. It is for compact rotating machinery applications with extremely tight spaces, counterbore restrictions, or side-view clearances that prevent the use of standard-sized 8 mm probes. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
Application:
Centrifugal Air Compressors: Used extensively to monitor high-speed radial shaft vibration and thrust displacement within confined internal bearing housings.
Refrigeration Compressors: Integrated into large-scale industrial chilling and refrigeration systems to track rotor stability and prevent catastrophic mechanical contact.
Process Gas Compressors: Deployed in oil, gas, and chemical refineries where the probe's advanced chemical resistance shields it from volatile process environments.
Small Rotating Machinery: Ideal for auxiliary pumps, small steam turbines, and turbo-expanders that utilize small-diameter target shafts or feature restricted viewing windows.
Frequently Asked Questions (FAQ)
Q:Can I swap components with regular 8 mm systems?
A:No. The NSv (No-Side-view) series requires its own specific Proximitor sensor and cannot be mixed with standard 3300 XL 8 mm components due to different electrical profiles and tuning.
Q:How does this sensor track machinery behavior?
A:It uses the eddy current principle to achieve high-precision, non-contact measurement of shaft displacement, dynamic vibration, and oil film thickness.
Q:What is the primary purpose of the 3300 XL NSv system?
A:The system is built for tight spaces where small target sizes or constraints like side-view, rear-view, or counterbore restrictions prevent the installation of standard 8 mm probes. It is widely applied to centrifuges, small pumps, and industrial compressors.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330908-00-40-05-02-CN |
|
Unthreaded Length Option |
0.0 in |
|
Overall Case Length Option |
4.0 in |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Total Length Option |
0.5 meter (20 in) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
