A: Probe and Approvals Option
2 8 3300 XL 8 mm probe with Multiple Approvals
B: Standoff Adapter Option (B Dimension)
Minimum length: 100 mm
C: Probe Penetration Option (C Dimension)
Minimum length: 90 mm
D: Fittings Option (supplied as a kit)
0 3 One M20 fitting, two plugs
E: Mounting Thread Option
0 2 3/4-14 NPT (required if ordering Standoff Adapter Option)

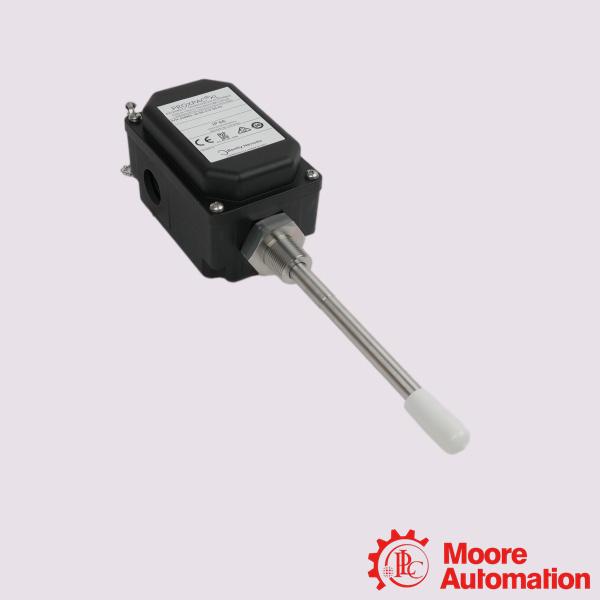

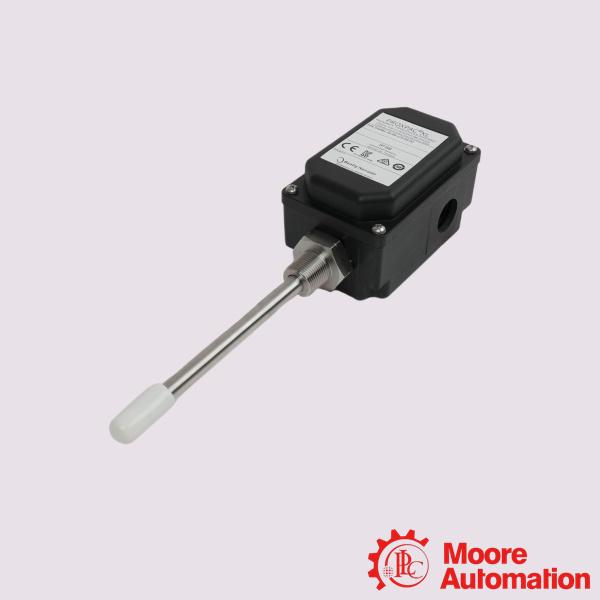

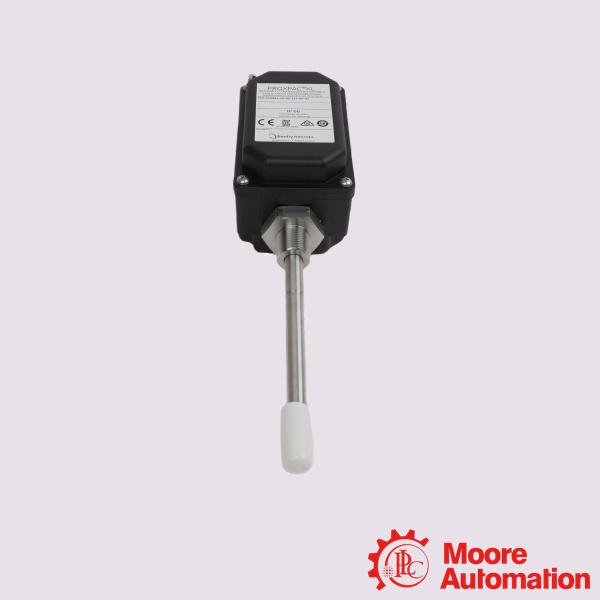

The 330881-28-10-090-03-02 PROXPAC XL housing is made of Polyphenylene Sulfide (PPS), which is an advanced, molded thermoplastic. This material replaces the steel and aluminum in previous housings offered in the Bently Nevada product line. It also incorporates glass and conductive fibers in the PPS to strengthen the housing and more effectively dissipate electrostatic charges. The PROXPAC XL housing is rated for Type 4X and for IP66 environments and provides extra protection in severe environments.
