330880-28-00-085-03-02 | Bently Nevada PROXPAC XL Proximity Transducer

Description

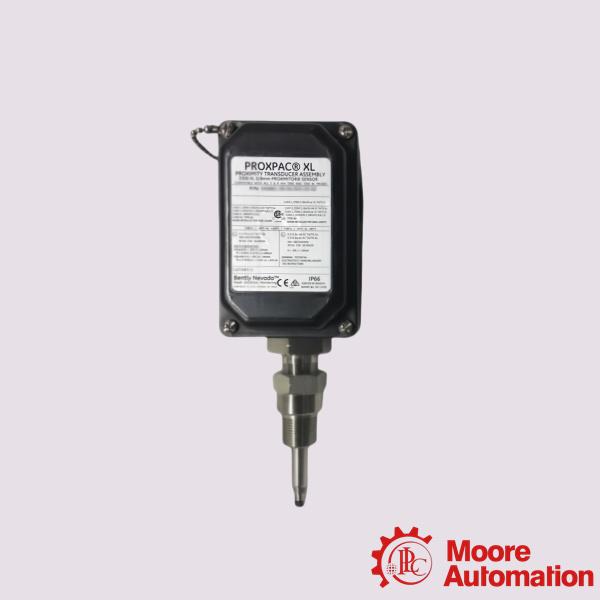

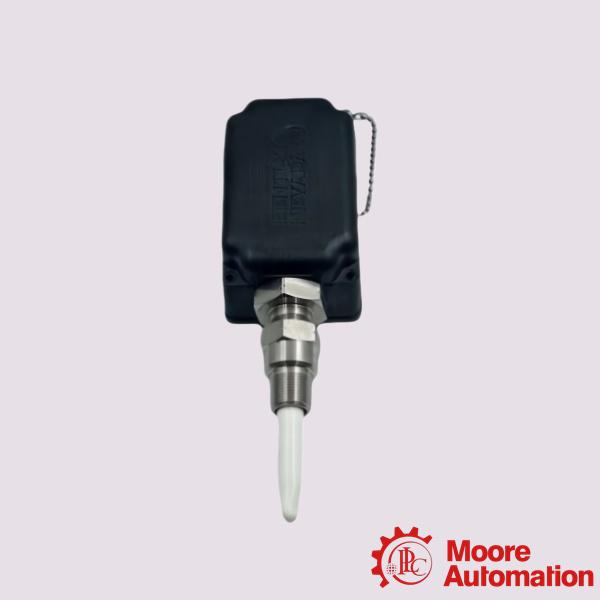

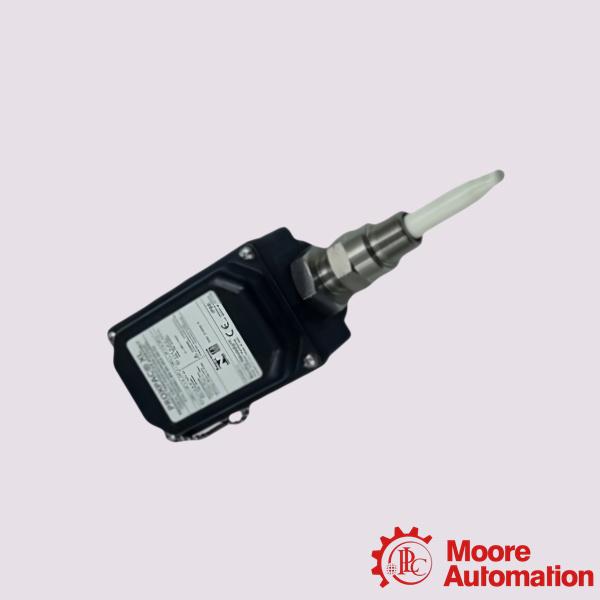

Bently Nevada 330880-28-00-085-03-02 is a PROXPAC XL Proximity Transducer that combines a 3300 XL 8 mm proximity probe and a Proximitor Sensor into a single, compact housing. This specific model features a 1.5-inch (38 mm) standoff adapter and is configured with a 10.6-inch (269 mm) probe penetration depth. It utilizes 3/4-14 NPT mounting threads and comes without additional fittings, instead including two plugs and two washers as standard. The assembly carries Multiple Approvals (28), making it suitable for hazardous area installations. Constructed from polyphenylene sulfide (PPS) and stainless steel.

Parameter

A: Probe and Approvals Option
28 3300 XL 8 mm probe with Multiple Approvals
B: Standoff Adapter Option (B Dimension)
15 Minimum length:1.5 in(38 mm)
C: Probe Penetration Option (C Dimension)
106 Minimum length:10.6 in(269 mm)
D:Fittings Option
00 No fittings; two plugs and two washers
E: Mounting Thread Option
02 3/4-14 NPT

Frequently asked questions

Does the 330880-28-15-106-00-02 allow for probe adjustment during machine operation?
Yes.It enabes probe gap adjustment or replacement without machinery shutdown.

How is the electrical connection made to the 330880-28-15-106-00-02?
It features internal terminal blocks for field wiring, typically accessed through the 3/4-14 NPT conduit entries on the housing.

Does the 330880-28-15-106-00-02 require a separate Proximitor housing?
No. it is already integrated into the housing, eliminating the need for additional enclosures.

Application areas:
Power Generation: Monitoring thrust bearing wear and rotor vibration.
Oil & Gas: High-speed centrifugal compressors, industrial pumps, and gas turbines used in refineries, natural gas pipelines, and offshore platforms.
Chemical Processing: Real-time fault diagnosis and condition monitoring of critical rotating assets such as chemical pumps and reactor drive systems.
Metallurgy & Mining: Monitoring the axial position of heavy-duty rolling mills and large electric motors in dusty, high-humidity environments;
