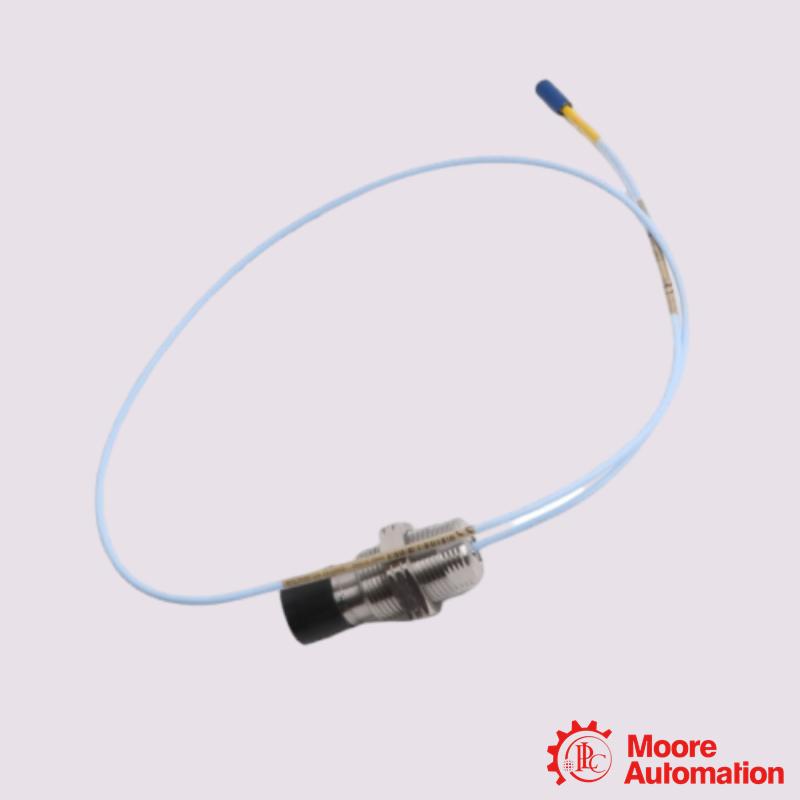

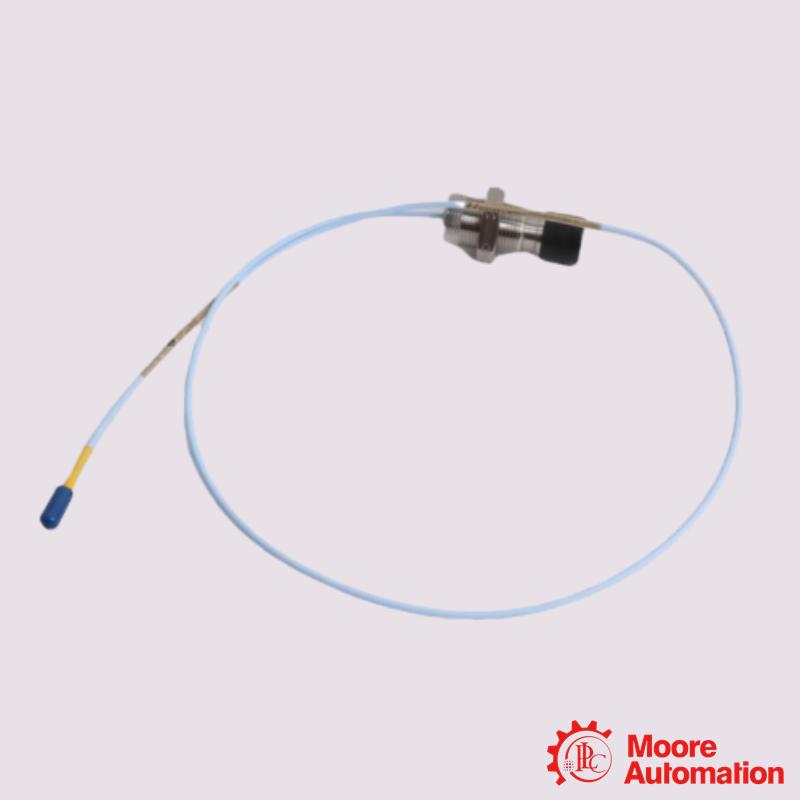

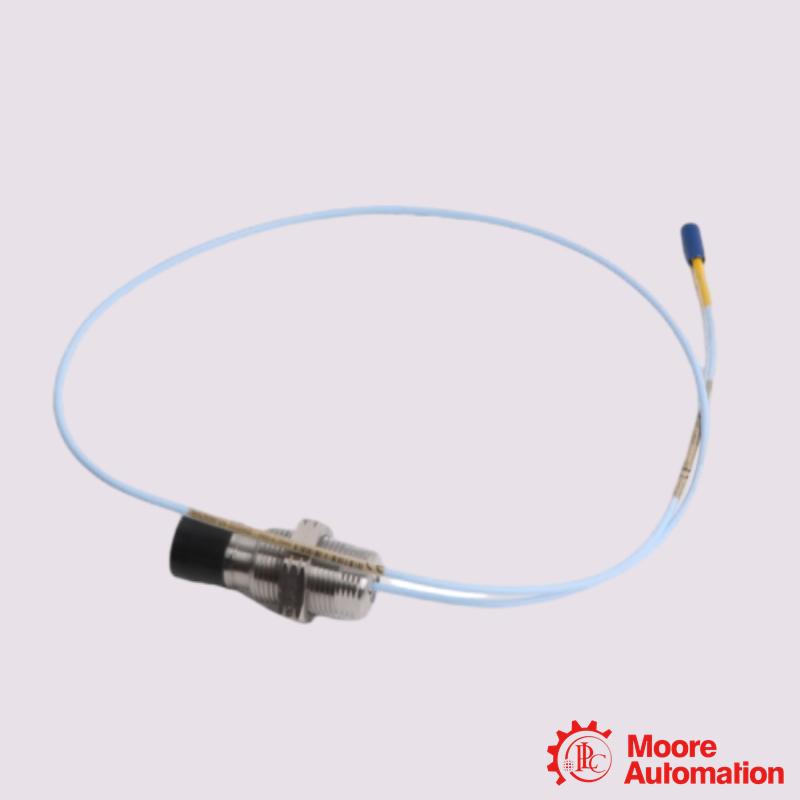

330851-02-000-066-10-00-00 Bently Nevada 3300 XL 25 mm Proximity Probe

Brand/ Manufacturer:
Bently Nevada
Dimensions:
119x4x4.6cm
Weight:
0.36kg
Country of Origin: :
United States
Description:
330851-02-000-066-10-00-00 Bently Nevada 3300 XL 25 mm Proximity Probe

Inquiry now

Mfr. Part Number:	330851-02-000-066-10-00-00

Manufacturer:	Bently Nevada

Description:	330851-02-000-066-10-00-00 Bently Nevada 3300 XL 25 mm Proximity Probe In stock ready to ship

Full Description:	Product No. : 330851-02-000-066-10-00-00 Product type : 3300 XL 25 mm Proximity Probe Made in U.S.A

Detailed Parameters:

0 5 0 = 50 mm
1 0 1.0 metre (3.3 feet)
0 0 No Armor
0 0 No Approvals

The 3300 XL 25 mm Transducer System consists of a separate 25 mm probe, an extension cable, and a 3300 XL 25 mm Proximitor® Sensor. The 0.787 V/mm (20 mV/mil) output gives this system a linear range of 12.7 mm (500 mil). Based on this linear range, the 3300 XL 25 mm Transducer System is suitable for measuring differential expansion (DE) on mid-size to large steam turbine generators caused by the difference in growth rates between the turbine rotor and the machine stator (casing).
Measuring Differential Expansion(DE)
The Differential Expansion measurement is made by two proximity transducers observing a collar or ramp some distance from the thrust bearing. Typical transducer mounting arrangements are:
• Two transducers observing the same side of a collar.
• Two complementary input transducers observing opposite sides of a collar, effectively doubling the measurable DE range.
