330801-28-04-105-00-02 | Bently Nevada PROXPAC XL Proximity Transducer

Description

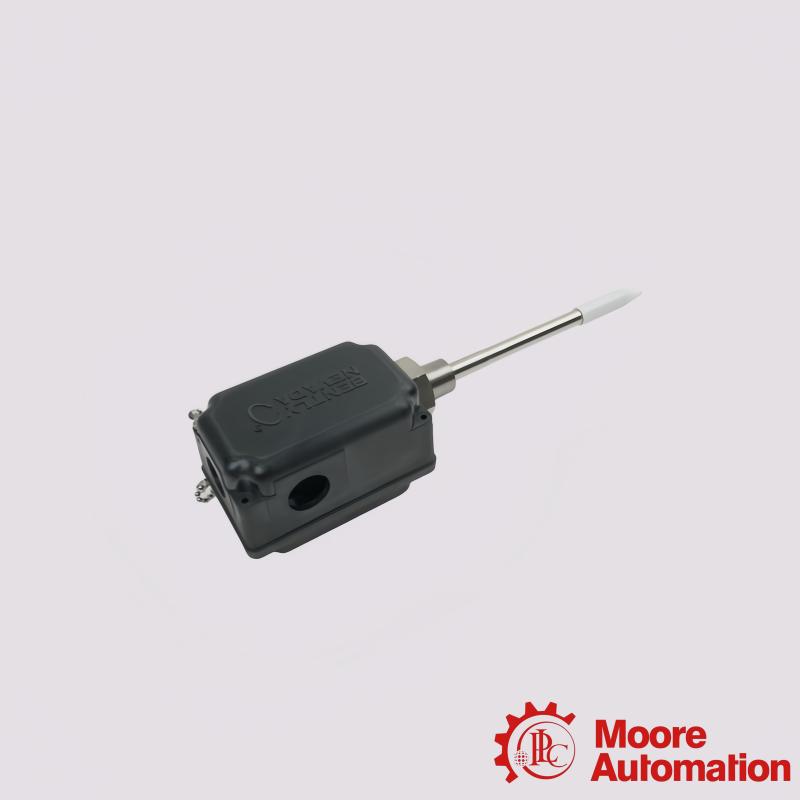

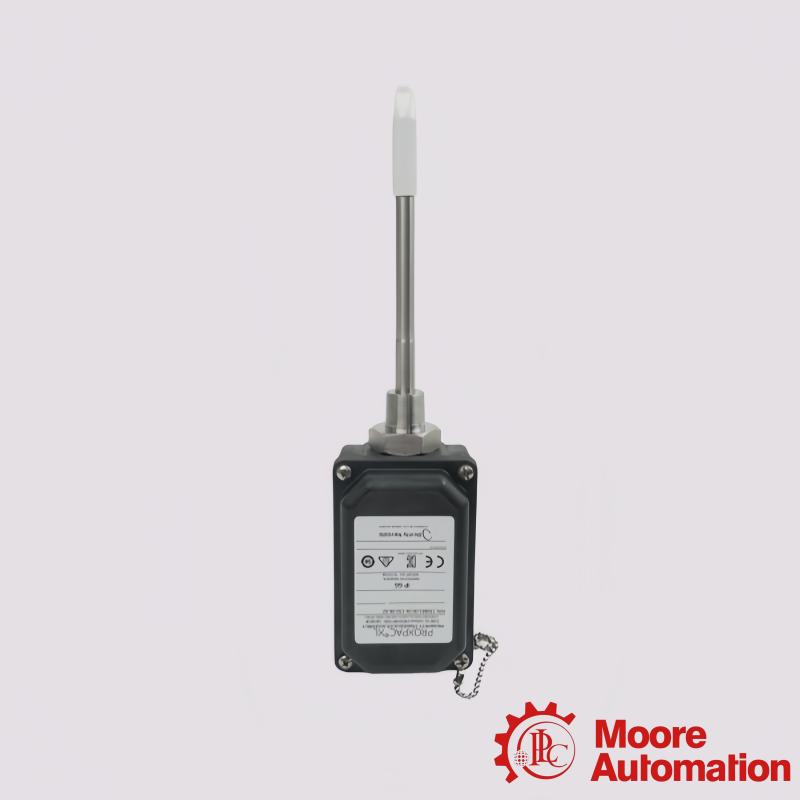

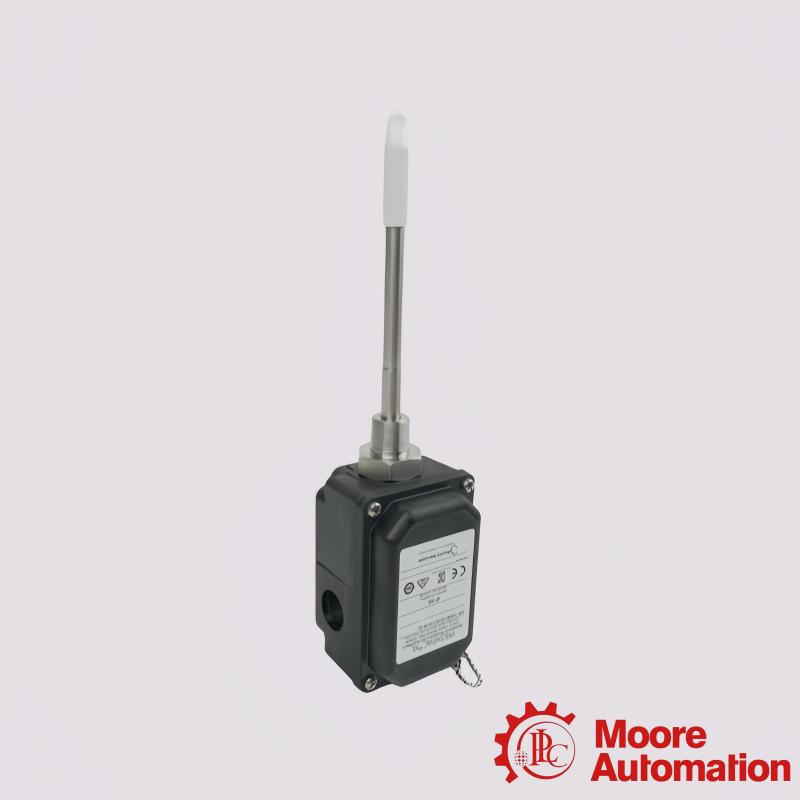

Bently Nevada 330801-28-04-105-00-02 is a PROXPAC XL Proximity Transducer that incorporates a 3300 XL 8 mm proximity probe and an integrated Proximitor Sensor into a single, self-contained housing. Constructed from Polyphenylene Sulfide (PPS) thermoplastic reinforced with glass and conductive fibers, the housing provides resistance to chemical erosion and effectively dissipates electrostatic charges. This assembly features a 40 mm standoff adapter and is configured with a 105 mm (4.1 inches) probe penetration depth. It utilizes 3/4-14 NPT mounting threads and is supplied without additional fittings, including two plugs and two washers as standard.

Parameter

A: Probe and Approvals Option
28 3300 XL 8 mm probe with Multiple Approvals
B: Standoff Adapter Option (B Dimension)
04 Minimum length:40mm
C: Probe Penetration Option (C Dimension)
105 Minimum length:105mm
D:Fittings Option
00 No fittings; two plugs and two washers
E: Mounting Thread Option
02 3/4-14 NPT mounting threads

Frequently asked questions

Does the 330801-28-04-105-00-02 require an external Proximitor Sensor?
No. it features an integrated Proximitor Sensor built directly into the housing cover, eliminating the need for an external sensor and extension cable.

What is the probe penetration depth for the 330801-28-04-105-00-02?
A probe penetration depth of 105 mm from the mounting surface to the probe tip.

Can the 330801-28-04-105-00-02 be adjusted while the machine is running?
Yes.It allows for external probe adjustment and replacement without machinery shutdown, supporting continuous operation.

Application areas:
OEM Mechanical Integration: Centrifugal air compressors and small process gas compressors.

Oil & Gas: Radial vibration and axial position monitoring in refineries and petrochemical plants.

Power Generation: Displacement monitoring for steam turbines and high-speed pumps.

Water & Wastewater Treatment: Monitoring critical high-pressure pumps and large aeration blowers.
