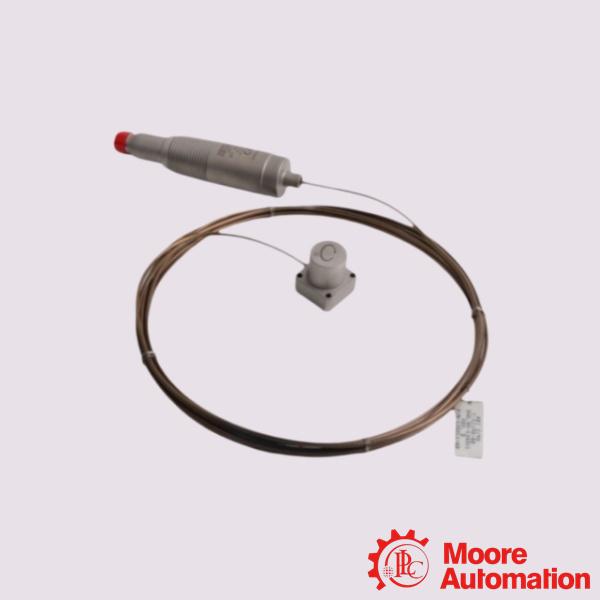

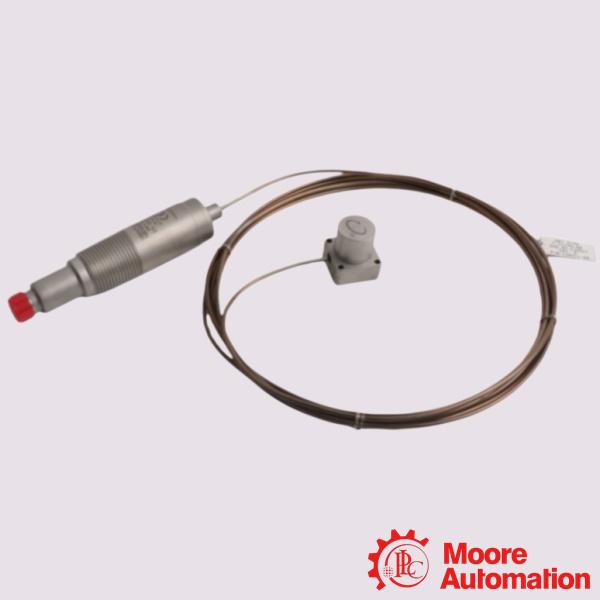

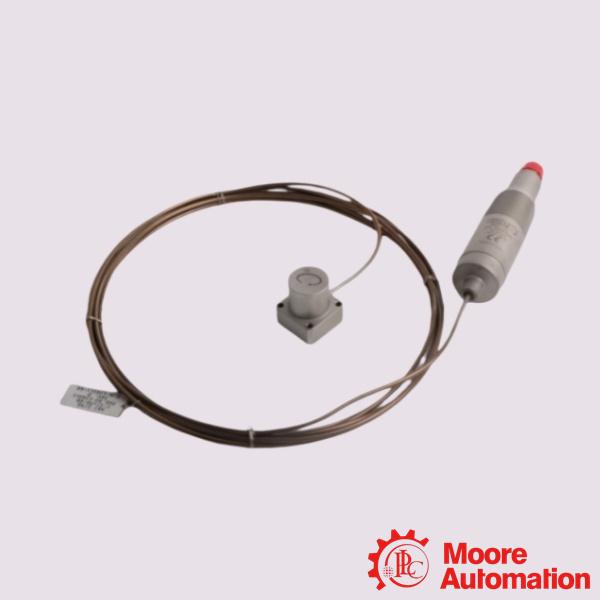

Bently Nevada 330752-25-CN High Temperature Velomitor System
| Mfr. Part Number: |
330752-25-CN |
| Manufacturer: |
Bently Nevada |
| Description: | Bently Nevada 330752-25-CN High Temperature Velomitor System |
| Full Description: |
|
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The 330752-25-CN High Temperature Velomitor System sensor head and integral cable are designed for high temperature environments. This enables you to mount the sensing head on surfaces with temperatures up to +400°C (+752°F).To accomplish this, the transducer design segregates the sensing element from the signal conditioning electronics.
The two are permanently connected using an integrated cable. The integrated cable eliminates connectors which are a significant source of transducer failures.The cable enables you to position the signal conditioning electronics in a cooler location. The internal electronics withstands temperatures of 55°C to +121°C (-67°F to +250°F). The integrated design makes it possible to capture machinery performance data comparable to other Bently Nevada Velomitor transducers, but at significantly higher temperatures.
Application:
Power generation industry: Monitor the absolute vibration of the casing for gas turbines and steam turbines in the high-temperature areas of the units.
Petroleum, petrochemicals and natural gas: High-speed cracking gas compressors in natural gas liquefaction (LNG) plants, high-pressure units for hydrogenation and desulfurization.
Metallurgy and steel mills: Blast furnaces' blowers, high-load transmission gearboxes for hot rolling/cold rolling units, large exhaust fans in smelting plants.
Internal combustion engines and boilers: High-power internal combustion engines for ships or large-scale distributed power generation, industrial boilers.
Frequently Asked Questions (FAQ)
Q:What is the Bently Nevada 330752-25-CN system?
A:The Bently Nevada 330752-25-CN is a High Temperature Velomitor System designed for vibration velocity measurement in extreme temperature environments.
Q:What is the transverse sensitivity of Bently Nevada 330752-25-CN?
A:The transverse sensitivity of the Bently Nevada 330752-25-CN is less than 5% of sensitivity.
Q:What is the shock survivability of Bently Nevada 330752-25-CN?
A:The Bently Nevada 330752-25-CN can withstand 24,535 m/s² (2500 g) peak shock.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number: 330752-25-CN |
|
Length Option(AA) |
25 2.5 meters |
|
Approvals(BB) |
CN Multiple Approvals (CSA, ATEX, and IECEx) |
|
Sensitivity |
5.7 mV/mm/s (145 mV/in/s) ±5% |
|
Frequency Response |
15 to 2000 Hz |
|
Transverse Sensitivity |
Less than 5% of Sensitivity |
|
Amplitude Linearity |
±2% to 152 mm/s (6 in/s) peak |
|
Mounted Resonant Frequency |
Greater than 5 kHz |
|
Output Bias Voltage |
-12 ±2.0 VDC |
|
Shock Survivability |
24,535 m/s² (2500 g) peak |
|
Relative Humidity |
Up to 100% non-submerged |
|
