in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
114.5x2.5x2cmWeight:
0.16kgCountry of Origin: :
USADescription:

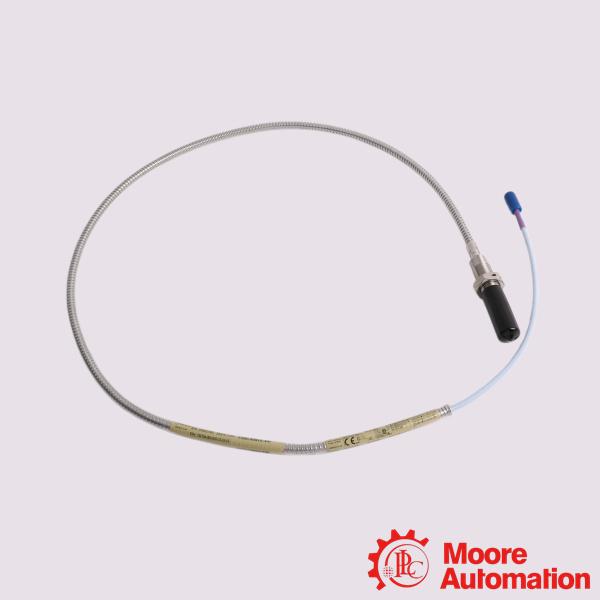

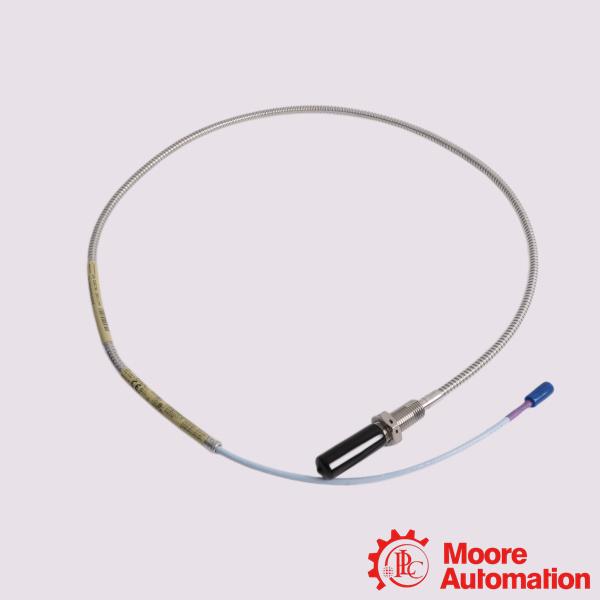

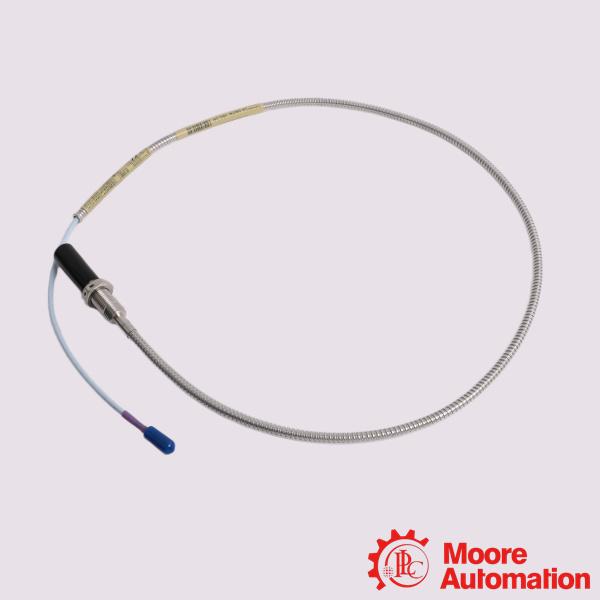

Bently Nevada 330704-000-070-10-01-CN 3300 XL 11 mm Proximity Probes
| Mfr. Part Number: |
330704-000-070-10-01-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 11 mm Proximity Transducer System has a 3.94
V/mm (100 mV/mil) output for non-contacting vibration and
displacement measurements on fluid film bearing machines. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330704-000-070-10-01-CN is a specific part number variant of the 3300 XL 11 mm Proximity Probe series, commonly deployed for non-contacting industrial vibration and machinery displacement monitoring.The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated
version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.
Application:
Offshore Drilling Platforms: Tracks critical shaft displacement on main power generation units under harsh maritime conditions.
Refineries & Petrochemical Plants: Deployed on high-speed hydrocarbon pumps, large gas crackers, and process mixers.
Steam & Gas Turbines: Tracks thermal expansion, high-speed rotor vibration, and structural thrust position.
Boiler Feed Pumps: Monitors rotational stability and manages alignment errors in high-energy water systems.
Frequently Asked Questions (FAQ)
Q:Is this probe model armored against fluid leaks?
A:No. The -01 suffix designates a standard unarmored cable jacket configuration. If your operating machinery requires extreme environmental protection or submergence in aggressive chemicals, you should look for variants utilizing the -02 (armored cable) option.
Q:What is the typical gap voltage setting for installation?
A:During installation, the sensor must be positioned to operate within its linear range. For the 3300 XL family, a normal gap voltage of approximately −9 V DC to −11 V DC is expected when the target face is perfectly centered relative to the probe.
Q:Why choose an 11 mm probe over a standard 8 mm probe?
A:The 11 mm probe features a wider tip diameter, which provides a longer linear measurement range. It allows for accurate tracking on machines where large shaft movements or thermal expansion push the limits of smaller 8 mm sensors.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330704-000-070-10-01-CN |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
70 mm |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Output resistance |
50 Ω |
|
Standard DSL range |
Less than ±0.10 mm (±4 mils). |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 304 stainless steel (SST). |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
