Product Description:

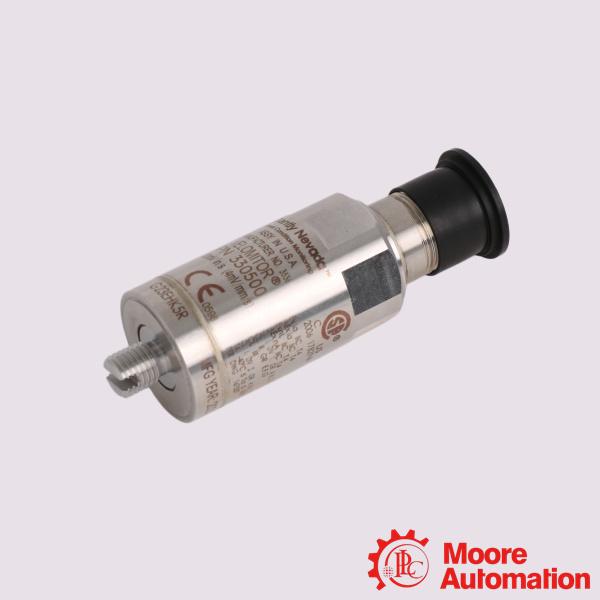

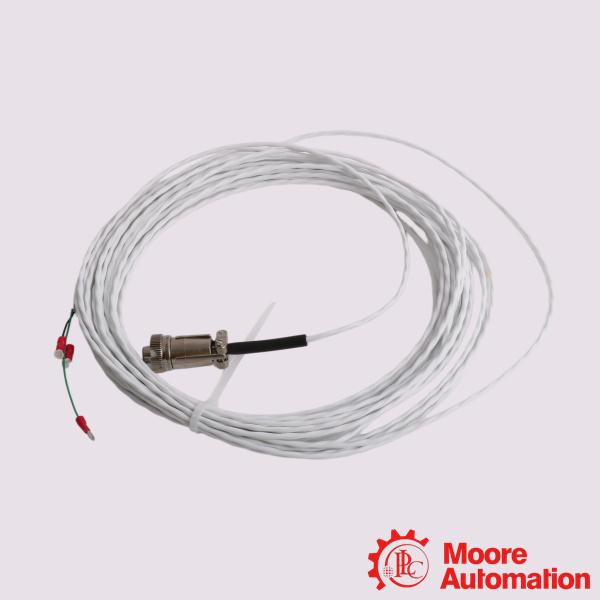

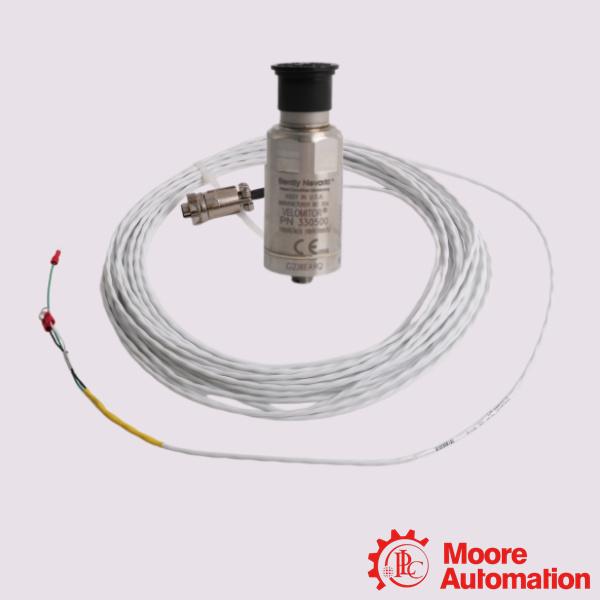

The Bently Nevada 330500-02-CN is a rugged Velomitor Piezo-Velocity Sensor paired with the 9571-32 two-conductor twisted, shielded interconnect cable. This setup measures absolute bearing housing, casing, or structural vibration on critical industrial machinery.Bently Nevada Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design. Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation.

Frequently Asked Questions (FAQ)

Q:What type of machinery is this sensor best suited for?

A:It is ideal for machines with rolling-element bearings where velocity-based vibration tracking is most efficient. Since it uses solid-state electronics with no moving parts, it resists mechanical wear and can be mounted at any physical orientation (vertical, horizontal, or angled).
Q:Can the 9571-32 cable be used with any velocity sensor?
A:No. the 9571 series cable is not for use with the 21128 Velocity Transducer Housing. It is designed specifically to match the 2-pin Mil-C-5015 connector of the 330500 Velomitor.

Q:What is the proper installation torque for this sensor?
A:When mounting the M8 adapter option, the recommended maximum mounting torque is 32 to 46 kg-cm (24 to 40 in-lb). Exceeding this limit can damage the threads or distort the internal piezoelectric element, leading to false tracking values or loss of monitoring.
