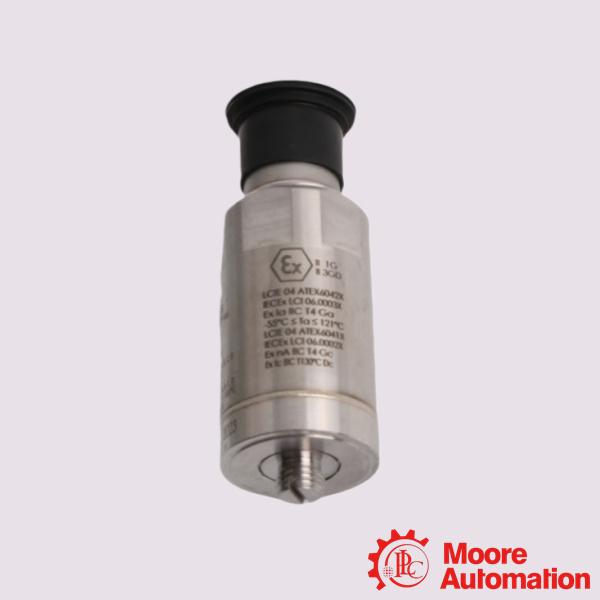

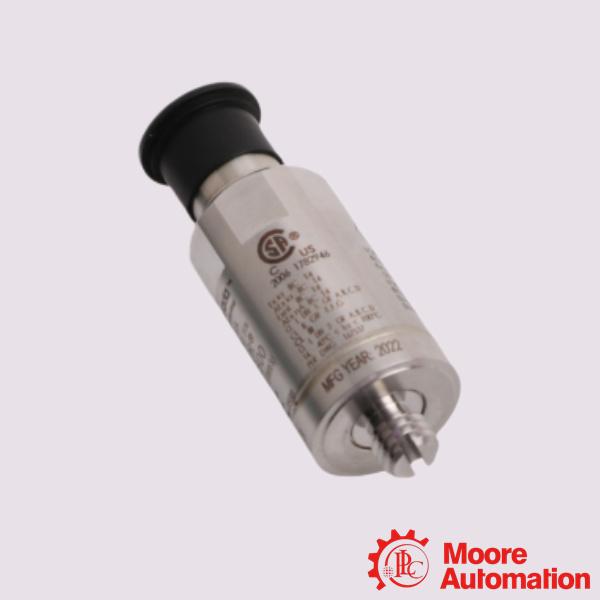

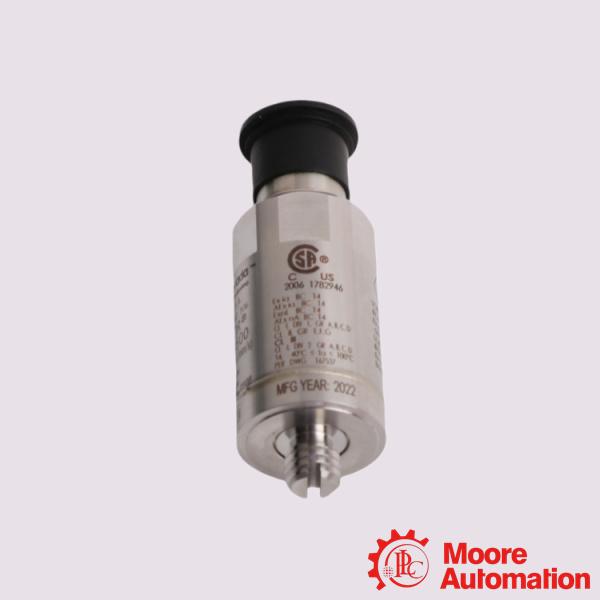

330500-00-CN | Bently Nevada Velomitor Piezo-velocity Sensor

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
7.5x2.5x2.5cm
Weight:
0.15kg
Country of Origin: :
USA
Description:
Bently Nevada 330500-00-CN Velomitor Piezo-velocity Sensor

Inquiry now

Mfr. Part Number:	330500-00-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330500-00-CN Velomitor Piezo-velocity Sensor

Full Description:	The 200350 Accelerometers are general purpose, case-mounted seismic transducers designed Card

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

Bently Nevada 330500-00-CN Velomitor Piezo-Velocity Sensor is primarily used for casing vibration monitoring on heavy industrial rotating machinery that utilizes rolling element bearings Bently Nevada™ Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design. Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation.

Application:

Industrial Pumps: Centrifugal and multistage pumps used in high-pressure fluid transfer.
Centrifugal & Axial Compressors: Equipment where monitoring casing acceleration and velocity is crucial for gas processes.
Electric Motors: High-horsepower motors driving critical plant infrastructure.
Gearboxes & Fans: Industrial fan assemblies and speed reducers prone to structural fatigue.

Frequently Asked Questions (FAQ)

Q:Can this sensor be mounted at an angle?

A:Yes. Because the 330500 relies on solid-state electronics and has no moving parts (unlike traditional moving-coil velocity meters), it suffers no mechanical degradation from orientation. It can be safely mounted vertically, horizontally, or at any angle.
Q:What torque should be used during installation?
A:The recommended mounting torque is 24 to 40 in-lb (max 46 kg-cm). Proper torque ensures a flat frequency response and prevents false vibration signals due to a loose contact surface.

Q:What is the maximum permissible cable length?
A:The sensor can maintain strong signal integrity over extended runs up to a maximum cable length of 305 meters (1,000 feet). It is typically paired with the 02173006 cable series.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330500-00-CN
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-14% to +7.5% typical over the operating temperature range
Velocity Range	1270 mm/s (50 in/s) peak
Transverse Sensitivity	Less than 5% of sensitivity
Amplitude Linearity	±2% to 152 mm/s (6 in/s) peak
Dynamic Output Impedance	Less than 2400 Ω
Grounding	Case isolated
Operating Temperature Range	-55°C to 121°C (-67°F to 250°F)
Shock Survivability	5,000 g peak, maximum
Mounting Thread Adaptor Option	No adapter
