in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.3x1.1x58cmWeight:
0.02kgCountry of Origin: :
USADescription:

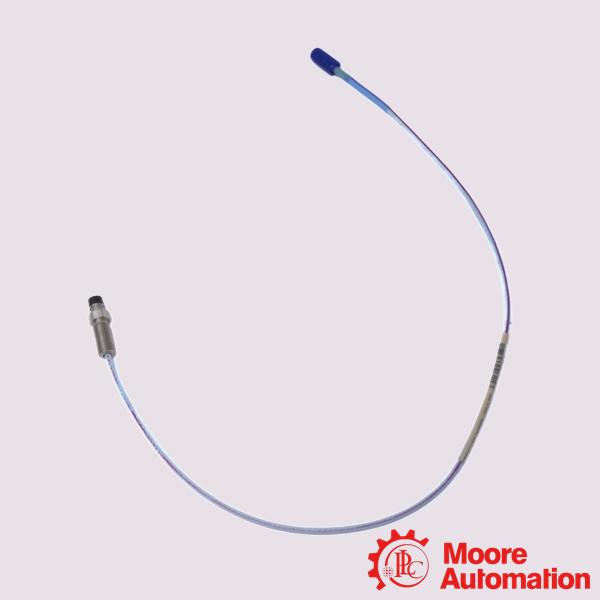

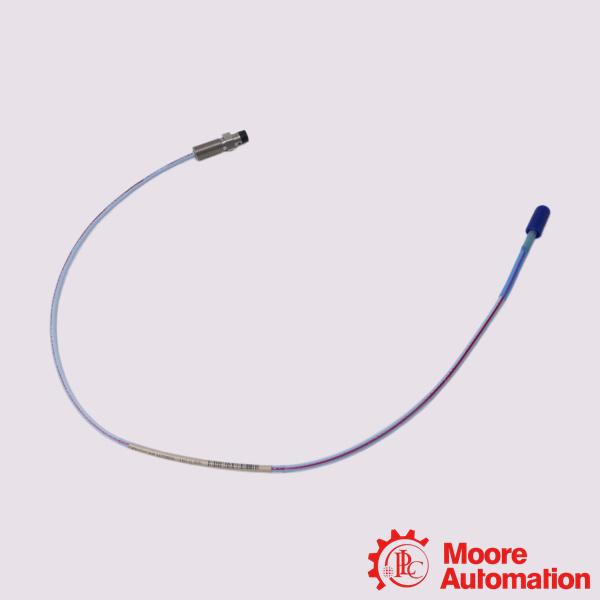

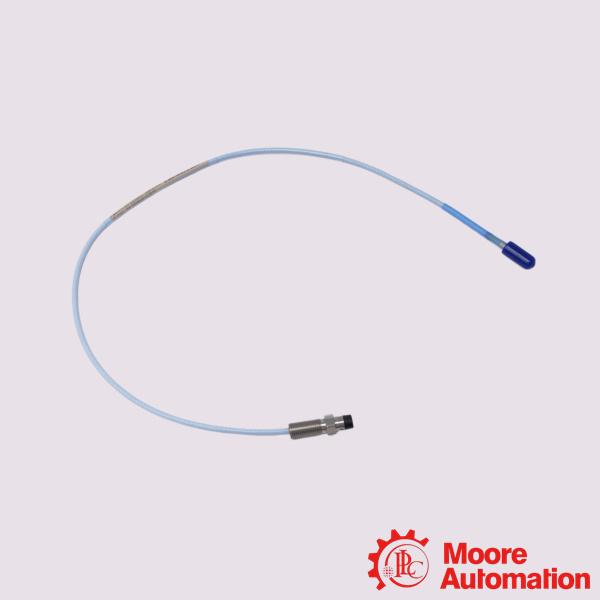

Bently Nevada 330195-02-12-50-00 3300 XL 8 mm Extended Temperature Range Proximity Probes
| Mfr. Part Number: |
330195-02-12-50-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL 8 mm system delivers the most advanced
performance in our eddy current proximity transducer
systems. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330195-02-12-50-00 is an Extended Temperature Range (ETR), 3/8-24 UNF threaded, reverse-mount 3300 XL 8 mm Proximity Probe for critical machinery asset protection. It tracks continuous vibration, thrust position, and speed metrics within high-stress industrial environments.The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Application:
Steam and Gas Turbines: Tracks rotor dynamic vibration and axial thermal expansion.
Centrifugal and Axial Compressors: Monitors radial shaft displacement under high-pressure aerodynamic loads.
Large Industrial Pumps: Measures shaft whip and position offsets in heavy-duty oil, water, or chemical transfer lines.
Generators and Motors: Provides raw signal data to detect imbalance, misalignment, or bearing degradation.
Frequently Asked Questions (FAQ)
Q:What is the probe tip material
A:The tip is constructed from Polyphenylene Sulfide (PPS) for chemical resistance, but extreme pH environments should still be avoided.
Q:What equipment can this probe monitor?
A:It is regularly deployed on steam and gas turbines, centrifugal compressors, large industrial pumps, and electric generators.
Q:What makes the reverse mount design unique?
A:It allows the probe to be installed from the outside or opposite side of the machine housing, making adjustments easier in tight spaces.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330195-02-12-50-00 |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Agency Approval Option |
Not required |
|
Output Resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST) |
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
Armor (optional on both) |
Flexible AISI 302 or 304 SST with FEP outer jacket. |
|
