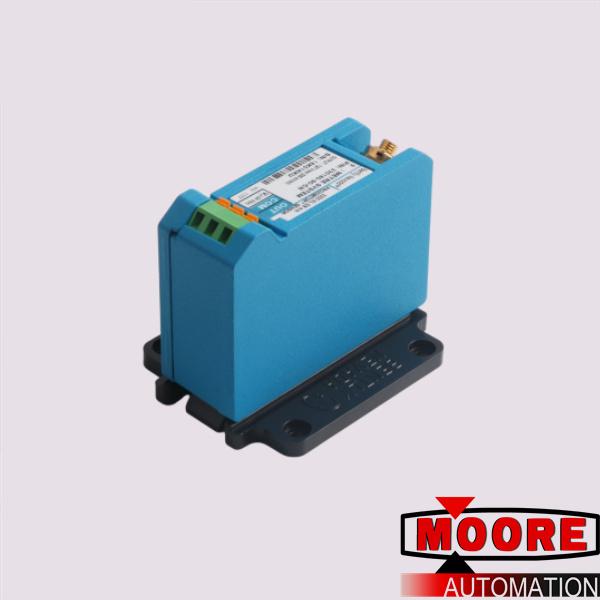

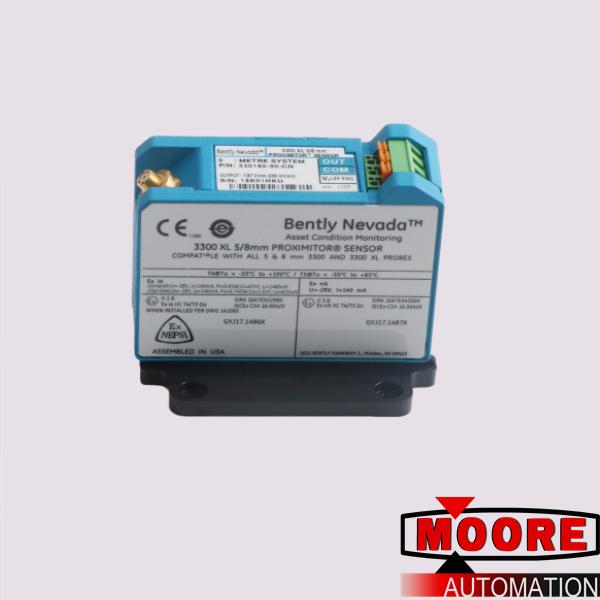

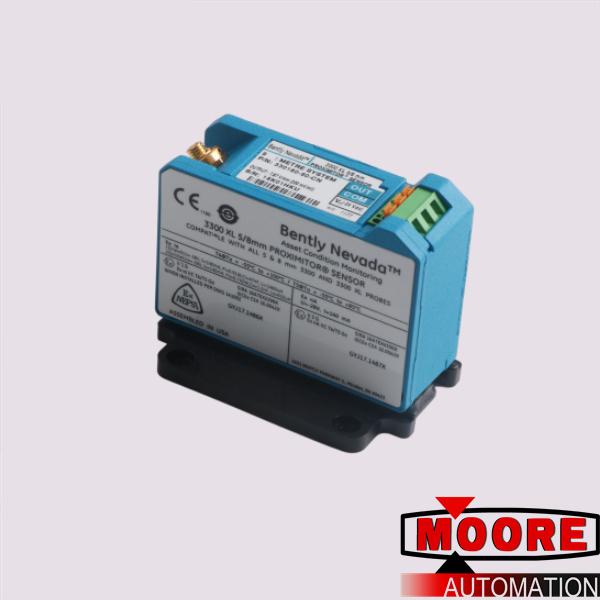

330180-90-CN | Bently Nevada | 3300 XL Proximitor Sensor

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.8cm*3.5cm*7cm
Weight:
0.22kg
Country of Origin: :
United States
Description:
Proximitor Sensor

Inquiry now

Mfr. Part Number:	330180-90-CN

Manufacturer:	Bently Nevada

Description:	330180-90-CN \| Bently Nevada \| 3300 XL Proximitor Sensor In stock ready to ship

Full Description:	The GE / Bently Nevada 3300 XL 8mm Proximity Transducer System consists of one 3300 XL 8mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor

Sales manager: Tiffany Guan plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Product Describe:

Manufacturer : Bently Nevada
Product No. : 330180-90-CN
Product type : 3300 XL Proximitor Sensor
This product is a replacement for 330100-90-05 |3300 Proximitor Sensor
Made in U.S.A
90 - Total Length and Mounting Option : 9.0 metres (29.5 feet) system length, panel mount
CN - Agency approval option : Approvals country specific (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)
Proximitor® Sensor Input : Accepts one noncontacting 3300- series 5 mm, 3300 8 mm or 3300 XL 8 mm Proximity Probe and Extension Cable.
Proximitor® Sensor Material : A308 aluminum
Operating Temperature : -51 °C to +100 °C (-60 °F to +212 °F)
Storage Temperature : -51 °C to +105 °C (-60 °F to +221 °F)
Weight : 0.246 Kg
Shipping Weight : 1.5 Kg

The GE / Bently 3300 XL 5/8mm Proximitor Sensor is compatible with all 5 and 8 mm 3300 and 3300 XL probes. The 3300 XL Proximitor Sensor incorporates numerous improvements over previous designs. Its physical packaging allows you to use it in high-density DINrail installations.

You can also mount the sensor in a traditional panel mount configuration, where it shares an identical 4-hole mounting "footprint" with older Proximitor Sensor designs. The mounting base for either option provides electrical isolation and eliminates the need for separate isolator plates.

The three parts of the system must have consistent electrical lengths. The electrical length of the Proximitor probe plus the electrical length of the extension cable must equal the electrical length of the Proximitor.
