330104-02-25-10-02-00 | Bently Nevada 3300 XL 8 mm Proximity Transducer System

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.8x1.6x122cm
Weight:
0.18kg
Country of Origin: :
USA
Description:

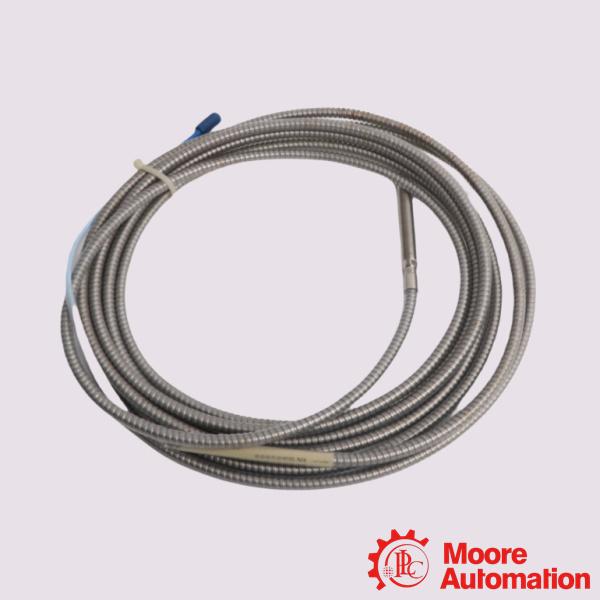

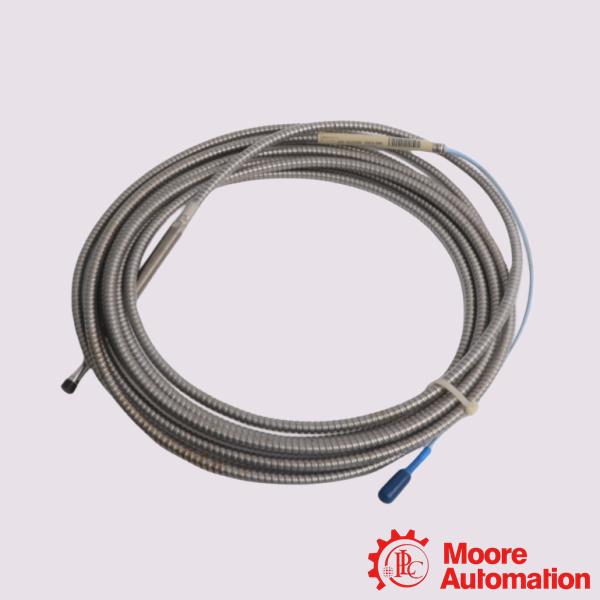

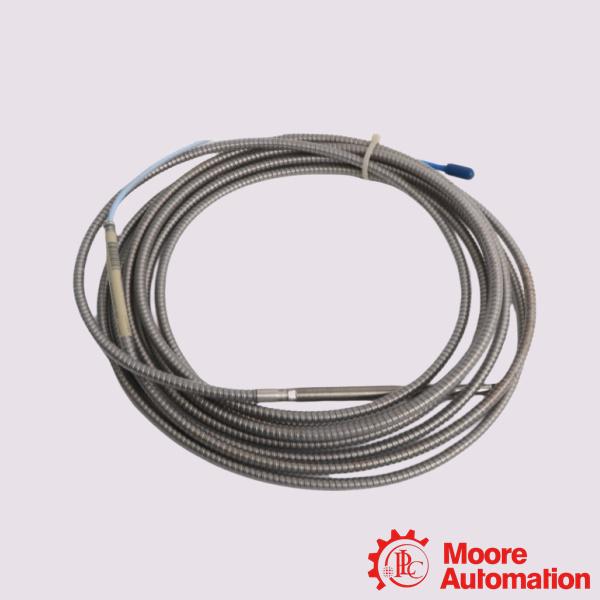

Bently Nevada 330104-02-25-10-02-00 3300 XL 8 mm Proximity Transducer System

Inquiry now

Mfr. Part Number:	330104-02-25-10-02-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330104-02-25-10-02-00 3300 XL 8 mm Proximity Transducer System

Full Description:	TheBently Nevada 330104-02-25-10-02-00 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 330104-02-25-10-02-00 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3

Application:

Mining & Heavy Manufacturing: Monitoring large-scale electric motors, gearboxes, and blowers subjected to high physical duress.
Petrochemical & Refining: Installed on critical process pumps, expanders, and cooling tower fans where equipment downtime stops production.
Oil & Gas (Upstream & Downstream): Deployed on critical turbomachinery such as multi-stage centrifugal compressors, process gas compressors, and high-pressure water injection pumps.
Power Generation:Used on large-scale steam turbines, gas turbines, and generators to detect catastrophic shaft displacement or imbalance.

Frequently Asked Questions (FAQ)

Q:What is the core function of this probe?
A: The sensor utilizes non-contact eddy-current technology to track dynamic shaft vibration, static axial position, and speed/Keyphasor metrics on fluid-film bearing machinery.
Q:What are the primary electrical requirements?
A:It must interface with a compatible Bently Nevada Proximitor Sensor. The overall system operates on a negative DC voltage range between -17.5 Vdc and -26 Vdc, using a standard scale factor of 200 mV/mil (7.87 mV/µm).

Q:What is the minimum bend radius for the armored cable?
A:The integrated stainless steel armor protects the internal triaxial cable but limits flexibility. The minimum safe cable bend radius is 25.4 mm (1.0 inch).

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330104-02-25-10-02-00
Unthreaded Length Option	20 mm
Overall Case Length Option	250 mm
Total Length Option	1.0 meter (3.3 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	Not required
