330104-00-04-90-02-00 | Bently Nevada 3300 XL 8 mm Proximity Probes

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.7x117.5x1.7cm
Weight:
0.16kg
Country of Origin: :
USA
Description:

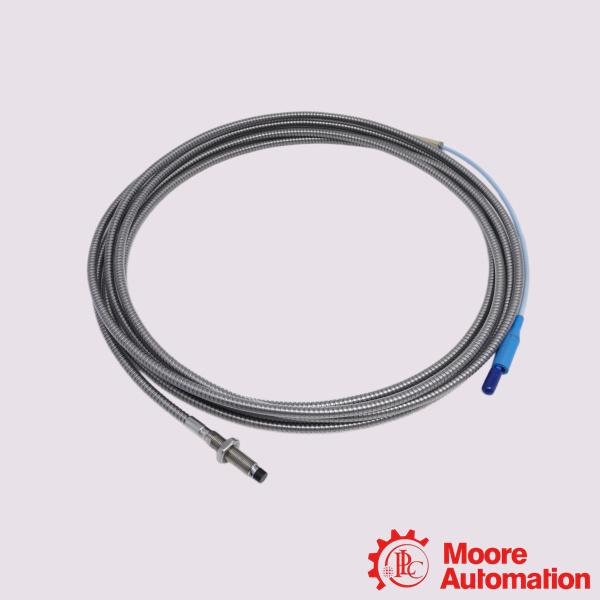

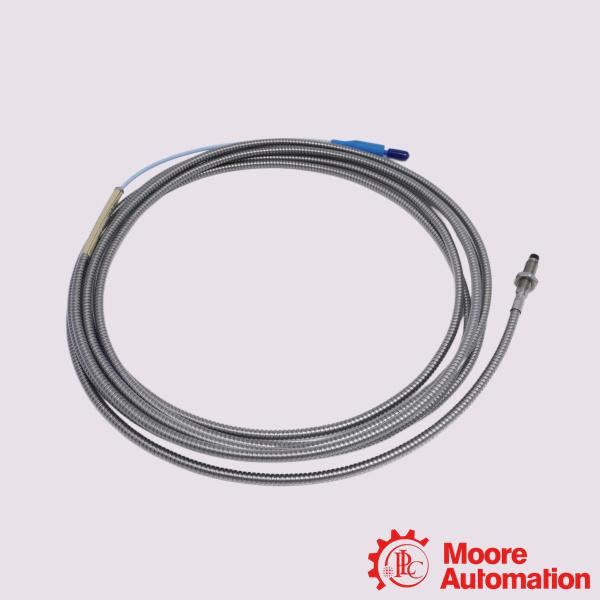

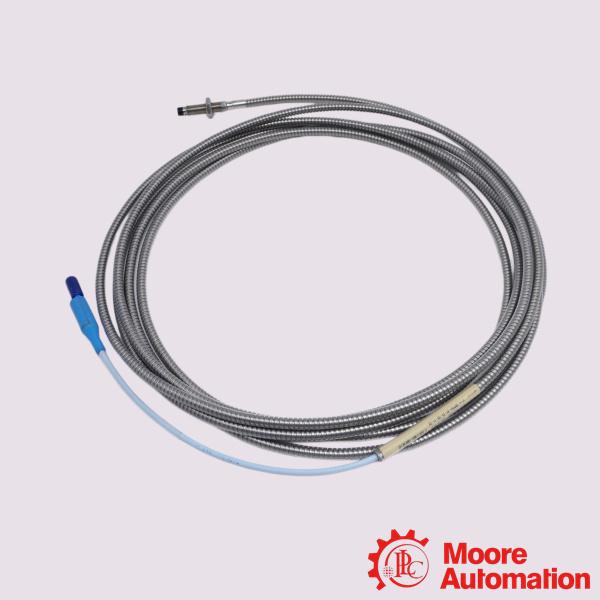

Bently Nevada 330104-00-04-90-02-00 3300 XL 8 mm Proximity Probes

Inquiry now

Mfr. Part Number:	330104-00-04-90-02-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330104-00-04-90-02-00 3300 XL 8 mm Proximity Probes

Full Description:	The 330104-00-04-90-02-00 3300 XL 8 mm Proximity Probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330104-00-04-90-02-00 3300 XL 8 mm Proximity Probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.The 3300 XL probe reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body.

Application:

Steam and Gas Turbines: Tracking continuous shaft vibration and critical thrust displacement during high-stress startup and operations.
Hydroelectric Turbines: Monitoring alignment variations and low-frequency structural movement.
Generators and Exciters: Guarding large-scale electrical generating rotors against bearing degradation
Industrial Fans and Blowers: Minimizing unscheduled downtime in critical factory ventilation and exhaust infrastructure.

Frequently Asked Questions (FAQ)

Q:What does the "90" option mean for system matching?
A:The "90" option dictates a 9.0-metre total length for the probe's integrated cable. Because proximity probe systems rely on precise electrical length matching to maintain a calibrated output scale factor, this probe must be connected directly to a 9.0-metre Proximitor Sensor without using any intermediate extension cables.
Q:Can this probe be mounted into any thread type?
A:No. The 330104 series is exclusively machined with an M10 x 1 metric thread. For applications using English threads (3/8-24 UNF), you must source the equivalent 330101 series probe instead.

Q:How do I prevent crosstalk interference?
A:If mounting multiple eddy current probes close to one another on a machine shaft, ensure you leave a baseline gap between probe heads. For radial vibration layouts, maintain at least 38 mm (1.5 inches) of clear separation between probe tips to restrict signal crosstalk down below 50 mV.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330104-00-04-90-02-00
Unthreaded Length Option	0 mm
Overall Case Length Option	40 mm
Total Length Option	9.0 meters (29.5 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	Not required
Output Resistance	50 Ω
Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft) typical
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
