330103-00-06-05-02-02 | Bently Nevada 3300 XL 8 mm Proximity Transducer System

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
56×1.5×1.2CM
Weight:
0.06KG
Country of Origin: :
USA
Description:

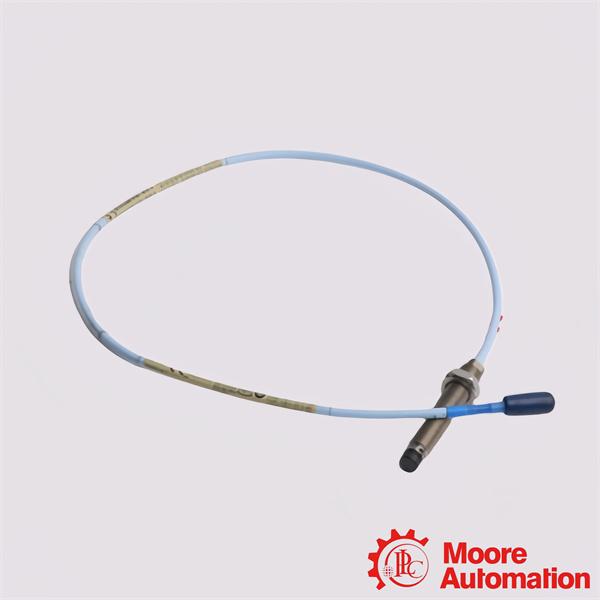

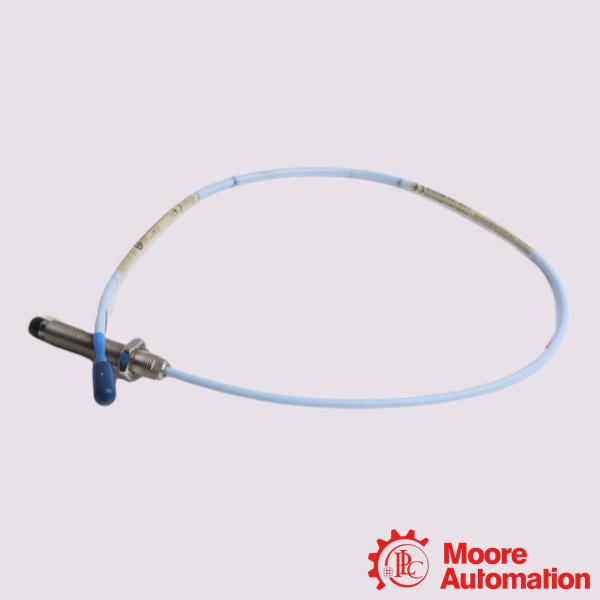

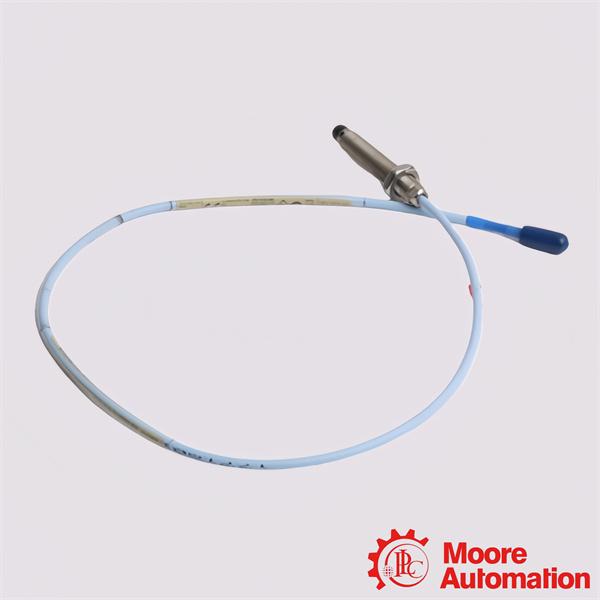

Bently Nevada 330103-00-06-05-02-02 3300 XL 8 mm Proximity Transducer System

Inquiry now

Mfr. Part Number:	330103-00-06-05-02-02

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330103-00-06-05-02-02 3300 XL 8 mm Proximity Transducer System

Full Description:	The 330103-00-06-05-02-02 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330103-00-06-05-02-02 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.

Application:

Oil & Gas / Petrochemical: Mounted within centrifugal compressors, axial compressors, and high-pressure process gas pumps to avert catastrophic mechanical breakdowns.
Mining & Heavy Manufacturing: Placed on critical gearboxes, conveyors, and auxiliary rotating machinery.
Water & Wastewater Treatment: Used on high-capacity water distribution pumps and large electric motors.
Power Generation: Installed on large steam turbines, gas turbines, and generators to track critical high-speed rotor metrics.

Frequently Asked Questions (FAQ)

Q:What is the standard target material for this probe?
A:The system is factory-calibrated by default to AISI 4140 steel. Measuring alternative metals (such as aluminum or stainless steel) alters the eddy-current properties and requires a custom-calibrated Proximitor sensor.
Q:What is the expected electrical output of this sensor?
A:The system outputs a linear analog voltage with an Average Scale Factor (ASF) of 7.87 V/mm (200 mV/mil) over its 2.0 mm (80 mil) linear sensing range.

Q:Can I tighten the ClickLoc connectors with pliers?
A:No separate matching or bench calibration is required. The 3300XL 8mm system supports complete interchangeability of the probe, extension cable, and Proximitor sensor. Factory default calibration is to AISI 4140 steel target material; calibration to other target materials requires special ordering.The probe features a built-in Viton O-ring seal to hold back differential pressure between the tip and the casing. However, Bently Nevada does not pressure-test standard probes prior to shipment; custom testing must be ordered if liquid or gas containment is a critical concern.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number:330103-00-06-05-02-02
Unthreaded Length Option	0 mm
Overall Case Length Option	60 mm
Total Length Option	0.5 meter (1.6 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
