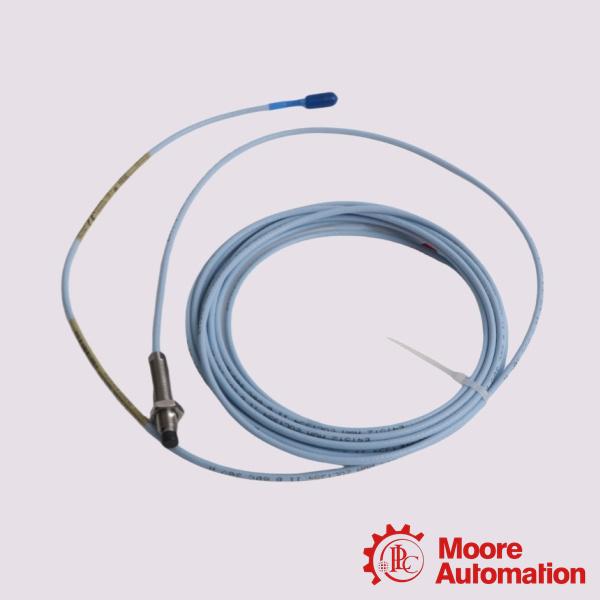

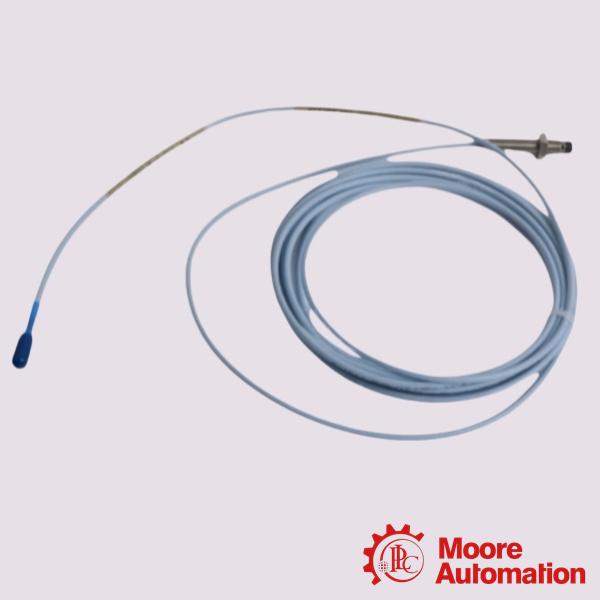

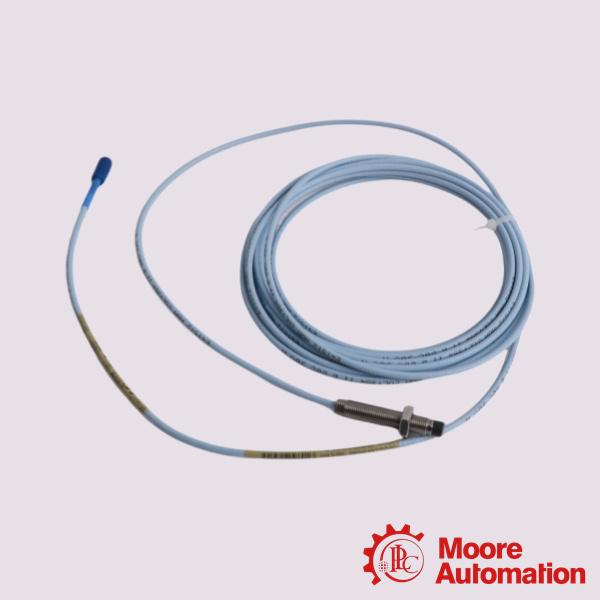

330103-00-05-50-02-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

Description

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Parameter

330103：3300 XL 8 mm Probe, M10 x 1 thread,without armor

A: Unthreaded Length Option
Minimum unthreaded length: 0 mm
B: Overall Case Length Option
Minimum case length: 50 mm
C: Total Length Option
50 5.0 meters (16.4 feet)
D: Connector and Cable-Type Option
02 Miniature coaxial ClickLoc connector, standard cable
E: Agency Approval Option
05 CSA, ATEX, IECEx  Approvals

Main Features
Using the M10 x 1 metric thread is the standard interface for manufacturing equipment in Asia and Europe.
The built-in cable has a length of up to 5.0 meters, and the probe can be directly connected to the preamplifier.
It has the standard gold-plated self-locking connection function and also adds a central adapter.
Multiple international explosion-proof certifications with high safety levels.
The probe head is molded together with the housing to ensure that the top of the probe will not fall off under the impact of high-pressure oil flow.

Frequently asked questions

What is the 330103-00-05-50-02-05?
330103-00-05-50-02-05 is a 3300 XL 8 mm Proximity Probes.

What is the warranty period for 330103-00-05-50-02-05?
A standard one-year warranty is typically offered for new and original items.

What connector type is used in Bently Nevada 330103-00-05-50-02-05?
The Bently Nevada 330103-00-05-50-02-05 uses a miniature coaxial ClickLoc connector with standard cable, offering secure connection and easy installation.

Application areas:
Oil and gas: Monitoring the operating conditions of ultra-low temperature compressors and expanders.
Traditional power and new energy:Monitoring the shaft vibration and displacement of domestically produced or European brand units.
Petrochemicals:Monitoring large pumps and fans in hydrogenation cracking, catalytic cracking and other facilities.
Metallurgy and heavy manufacturing:Monitoring the mechanical health status of large drive shafts in mines and cement plants.
High-performance test benches and research:Commonly used in aircraft engine test benches or compressor performance testing centers.
