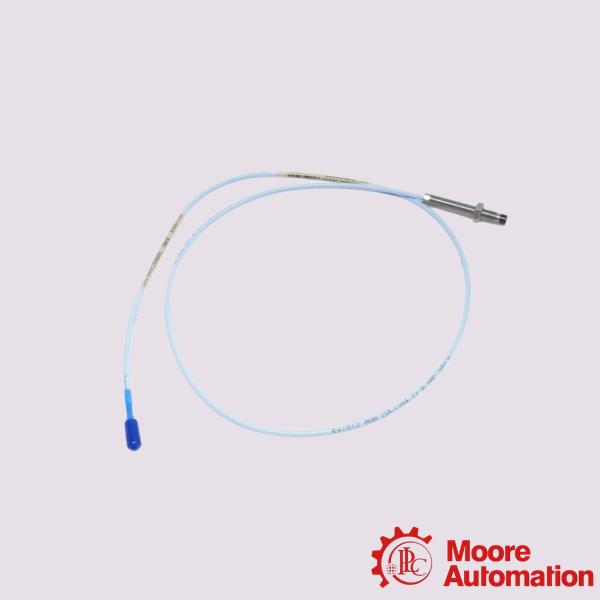

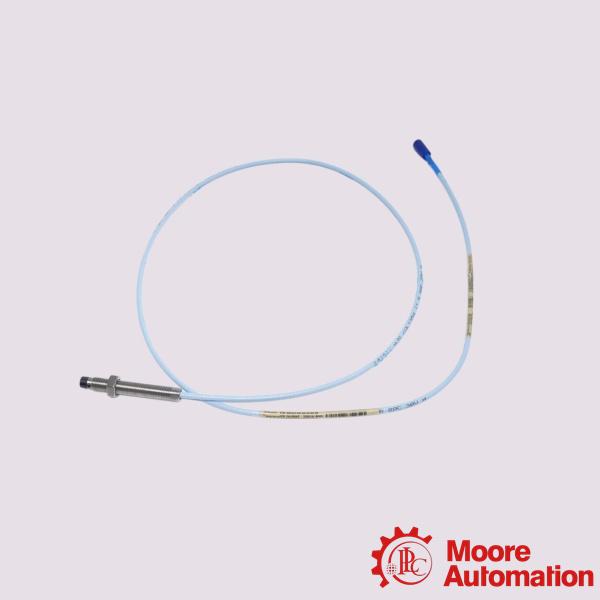

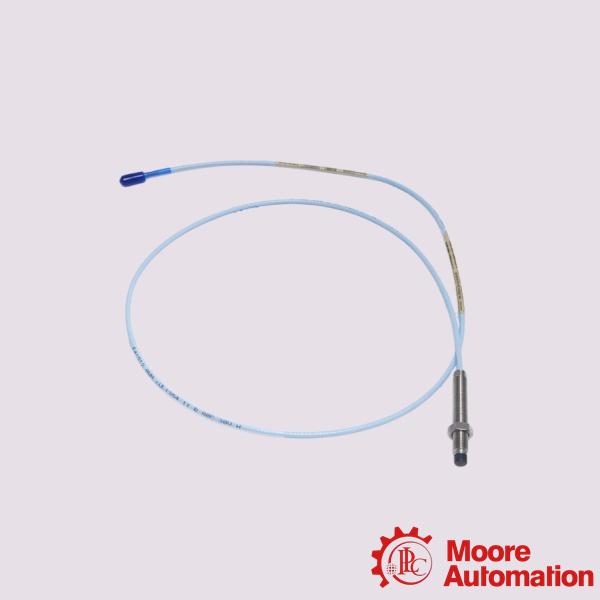

330102-00-83-50-02-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

Description

The 330102-00-83-50-02-05 is a member of the Bently Nevada 3300 XL 8 mm Proximity Transducer System family. The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Parameter

A: Unthreaded Length Option
Minimum unthreaded length: 00 mm
B: Overall Case Length Option
Minimum case length: 83 mm
C: Total Length Option
50: 5.0 meter (16.4 feet)
D: Connector and Cable-Type Option
02: Miniature coaxial ClickLoc connector, standard cable
E: Agency Approval Option
05: CSA, ATEX, IECEx  Approvals

Frequently asked questions

What is the total length of the 330102-00-83-50-02-05?
The 330102-00-83-50-02-05 has a total length of 5.0 meters (16.4 feet).

Is the 330102-00-83-50-02-05 used on fluid-film bearing machines?
The 330102-00-83-50-02-05 can be used for measurement tasks on fluid-film bearing machines.

What connector type is used on the 330102-00-83-50-02-05?
The 330102-00-83-50-02-05 is equipped with a miniature coaxial ClickLoc connector.

Application areas:
Petrochemical Plants: Installed in critical rotating equipment to support continuous process operation and machine condition observation.
Chemical Processing: Used in high-speed rotating machines such as centrifugal compressors, agitators, and industrial fans.
Oil and Gas: Applied in compressors, pumps, motors, and turbine machinery used in upstream, midstream, and downstream operations.

Power Generation: Applied in steam and gas turbines for continuous machinery condition monitoring and predictive maintenance.
