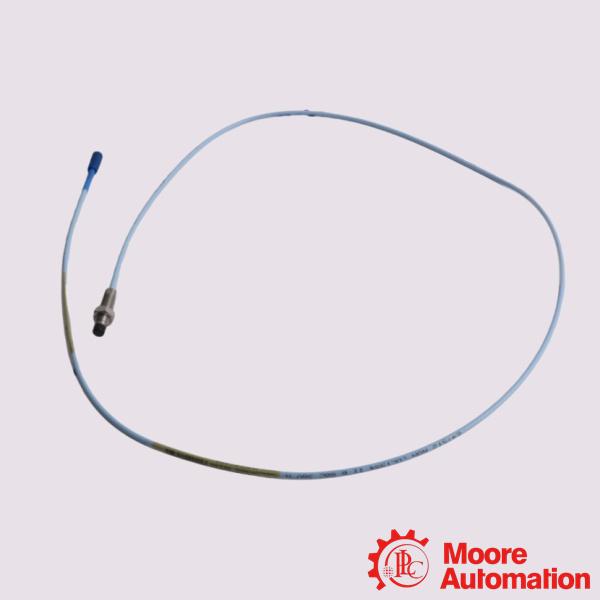

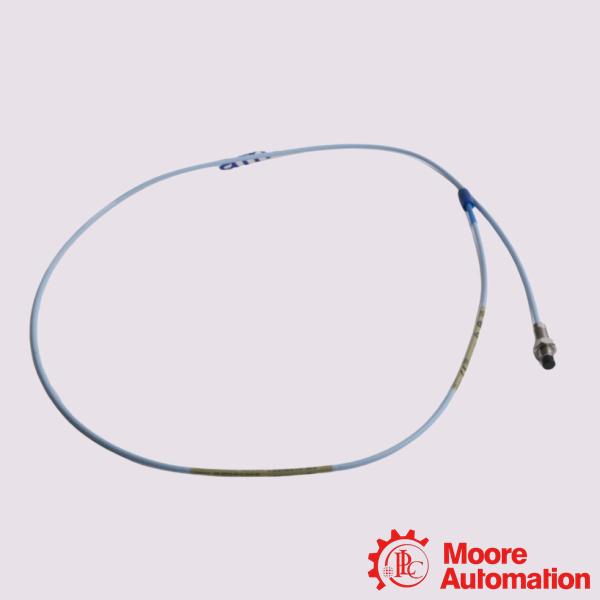

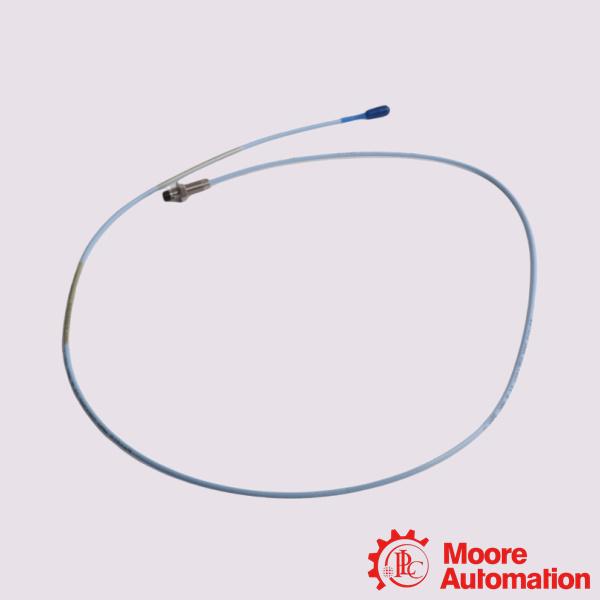

330101-00-46-10-02-05 | Bently Nevada 3300 XL 8 mm Proximity Probe

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
1.5x1.3x116cm
Weight:
0.05kg
Country of Origin: :
USA
Description:
Bently Nevada 330101-00-46-10-02-05 3300 XL 8 mm Proximity Probe

Inquiry now

Mfr. Part Number:	330101-00-46-10-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330101-00-46-10-02-05 3300 XL 8 mm Proximity Probe

Full Description:	The 330101-00-46-10-02-05 3300 XL 8 mm Proximity Probe provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 330101-00-46-10-02-05 3300 XL 8 mm Proximity Probe provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements

Application:

Power Generation: Used heavily on high-speed steam turbines, gas turbines, hydro-turbines, and large generator sets to monitor stability during load transitions.
Oil & Gas (Upstream & Downstream): Deployed on offshore drilling rigs, refinery processing units, and pipeline transport stations.
Petrochemical & Chemical Processing: Essential for tracking volatile fluid-handling equipment where machinery reliability prevents dangerous leaks and shutdowns.
Heavy Manufacturing & Mining: Applied to large-scale motor drives, air processing plants, steel rolling mills, and heavy-duty conveyor machinery.

Frequently Asked Questions (FAQ)

Q:What does the "without armor" specification mean?
A:The base part number 330101 signifies that the extension cable does not include an external flexible stainless steel armor jacket. This layout makes the probe lightweight, highly flexible, and easier to route through tight spaces or standard conduits where mechanical protection against sharp edges or high crush risks is not mandatory
Q:How do ClickLoc connectors work during installation?
A:The system utilizes proprietary gold-plated brass ClickLoc connectors. They do not require any specialized tools for assembly. Technicians simply tighten them finger-tight until an audible and tactile "click" registers, confirming a secure lock that prevents loosening from machine vibration.

Q:Can this probe be swapped out without recalibration?
A:Yes. All components within the 3300 XL series offer complete technical interchangeability. You can replace this probe with another identical model variant without undergoing tedious bench-calibration or matching procedures, vastly streamlining machinery maintenance routines.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330101-00-46-10-02-05
Unthreaded Length Option	0.0 in
Overall Case Length Option	4.6 in
Total Length Option	1.0 meter (3.3 feet)
Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	CSA, ATEX, IECEx Approvals
Output Resistance	50 Ω
Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft) typical
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
