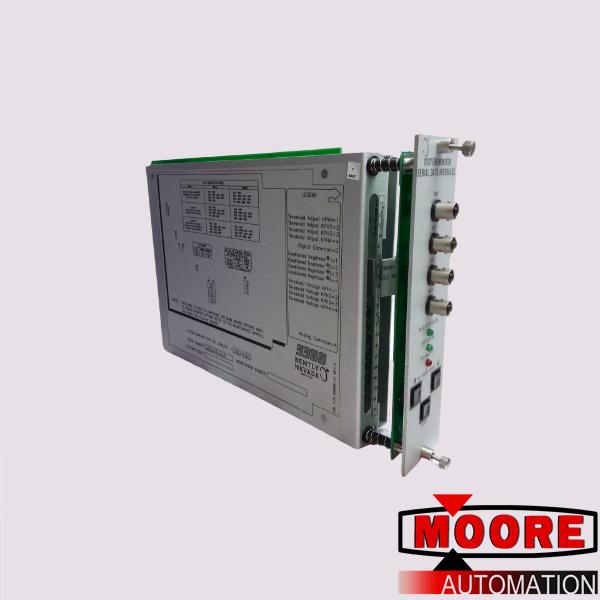

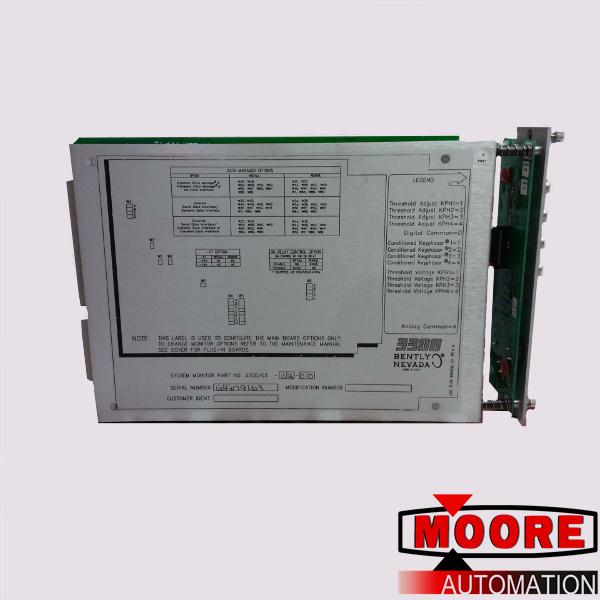

3300/03 | Bently Nevada system monitor module

Brand/ Manufacturer:
Bently Nevada
Dimensions:
5cm*20cm*33cm
Weight:
0.65kg
Country of Origin: :
United States
Description:
System Monitor Module

Inquiry now

Mfr. Part Number:	3300/03

Manufacturer:	Bently Nevada

Description:	Product Parameters: 3300/03 System Monitor Module In stock ready to ship

Full Description:	Since the original design of the 3300 monitoring system, the Serial Data Interface/Dynamic Data Interface (SDI/DDI) communication protocols have been added.

Sales manager: Tiffany Guan plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Description
The System Monitor performs four important tasks in a 3300 monitor rack, providing:
Functions common to all monitors in the rack, such as:
- Alarm setpoint adjustment
- Keyphasor
 power, termination, conditioning, and distribution
- Alarm acknowledgement
Connection of all installed monitors to an external communications processor (sold separately) via STATIC and DYNAMIC data ports.
Optional Serial Data Interface (SDI) for communication of transducer and monitor data to process computers, digital/distributed control systems, programmable controllers, and other control and automation systems.
Optional Dynamic Data Interface (DDI) for communication of transducer and monitor data to compatible Bently Nevada machinery management software. Depending on the type of data required, this option may eliminate the need for an external communications processor.

About Bently Nevada

• 3500/05 Instrument Rack (required)
• One or two 3500/15 Power Supplies (required)
• 3500/22M Transient Data Interface (TDI) Module (required)
• One or more 3500/XX Monitor Modules (required)
• One or more 3500/32M (4-channel) or 3500/33 (16-channel) Relay Modules (optional)
• One or two 3500/25 Keyphasor* Modules (optional)
• One or more 3500/92 Communication Gateway Modules (optional)
• Input/Output (I/O) Modules (required)
• 3500/94M VGA Display (optional)
• Internal or external intrinsic safety barriers, or galvanic isolators for hazardous area installations (optional)
• 3500 System Configuration Software (required)
