Product Description:

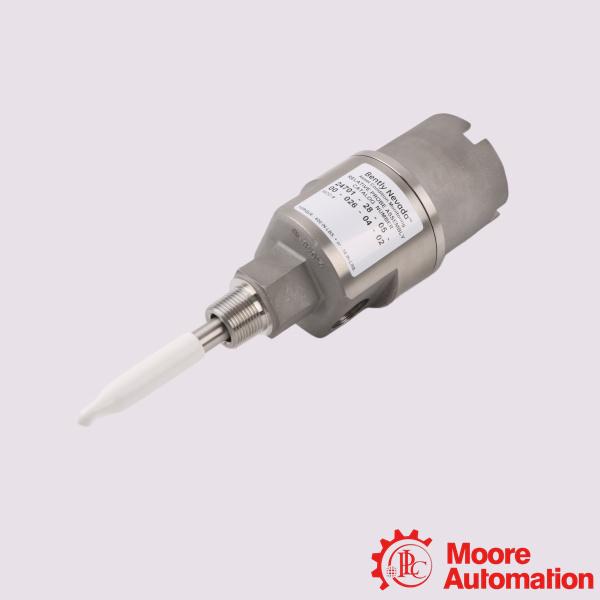

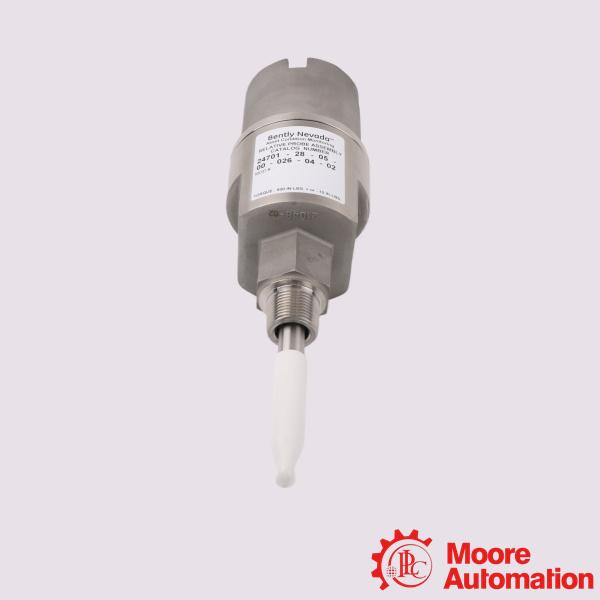

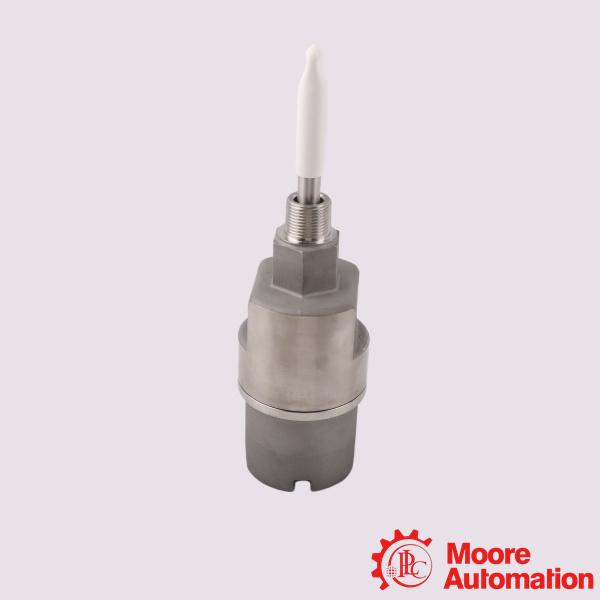

The Bently Nevada 24701-28-05-65-105-03-02 Proximity Probe Housing Assemblies are available with Canadian Standards Association (CSA) approvals. They are rated explosion proof for hazardous areas. The 24701 housings are certified as CSA Type 4 enclosures and are fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings.

These housing assemblies are designed to accommodate 3300 XL 8 mm probes with connector protectors and approval options, providing reliable protection in extreme industrial environments. The standard probe cable length is 20 inches (0.5 meters), allowing flexible installation while maintaining signal integrity.

The 24701 housings include features such as a minimum probe penetration length of 3.1 inches (78.4 mm), a standoff adapter option that is not required for standard installations, one 3/4-14 NPT plug for fittings, and a 3/4-14 NPT mounting thread.

Application:
Refineries and chemical plants: Monitor the shaft vibration and shaft displacement of turbine compressors, pump sets and fans.
Thermal/nuclear power plants: Monitor the rotor operating status on the bearing seats of large steam turbine generators.
Hydropower: Monitor the deflection of hydroelectric units.
Steel mills and paper mills: Preventive maintenance for key rotating equipment such as large motors and blowers.
