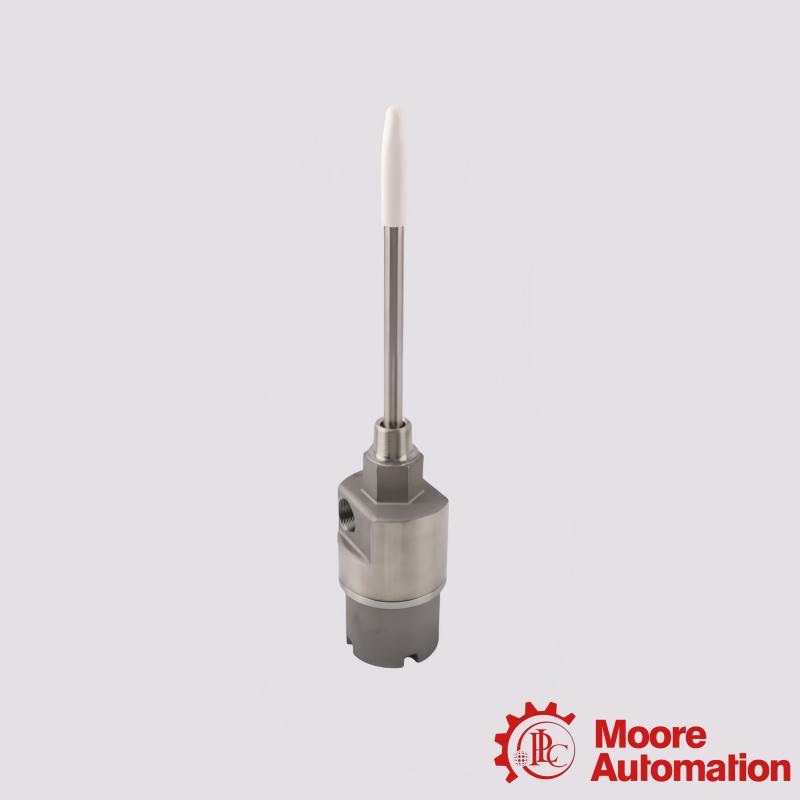

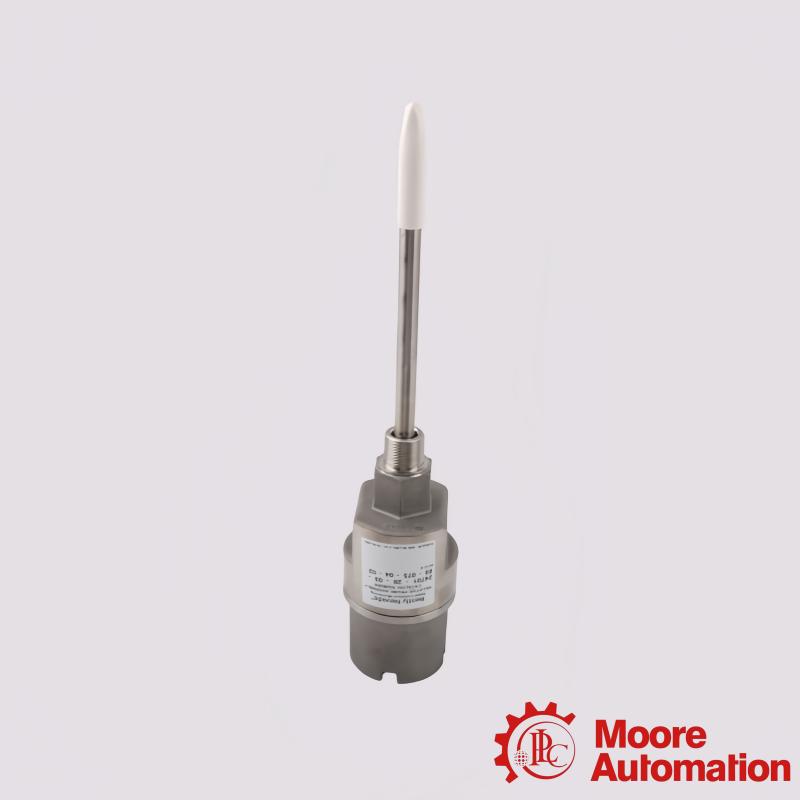

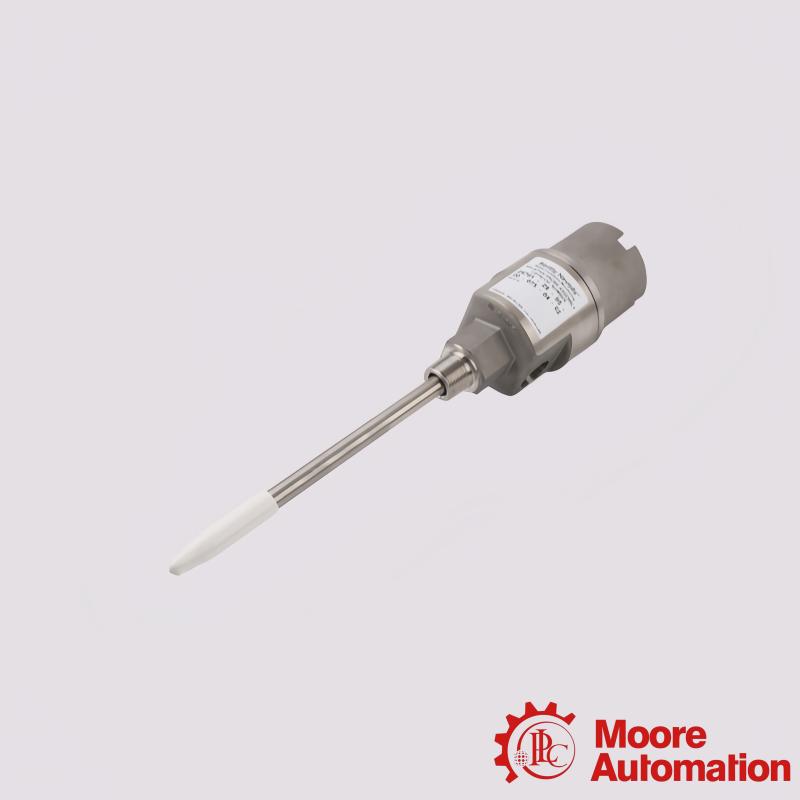

24701-16-05-033-04-02 | Bently Nevada Proximity Probe Housing Assemblies

Description

The 24701-16-05-033-04-02 allows for probe adjustment or replacement without disassembling the machine. This specific model features a 3300 XL 8 mm reverse-mount proximity probe with a 0.5-meter (20-inch) cable length. The assembly is configured with a 3.3-inch (83.8 mm) probe penetration depth and utilizes a 3/4-14 NPT mounting thread. It includes one 3/4-14 NPT plug as a standard fitting. Constructed from 303 stainless steel with a 304 stainless steel sleeve, this housing is fully compliant with the API 670 Standard。It includes one 3/4-14 NPT plug as a standard fitting.

Parameter

A: Probe with Connector
16 3300 XL 8mm probe
B: Probe Cable Length
05 20 in (0.5 m)
C: Standoff Adapter (Option C Dimension)
033 Minimum length：3.3 in(83.8 mm)
E: Fittings
04 One 3/4-14 NPT plug only
F: Mounting Thread
02 3/4-14 NPT

Frequently asked questions

Can the probe in the 24701-16-05-033-04-02 be replaced while the machine is running?
Yes. It allows for probe replacement or gap adjustment without disassembling the machine or stopping operation.

What type of probe is included in the 24701-16-05-033-04-02 configuration?
It includes a 3300 XL 8 mm reverse-mount proximity probe as specified.

Does the 24701-16-05-033-04-02 require additional sleeve support?
For a 3.3-inch penetration depth, no additional support is needed; however, it should be checked for resonance if installed in high-vibration areas.

Application areas:
Oil & Gas: Monitoring shaft vibration in high-speed compressors and pumps.

Power Generation: Displacement monitoring for turbines and auxiliary rotating equipment.

Chemical Plants: Reliable vibration measurement in corrosive or harsh chemical processing environments.

Water Treatment: Protecting pumps from cavitation and wear in corrosive industrial water systems.
