Power:-17.5 Vdc to-26 Vdc at 12 mA maximum consumption
Frequency Response: 0 to 10 kHz(0 to 600,000 cpm); -5% at 10 kHz(600,000 cpm)
Temperature Sensitivity: Typically -3% change in scale factor at +150°F(+65°C) at 50 mils gap (1.27 mm)
Operating Temperature:
Proximitor:-60°F to +212°F (-51°C to +100°С)
Probe and Extension Cable:-30°F to +350°F (-34°C to +177°C)
Relative Humidity: To 95%,noncondensing

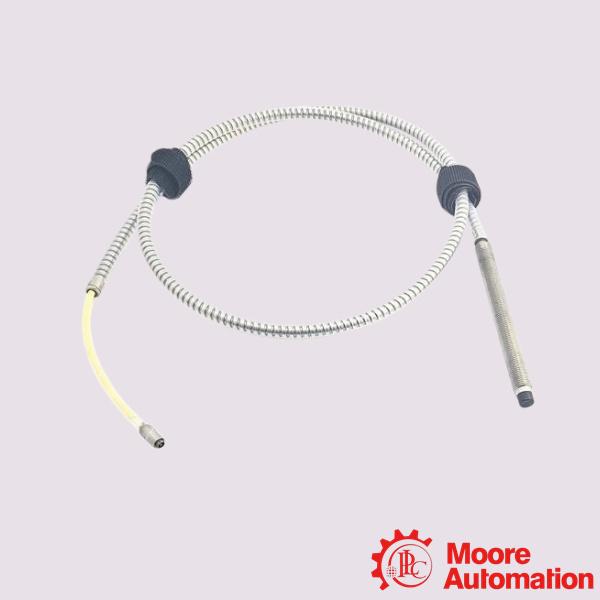

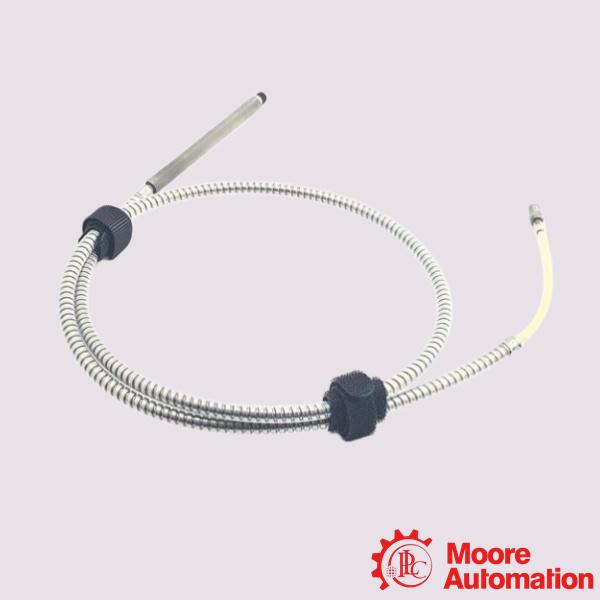

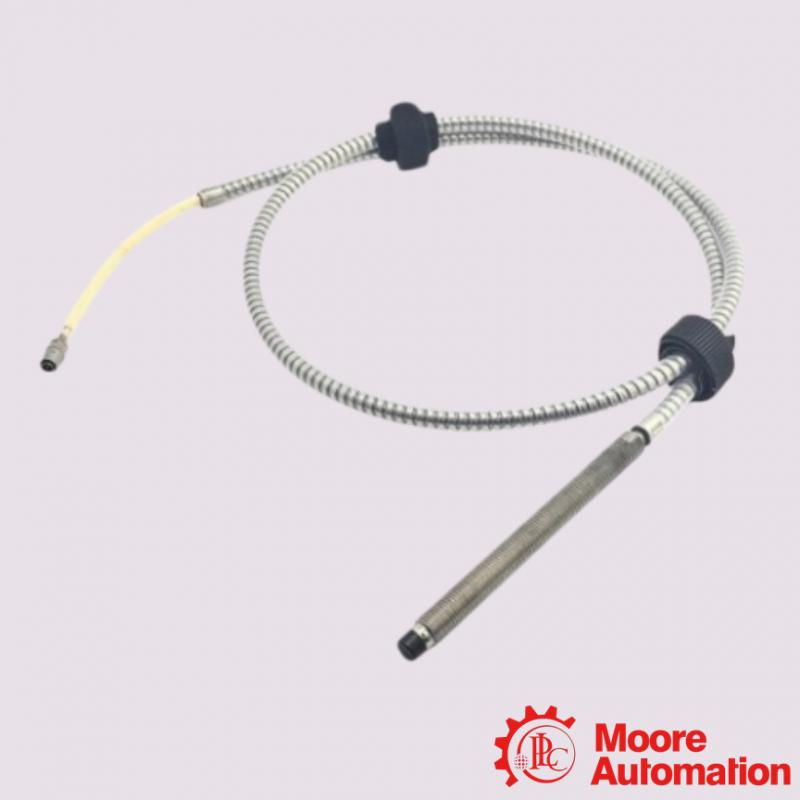

The Bently Nevada 7200 8mm Series Proximity Transducer Systems are noncontacting, gap-to-voltage transducer systems that measure static as well as dynamic distances between the probe tip and the observed target. The general application in any requirement for an accurate, noncontacting displacement measurement.
