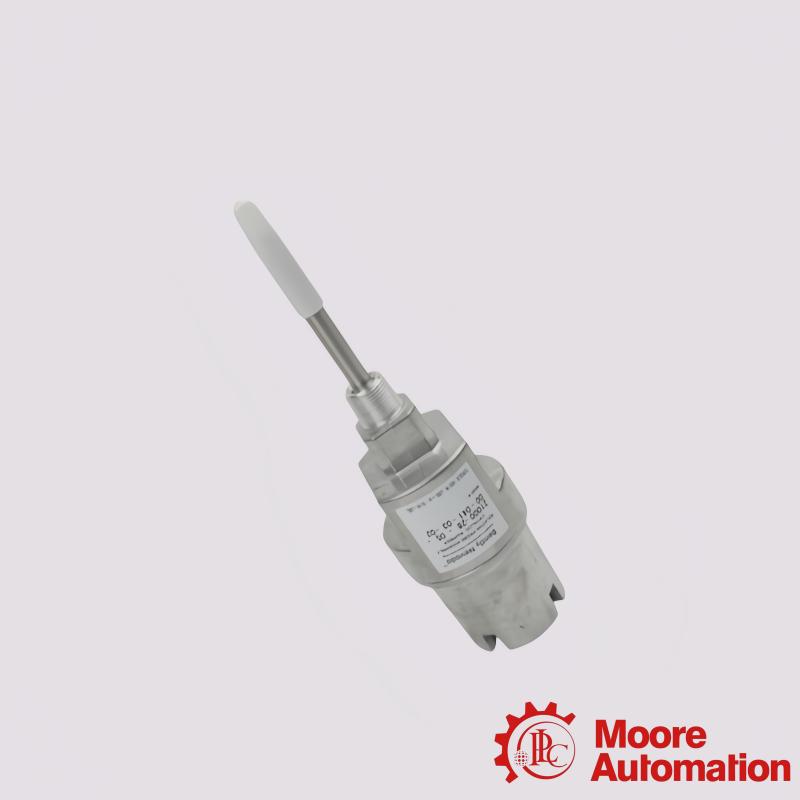

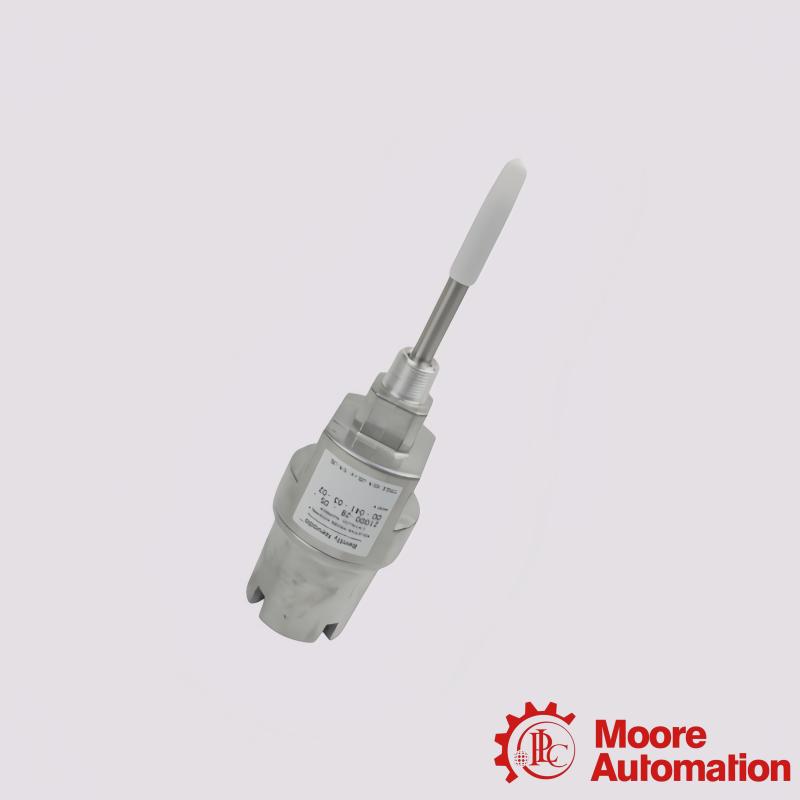

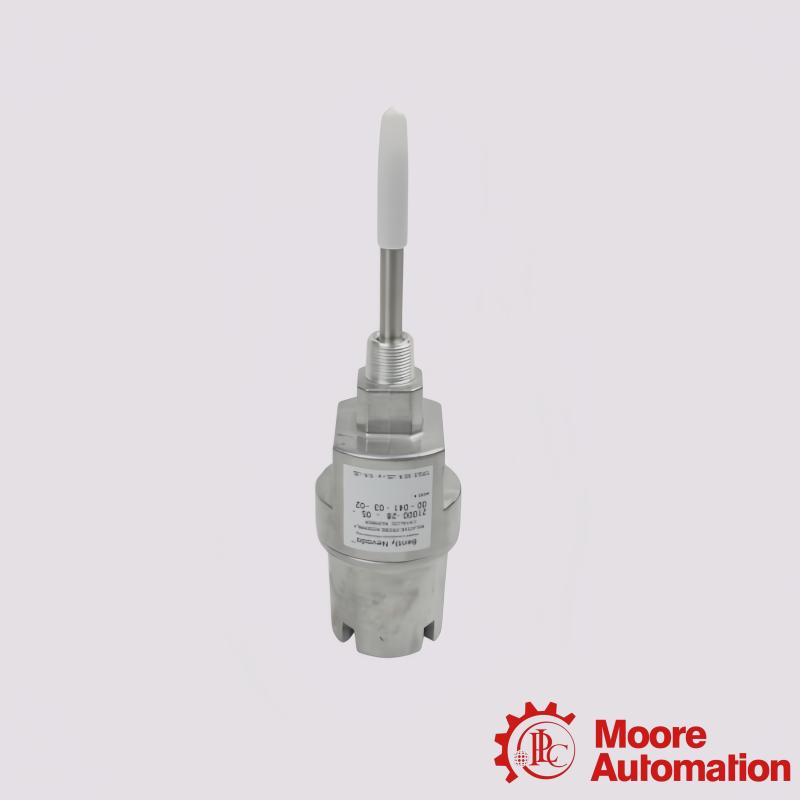

21000-34-10-00-054-04-02 | Bently Nevada Proximity Probe Housing Assemblies

Description

Bently Nevada 21000-34-10-00-054-04-02 is certified as CSA Type 4 enclosures and are fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings.Sleeve length is determined by the location in which the probe and housing are installed. The probe lead must be longer than the sleeve. Sleeve lengths longer than 304 mm (12 inches) require additional sleeve support to reduce the vibration associated with unsupported long sleeve lengths.They are rated explosion proof for hazardous areas.

Parameter

A: Probe and Approvals Option
34 3300 XL 8 mm probe, multiple approvals
B: Standoff Adapter Option (B Dimension)
10 1.0 in (25 mm)
C: Probe Penetration Option (C Dimension)
00 No probe penetration = 0.0 in (0 mm)
D: Sleeve Length Option (D Dimension)
054 Minimum length：5.4 in (137 mm)
E: Fittings Option
04 One 3/4-14 NPT fitting; one plug
One 3/4-14 to 1/2-14 NPT reducer
One cable seal grip with grommets for the following cable sizes:
• 1/8 to 3/16 inches
• 1/4 to 5/16 inches
• 5/16 to 3/8 inches
F: Mounting Thread Option
02 3/4-14 NPT (Required if ordering Standoff Adapter Option.)

Frequently asked questions

Does the 21000-34-10-00-054-04-02 require additional sleeve support?
No, additional sleeve support is only required for sleeve lengths longer than 304 mm (12 inches) to reduce associated vibration.

What is the environmental protection rating for 21000-34-10-00-054-04-02?
The housing is certified as a CSA Type 4 enclosure and maintains an IP66 rating according to IEC 60529.

Can 21000-34-10-00-054-04-02 be replaced without removing the housing from the machine?
Yes, it allows the probe to be removed and replaced by simply opening the housing cover, without disturbing the machine mount.

Application areas:
Water and wastewater treatment: large centrifugal pumps and blowers. These devices typically require continuous operation, requiring monitoring of shaft displacement and vibration.

Iron and steel metallurgy: blast furnace blowers, rolling mill drive systems, and large cooling fans.

Paper and forestry: monitoring paper machines, drying cylinder supports, and pulp pumps.

Air separation and cryogenic engineering: oxygen compressors, nitrogen compressors, and expanders.
