200350-13-00-00 | Bently Nevada Accelerometer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
4.5x2.3x2.3cm
Weight:
0.06kg
Country of Origin: :
USA
Description:

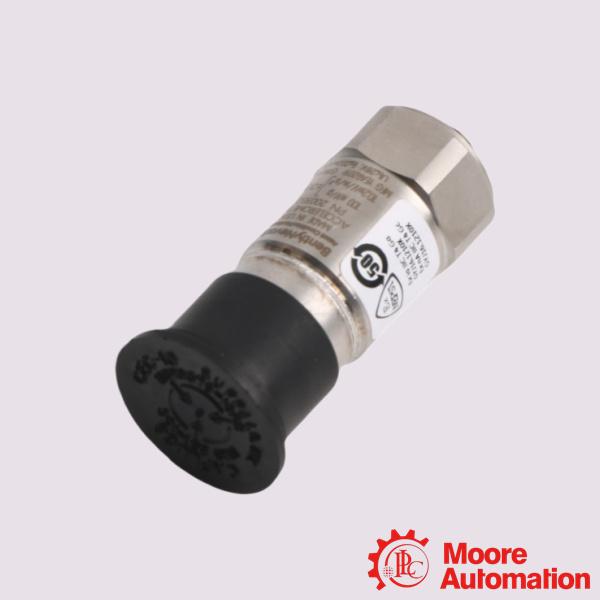

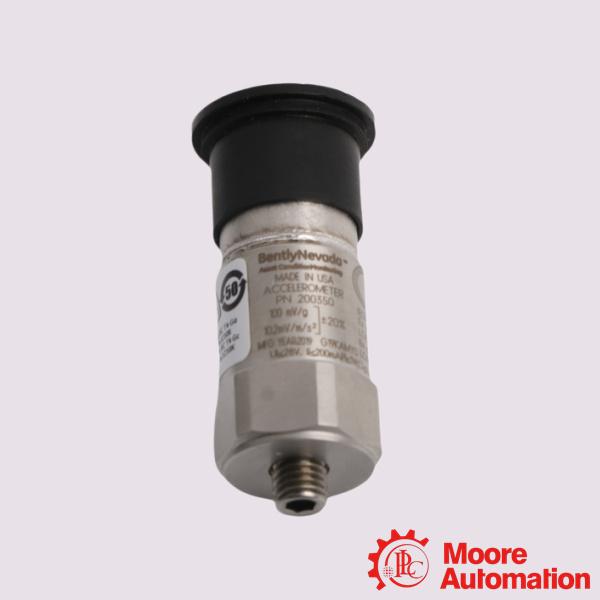

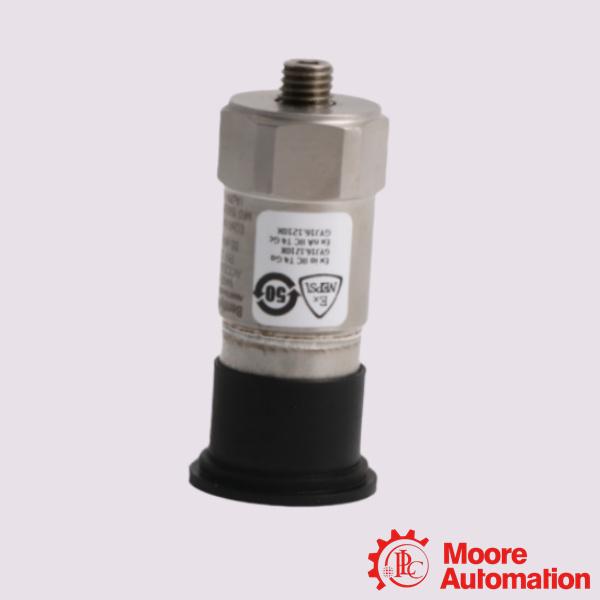

Bently Nevada 200350-13-00-00 Accelerometer

Inquiry now

Mfr. Part Number:	200350-13-00-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 200350-13-00-00 Accelerometer

Full Description:	The 200350 Accelerometers are general purpose, case-mounted seismic transducers designed Card

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 200350-13-00-00 is a general-purpose, case-mounted piezoelectric accelerometer primarily targeted at machinery condition monitoring, predictive maintenance, and vibration analysis. The specific configuration suffix (13-00-00) means it includes a magnetic base kit for temporary or route-based walk-around data collection, features a standard 100 mV/g (±20%) sensitivity, and carries no specialized agency approvals (non-hazardous areas).200350-13-00-00 Accelerometer contain a piezoelectric sensing device, which generates charge when subjected to vibration. This charge is then converted electronically to a differential voltage signal, which is proportional to the acceleration that is parallel to the sensitive axis of the transducer.

Application:

Power Generation & Utilities: Used for monitoring auxiliary equipment like cooling fans, feed-water pumps, and exciters.
Water & Wastewater Treatment: Diagnoses mechanical flaws in high-duty water transport pumps, mixers, and aeration blowers.
Manufacturing & Assembly Plants: Evaluates plant infrastructure machinery to prevent unexpected assembly line stoppages.
Mining & Metals processing: Deployed on conveyor drives, crushers, and sorting screens

Frequently Asked Questions (FAQ)

Q:What hardware interfaces natively with this accelerometer?

A:The sensor links directly to the Trendmaster Pro Constant Current Direct Input Card (149811-02) and the Seismic Direct Input Card (164746-01).
Q:How critical is the mounting torque during installation?
A:Highly critical. Improper or loose installations degrade the high-frequency response and introduce fake signal artifacts. Always square off the surface area and mount it directly to the bearing housing or machine casing.

Q:What cables are compatible with the MIL-C-5015 connector?
A:Standard field wiring uses a 22 AWG, 2-conductor twisted shielded cable terminated with a 2-socket moisture-resistant female plug. Note that splash-proof style cables are explicitly not recommended for the 200350 model according to the Bently Nevada Accessories Guide

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：200350-13-00-00
Mounting Stud	Magnetic Base Kit
Tolerance	100 mV/g ± 20% (10.2 mV/m/s^2 ±20%)
Sensitivity	100 mV/g ±20% (10.2 mV/m/s^2 ±20%)
Measurement Range	± 50 g
Transverse Sensitivity	≤ 7%
Amplitude Linearity	± 1%
Output Bias Voltage	8 to 12 VDC
Excitation Voltage	18 to 28 VDC
Constant Current Excitation	2 to 20 mA
Operating Temperature Range	-65°F to +250 ºF (-54°C to +121 ºC)
Shock Survivability	5,000 g pk
Approvals	No Approvals
