200350-11-00-CN | Bently Nevada Accelerometer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
3.6x3.1x10cm
Weight:
0.38kg
Country of Origin: :
USA
Description:
Bently Nevada 200350-11-00-CN Accelerometer

Inquiry now

Mfr. Part Number:	200350-11-00-CN

Manufacturer:	Bently Nevada

Description:	Bently Nevada 200350-11-00-CN Accelerometer

Full Description:	The 200350 Accelerometers are general purpose, case-mounted seismic transducers designed Card

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

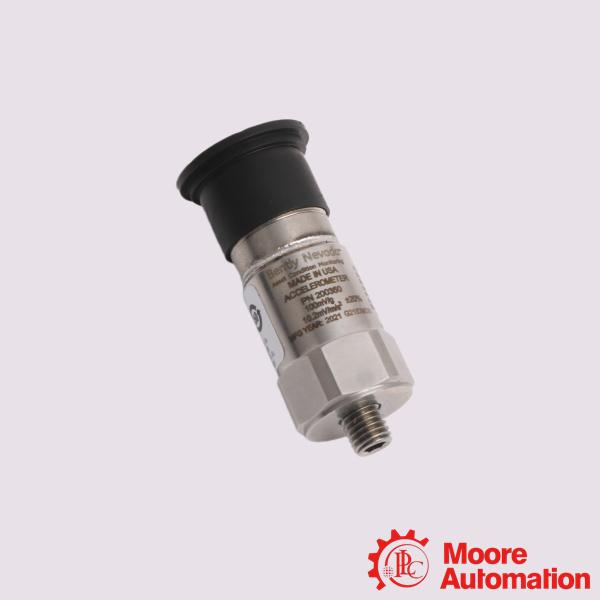

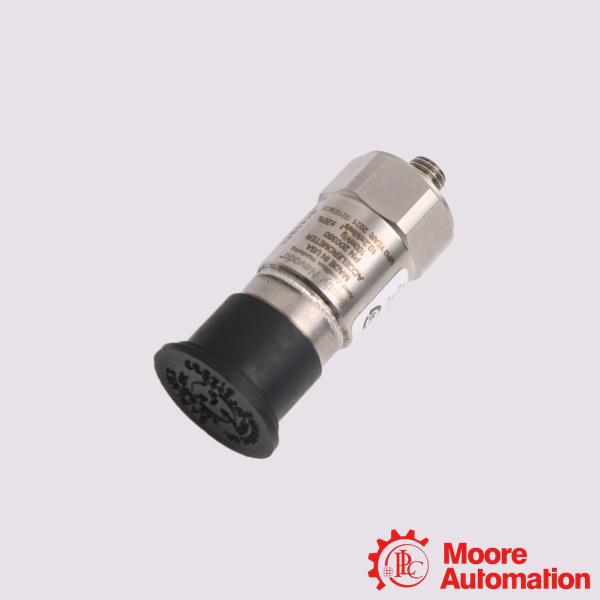

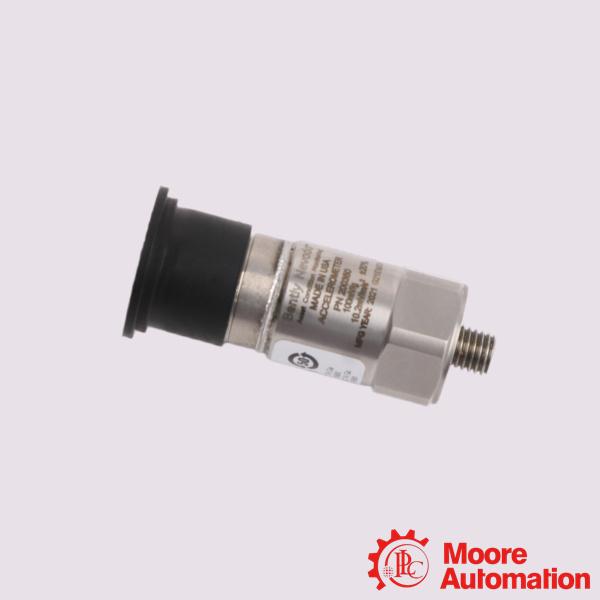

The Bently Nevada 200350-11-00-CN is a heavy-duty industrial accelerometer designed to measure machinery vibration in hazardous environment applications like oil, gas, and power plants.The 200350-11-00-CN Accelerometer is contained within a hermetically sealed, stainless steel case. The design provides an extremely rugged transducer, well suited for harsh industrial environments. Each transducer’s top mounted, 2-pin connector (MIL-C5015) allows for easy installation and removal of the interconnecting signal cable. A ¼-28 threaded hole on the bottom of the casing accommodates multiple mounting options.

Application:

Power Generation: Used on steam turbines, generators, and cooling tower fans. It continuously tracks structural resonances and imbalances to maintain grid reliability.
Petrochemical & Chemical Processing: Deployed on critical infrastructure including blowers, mixers, and process gas compressors where continuous predictive maintenance is necessary to avoid catastrophic housing damage
Pulp & Paper / Heavy Industry: Placed on heavy machinery such as kilns, crushers, conveyors, and rolling mills to withstand corrosive environments while tracking bearing wear.
Water & Wastewater Utilities: Installed in pumping stations to monitor structural vibration on massive water distribution pumps, effectively identifying early cavitation or shaft misalignments.

Frequently Asked Questions (FAQ)

Q:How is the sensor mounted?
A:This option utilizes an M6x1 adhesive stud mount. The base has a 1/4-28 female thread where the adhesive stud is screwed in. When tightening, the maximum recommended mounting torque is 2 to 5 ft-lb (2.7 to 6.8 N-m).
Q:What cable and connector are required?
A:The top of the sensor houses a standard 2-Pin MIL-C-5015 electrical connection. It outputs a differential voltage signal through a recommended interconnecting shielded signal cable.

Q:What is the maximum recommended cable length?
A:Assuming a maximum vibration of 50 g and standard cable capacitance, the maximum recommended length is 104 ft (31 m). For longer runs, Bently Nevada Technical Support should be consulted.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：200350-11-00-CN
Mounting Stud	M6x1 Adhesive Stud Mount
Tolerance	100 mV/g ± 20% (10.2 mV/m/s^2 ±20%)
Sensitivity	100 mV/g ±20% (10.2 mV/m/s^2 ±20%)
Measurement Range	± 50 g
Transverse Sensitivity	≤ 7%
Amplitude Linearity	± 1%
Output Bias Voltage	8 to 12 VDC
Excitation Voltage	18 to 28 VDC
Constant Current Excitation	2 to 20 mA
Operating Temperature Range	-65°F to +250 ºF (-54°C to +121 ºC)
Shock Survivability	5,000 g pk
