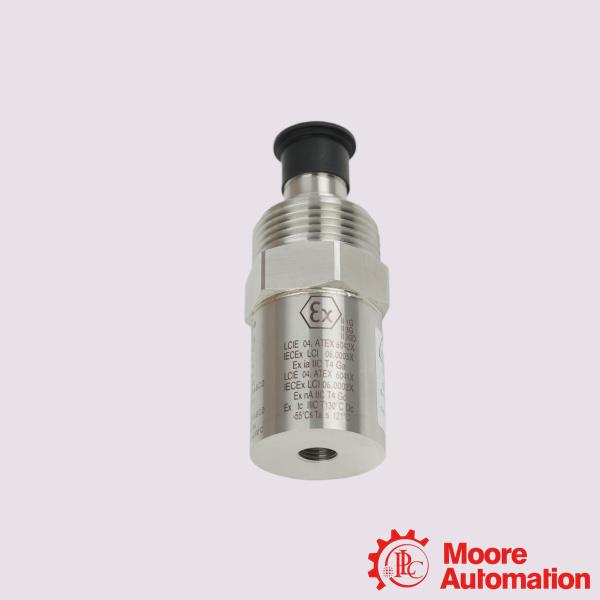

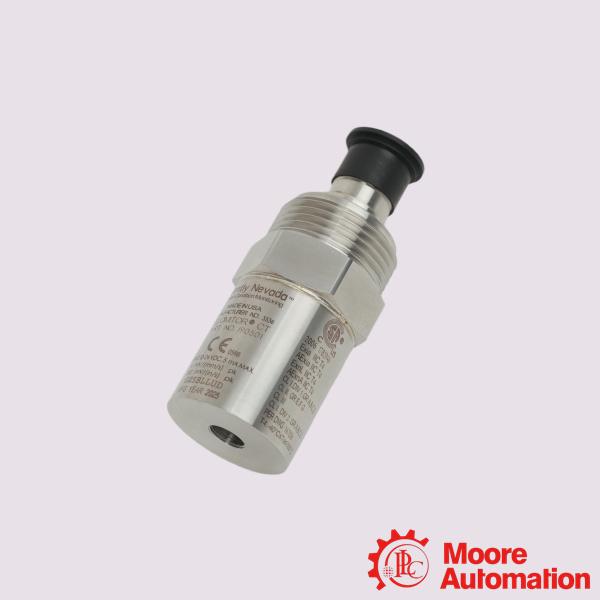

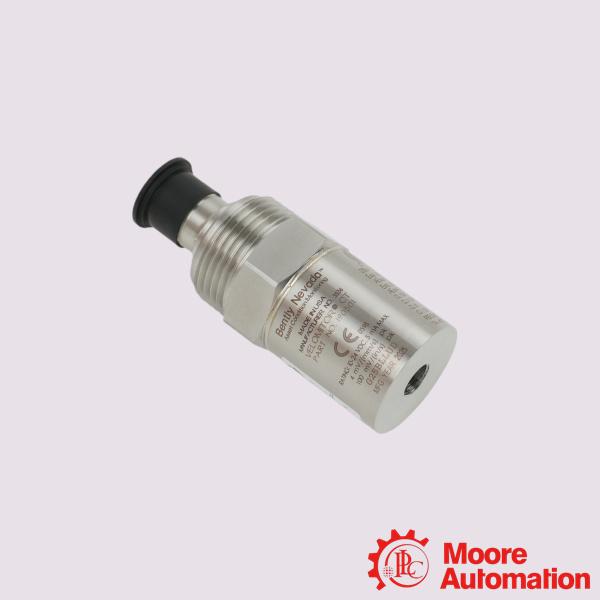

190501-24-00-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
9.2x3.6x3cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-24-00-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-24-00-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-24-00-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-24-00-00 is a specific configuration of the Velomitor CT (Cooling Tower) Velocity Transducer. It is a specialized, case-mounted low-frequency vibration sensor designed primarily to track casing vibration velocity on slow-moving fan assemblies, cooling towers, and air-cooled heat exchangers.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).

Application:

Power Generation Facilities: Deployed on cooling towers and large water-circulating pump assemblies in thermal, combined-cycle, and nuclear power stations
Chemical & Fertilizer Processing: Protects slow-speed rotating machinery subject to continuous operation where fan or pump failure halts production pipelines.
Water and Wastewater Treatment: Installed on large low-speed mixing basins, aeration blowers, and high-volume water pump casings.
Pulp & Paper Mills: Monitored on heavy-duty processing fans, exhaust systems, and rollers that operate within the sensor's low-frequency spectrum.

Frequently Asked Questions (FAQ)

Q:What are the recommended mounting criteria?
A:The transducer must be installed with a torque rating of 4.5 N-m ± 0.6 N-m (40 in-lbf). It can be mounted in any spatial orientation (axial, radial, horizontal) on the machine housing, provided the mounting surface meets the 33 mm (1.3 in) diameter threshold.
Q:What type of cabling and connectors does it require?
A:This specific "-00" option features an industry-standard 2-pin MIL-C-5015 top connector. It connects via a twisted-pair shielded cable (such as a yellow Teflon-jacketed 20 AWG cable), allowing a maximum signal run of up to 305 meters (1,000 feet) without signal loss.

Q:What is the primary purpose of this sensor?
A:It measures low-frequency casing vibration velocity on slow machinery. It is specifically optimized for machinery running at or above 90 RPM (typically 100 to 300 RPM), such as large cooling tower fans, where standard vibration sensors fail to capture precise low-frequency signals.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-24-00-00
Mounting Hardware Option	Adapter, 3/8-in 24 to 1.25-in 11.5 NPT
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum
Humidity Limit	100% condensing, non-submerged
Agency Approval Option	No Approvals
