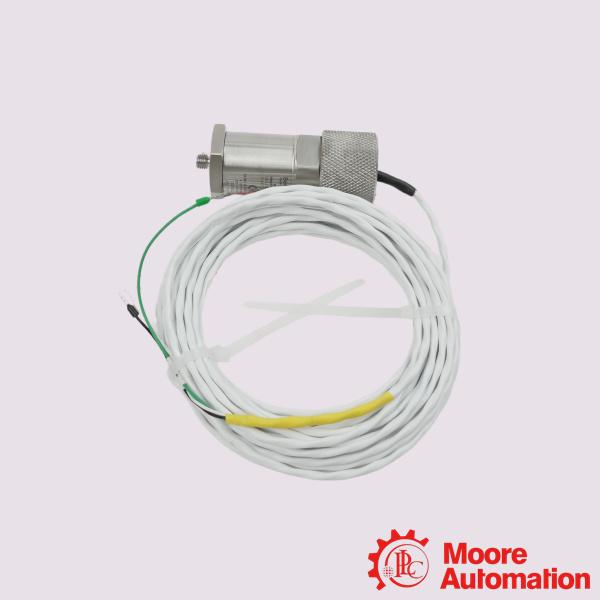

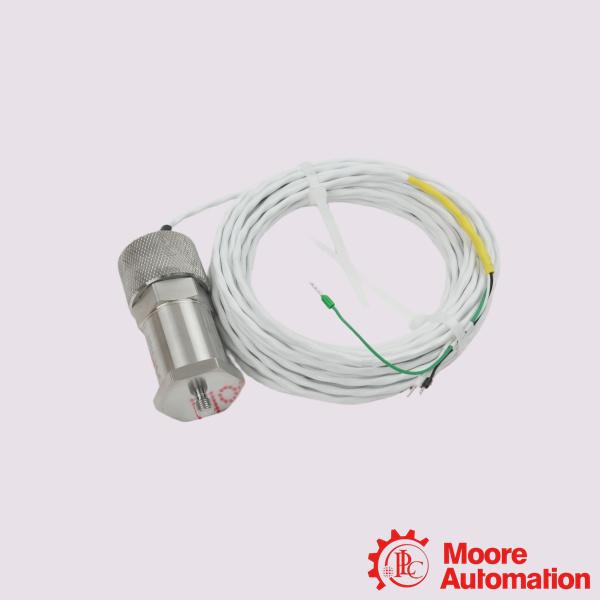

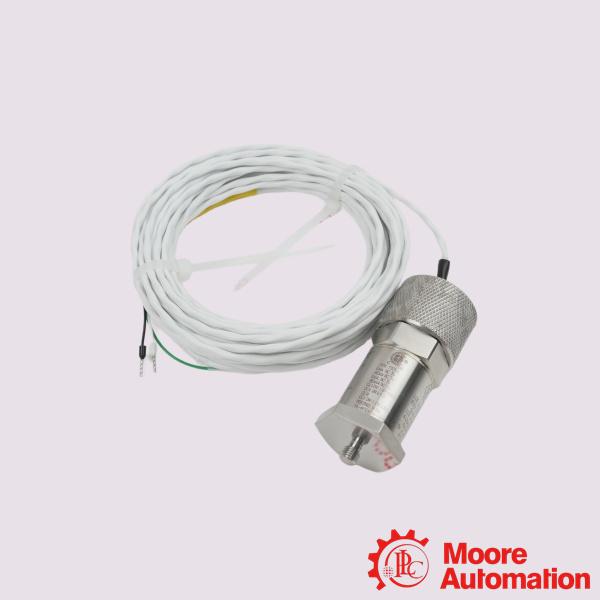

190501-23-00-01 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
20x15x4cm
Weight:
0.75kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-23-00-01 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-23-00-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-23-00-01 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-23-00-01 is a Velomitor CT (Cooling Tower) Velocity Transducer, a specialized low-frequency version of the standard 330500 sensor. It is primarily engineered to measure casing vibration velocity on cooling towers and air-cooled heat exchangers operating at or above 90 RPM.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).

Application:

Oil & Gas Refining & Petrochemical: Protects large critical fin-fan heat exchangers and cooling infrastructures within explosive or hazardous gas zones.
Power Generation: Used on cooling tower arrays for coal-fired, combined-cycle, and nuclear power plant utility blocks.
Chemical & Fertilizer Plants: Provides continuous condition monitoring on process cooling systems exposed to corrosive elements.
Pulp & Paper / Mining: Monitors heavy-duty industrial slow-speed fans and process equipment prone to massive structural stresses.

Frequently Asked Questions (FAQ)

Q:How is this device calibrated?
A:Due to its low-frequency design, standard high-frequency shakers cannot verify its performance. It must be checked using a low-frequency portable vibration calibrator (such as a Modal Shop 9210) capable of sweeping down to 1.5 Hz to accurately verify the steep low-end frequency roll-off.
Q:Does this sensor require external power?
A:Yes, it is a loop-powered device that requires an external constant-current source, typically provided directly by your vibration monitor interface module (such as a Bently Nevada 3500/42M or 2300 series monitor).

Q:What is the core difference between this and a standard Velomitor?
A:The "CT" designation stands for Cooling Tower. Unlike standard velocity sensors that roll off around 10 Hz, the 190501 series is optimized for low-frequency applications. It accurately measures down to 1.5 Hz (90 CPM), capturing the slow rotational frequencies typical of large cooling tower fans and their gearboxes.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-23-00-01
Mounting Hardware Option	Adapter, 3/8-in 24 to 1.0-in 11.5 NPT
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum.
Humidity Limit	100% condensing, non-submerged
