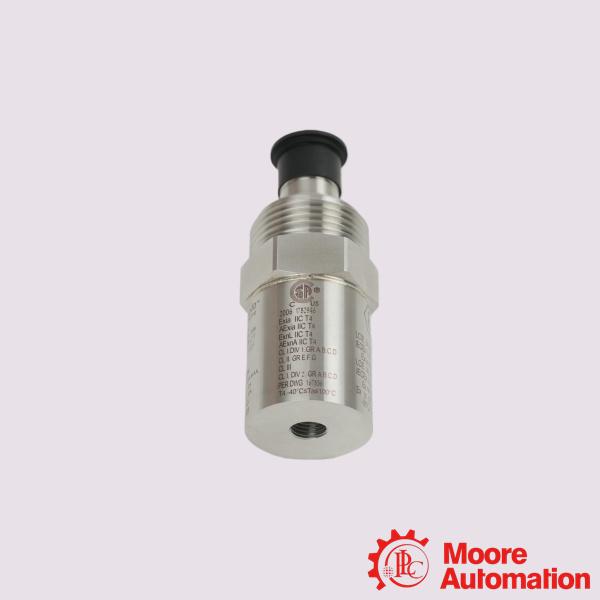

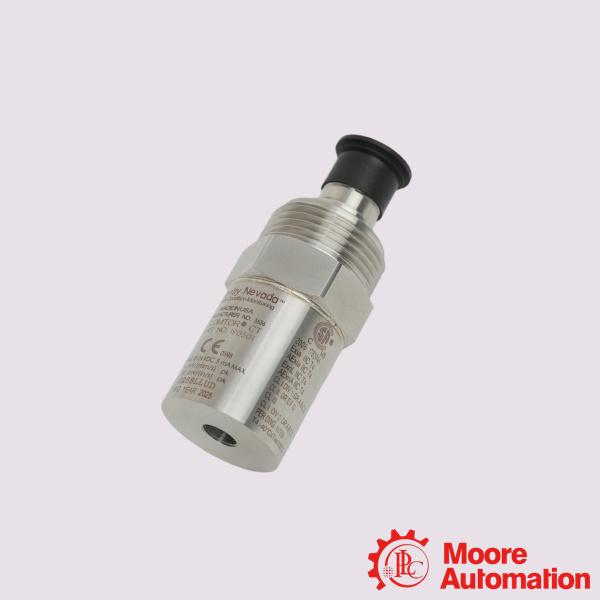

190501-20-00-00 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-20-00-00 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-20-00-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-20-00-00 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-20-00-00 is a specific configuration of the Velomitor CT (cooling tower) velocity sensor. This is a dedicated low-frequency piezoelectric velocity sensor primarily used to monitor the shell vibration velocity of cooling towers and air-cooled heat exchangers under low-speed operating conditions. The Velomitor CT velocity sensor is a low-frequency version of the standard Velomitor piezoelectric velocity sensor. It is specifically designed for measuring the shell vibration velocity of cooling towers and air-cooled heat exchanger fan assemblies operating at speeds not lower than 90 rpm (typically ranging from 100 to 300 rpm). This sensor can measure not only the vibration amplitude within the aforementioned speed range but also the vibration frequency generated by the fan motor and reducer.

Application:

Cooling Towers: Used extensively on large cooling tower fan assemblies to catch imbalances or structural loosening.
Air-Cooled Heat Exchangers (Fin-Fans): Monitors slow-speed heat exchanger fan blades, fan motors, and speed reducers.
Water & Wastewater Treatment: Placed on massive, slow-turning pumps, agitators, and aeration fans.
Power Generation & Petrochemical: Tracks structural and casing vibrations in large-scale air-cooled condensers (ACC) and associated slow-speed machinery.

Frequently Asked Questions (FAQ)

Q:What makes the Velomitor CT different from a standard Velomitor?
A:The standard Velomitor is tuned for higher-speed machinery. The "CT" version features an optimized low-frequency response, enabling it to accurately track slow-moving fan blades and components down to 90 rpm (1.5 Hz) without losing signal clarity.
Q:What is the default scale factor/sensitivity?
A:It has a nominal sensitivity of 3.94 mV/mm/s (100 mV/in/s) ±5%.

Q:What is the proper mounting torque for the sensor?
A:The sensor should be torqued tightly to 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf) onto a flat surface with at least a 33 mm (1.3 in) diameter.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-20-00-00
Mounting Hardware Option	Adapter, 3/8-in 24 to 3/8-in 18 NPT
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum
Humidity Limit	100% condensing, non-submerged
Agency Approval Option	No Approvals
