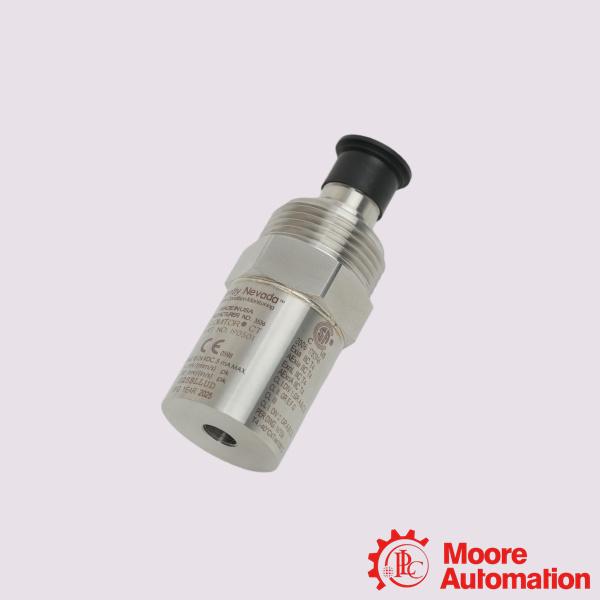

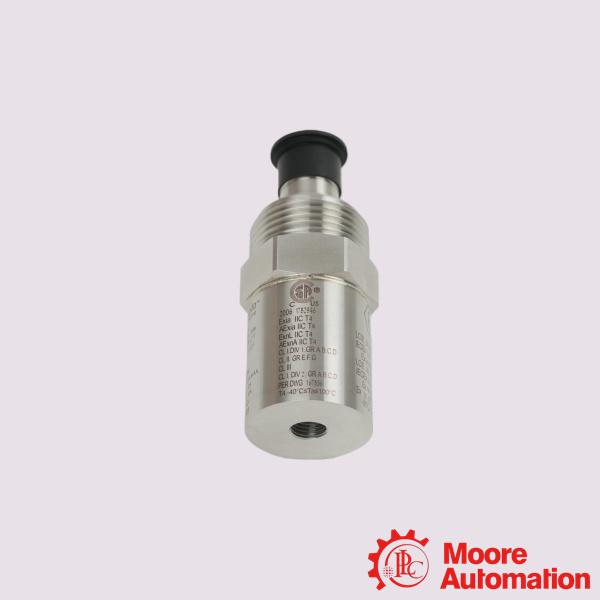

190501-18-00-04 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
9.2x3.6x3cm
Weight:
0.3kg
Country of Origin: :
USA
Description:
Bently Nevada 190501-18-00-04 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-18-00-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-18-00-04 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-18-00-04 is a Velomitor CT velocity sensor specifically designed for cooling towers. This sensor is a low-frequency version of the standard Velomitor piezoelectric velocity sensor, rugged and durable, specifically designed to measure the vibration velocity of cooling tower and air-cooled heat exchanger fan casings at speeds not less than 90 rpm (typically 100 to 300 rpm). In addition to measuring vibration amplitude within this low-frequency range, the sensor can also detect the vibration frequency generated by the fan motor and reducer.

Application:

Power Plant Cooling Circuits: Monitors critical induced-draft fans used to extract heat from condenser water loops.
Industrial Exhaust & Ventilation Fans: Safeguards heavy-duty flue gas or ventilation fans running at low structural speeds.
Fin-Fan Heat Exchangers: Extensively used to protect large aerial coolers crucial to refinery and petrochemical processing loops.
Large Industrial Pumps & Blowers: Applied on the structural casings of massive vertical pumps and processing fans that fall into the low-frequency operating window.

Frequently Asked Questions (FAQ)

Q:Can it be mounted at an angle?
A:Yes, it functions reliably at any mounting orientation angle.
Q:Is the housing grounded?
A:No, the internal sensor electronics are completely isolated from the outer case.

Q:What is the correct mounting torque?
A:Tighten the sensor to 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf).

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-18-00-04
Mounting Hardware Option	Adapter, 3/8-in 24 to 1/2-in 13
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Shock Limit	5000 g pk, maximum
Humidity Limit	100% condensing, non-submerged
