190501-03-00-01 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

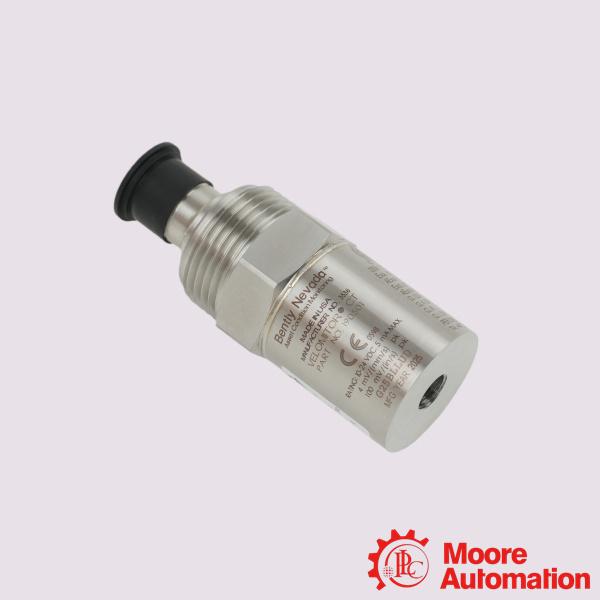

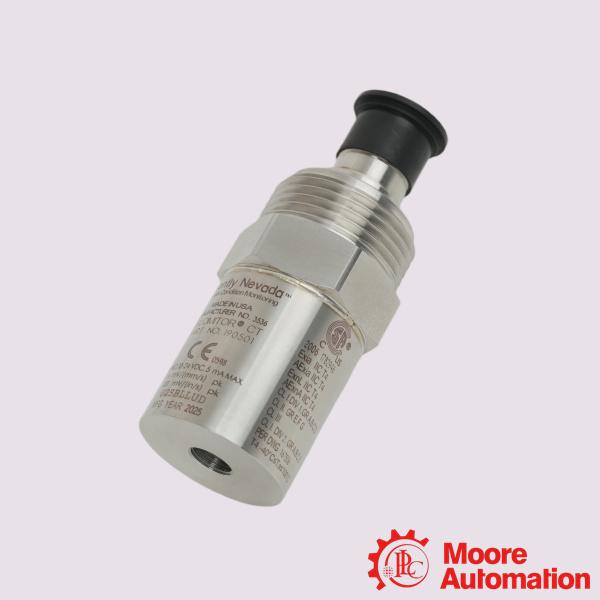

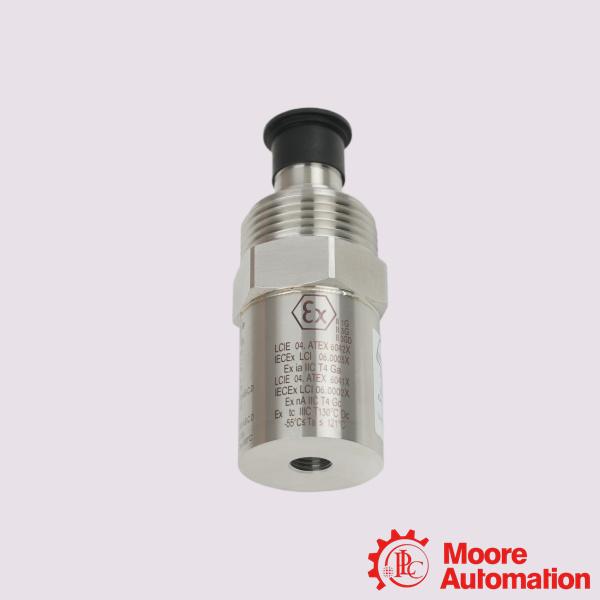

Bently Nevada 190501-03-00-01 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-03-00-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-03-00-01 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 190501-03-00-01 is a specialized Velomitor CT (Cooling Tower) Velocity Transducer configured with a M10 x 1.25 mounting stud, a standard MIL-C-5015 electrical connection, and North American / International hazardous area agency approvals. Manufactured by Baker Hughes Bently Nevada, it is a low-frequency piezo-velocity sensor engineered specifically to monitor casing vibration on low-speed machinery. It is widely used on cooling towers and air-cooled heat exchangers where fan assemblies operate at or above 90 RPM.

Application:

Industrial Cooling Towers:Wet and dry cooling tower cell fans.
Air-Cooled Heat Exchangers (Fin-Fans):Air-cooled condensers and large radiator fan assemblies in processing plants.
Power Generation Facilities: Induced draft (ID) fans, forced draft (FD) fans, and large water cooling systems.
Petrochemical & Refining Plants:Heat removal loops, processing towers, and low-speed gearboxes.

Frequently Asked Questions (FAQ)

Q:Is this device safe for deployment in explosive or hazardous zones?
A:Yes. Because this specific variation utilizes the -01 Agency Approval Option, it holds certifications for intrinsic safety and non-incendive environments. This permits installation inside hazardous zones when connected through an approved galvanic isolation barrier or zener safety barrier back to the control room.
Q:Can this sensor be mounted horizontally or upside down?
A:Yes. The 190501 transducer can be installed in any spatial orientation without losing calibration accuracy or affecting sensitivity tracking.

Q:What is the recommended mounting torque?
A:When securing the transducer to its mounting surface, you must use a torque values of 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf). Applying incorrect torque values can distort the internal piezoelectric element, leading to severe measurement tracking drift or invalid machinery health data.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-03-00-01
Mounting Hardware Option	Adhesive Stud 3/8-in 24
Connection Option	MIL-C-5015 connection interface
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity	-8% to +5% typical over the operating temperature range.
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
