in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
6.2x2.5x2.3cmWeight:
0.08kgCountry of Origin: :
USADescription:

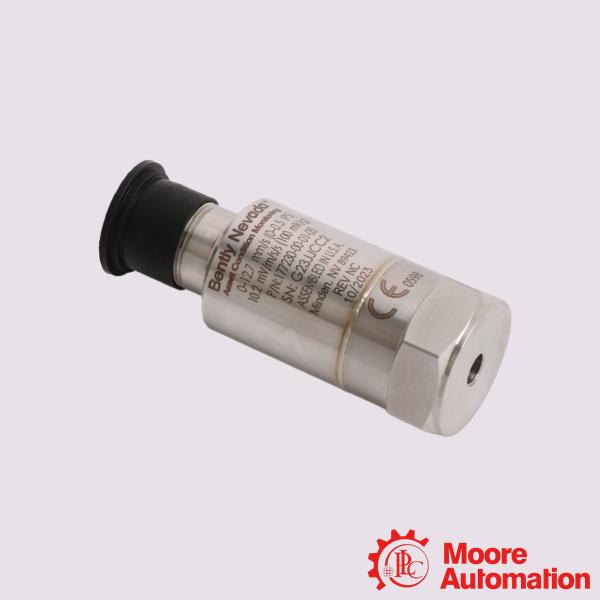

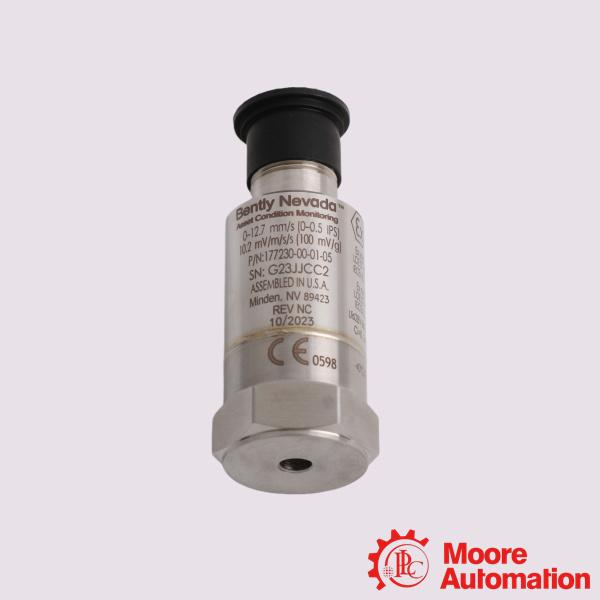

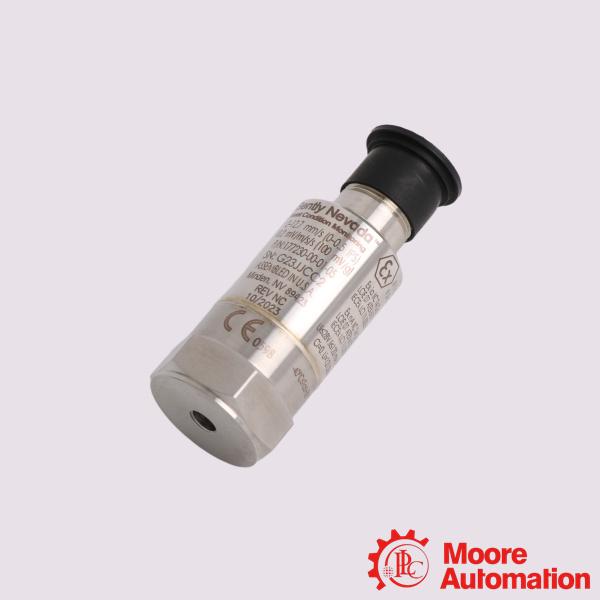

Bently Nevada 177230 16710-65 Seismic Transmitter
| Mfr. Part Number: |
177230 16710-65 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 177230 16710-65 Seismic Transmitter (Interconnect Cable with Armor). Its primary purpose is to provide direct, cost-effective vibration monitoring by transmitting a 4-20 mA velocity signal directly to plant automation systems. The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. It can be integrated into your programmable logic controller (PLC) or controls system linked to a plant asset condition monitoring solution. Its simple design reduces training, maintenance, and service costs. The transducer helps you better manage downtime, optimize maintenance planning, and avoid
unforeseen catastrophic failures of machinery assets.
Application:
Electric Motors: Monitoring bearing wear, mechanical looseness, and phase unbalance.
Industrial Pumps: Detecting impeller degradation, cavitation, and shaft misalignment.
Centrifugal & Axial Fans: Tracking structural unbalance and blade fouling.
Small Reciprocating Compressors: Capturing abnormal structural and casing movement.
Frequently Asked Questions (FAQ)
Q:What is the proper bend radius for the armored cable?
A:When routing the 16710-65 armored cable, you must maintain a minimum bend radius of 15 cm (6 inches) to prevent damage to the internal shields and copper conductors. Always use strain relief near connection points.
Q:Do I need to calibrate the transmitter in the field?
A:No field configuration or adjustments are required. The transmitter is factory calibrated. You only need to scale your PLC/DCS analog input card to match the 4-20 mA full-scale velocity range specified on your exact 177230 model configuration.
Q:What are the main functions of the 177230 Transmitter?
A:It outputs a 4-20 mA current loop signal proportional to overall machine vibration velocity (e.g., peak velocity). It also provides a dynamic acceleration waveform output (via field wiring) used for advanced diagnostic analysis.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：177230 16710-65 |
|
Length in feet |
65 feet |
|
Excitation Voltage |
12 to 30 Vdc (Current limited to 40 mA) |
|
Settling Time |
Less than 15 seconds within 2% of final value |
|
Mounted Resonant Frequency |
Greater than 12 kHz |
|
Transverse Sensitivity |
Less than 5% of sensitivity |
|
Velocity Output Signal |
4 to 20 mA Current Loop from Pin A to Pin B |
|
Acceleration Sensitivity |
10.2 mV/m/s2 (100 mV/g) ± 20% |
|
Full Scale Range |
147 m/s2 ( 15 g) peak |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
