in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
7x2.8x2.4cmWeight:
0.14kgCountry of Origin: :
USADescription:

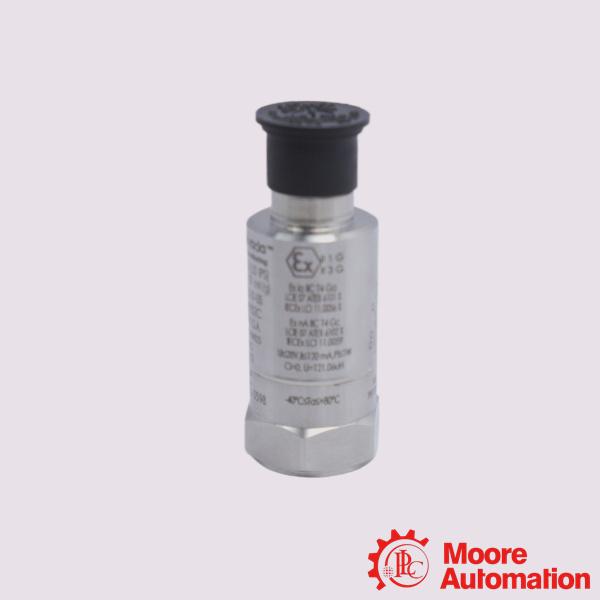

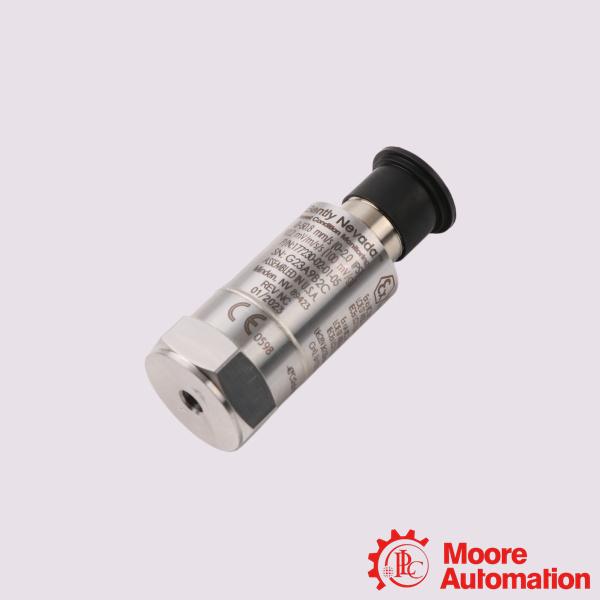

Bently Nevada 177230-02-01-CN 16710-16 Seismic Transmitter
| Mfr. Part Number: |
177230-02-01-CN 16710-16 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 177230 Seismic Transmitter incorporates robust CM for reliability and implements an industry-standard 4 to 20 mA loop-powered transmitter. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

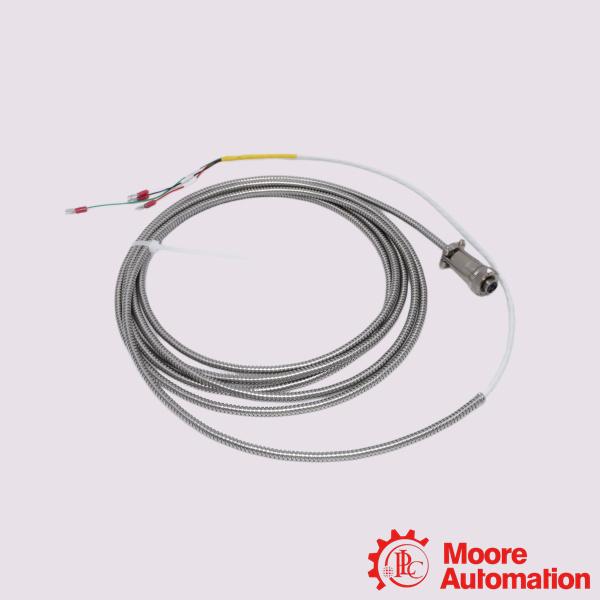

The Bently Nevada 177230-02-01-CN is a loop-powered seismic transmitter paired with the 16710-16 armored interconnect cable, primarily targeted at general-purpose, non-critical, or balance-of-plant rotating machinery. The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. It can be integrated into your programmable logic controller (PLC) or controls system linked to a plant asset condition monitoring solution.
Application:
Electric Motors & Small Pumps: Tracks overall structural looseness, unbalance, and initial bearing degradation on standard utility pumps and drive motors.
Centrifugal & Axial Fans / Blowers: Monitors continuous vibration levels on large industrial ventilation units, cooling towers, and exhaust air systems.
Air & Gas Compressors: Oversees general-purpose plant air supply units and auxiliary gas-boosting compressors.
Power Generation Auxiliaries: Deployed on non-critical power plant infrastructure, such as water feed pumps, draft fans, and secondary coal mill machinery.
Frequently Asked Questions (FAQ)
Q:What are the electrical power requirements?
A:The transmitter requires a loop power supply providing 12 to 30 VDC. The connected PLC/DCS input channels must be current-limited, typically between 30 mA and 35 mA.
Q:How do you wire the sensor through the MIL connector?
A:The device features a 3-pin MIL-C-5015 connector. The standard current loop configuration uses Pin A for positive supply (4–20 mA input) and Pin B for negative loop return. Pin C provides a raw dynamic signa
Q:What is the recommended mounting torque?
A:When threading the unit onto its mounting base, tighten it down to a torque specification of 4 to 7 Nm (35 to 60 in-lb) to prevent loose readings or thread damage.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：177230-02-01-CN 16710-16 |
|
Measurement Range |
0 – 25.4 mm/s (0 – 1.0 in/s) |
|
Frequency |
3 Hz to 1 kHz (180 to 60 kcps) peak |
|
Length in feet |
16 feet |
|
Excitation Voltage |
12 to 30 Vdc (Current limited to 40 mA) |
|
Transverse Sensitivity |
Less than 5% of sensitivity |
|
Output Signal |
4 to 20 mA Current Loop from Pin A to Pin B |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ± 20% |
|
Linearity |
± 1% of Full Scale |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
