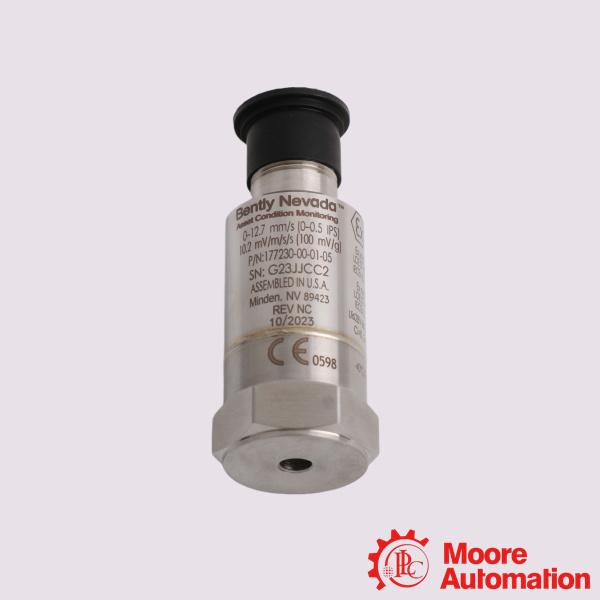

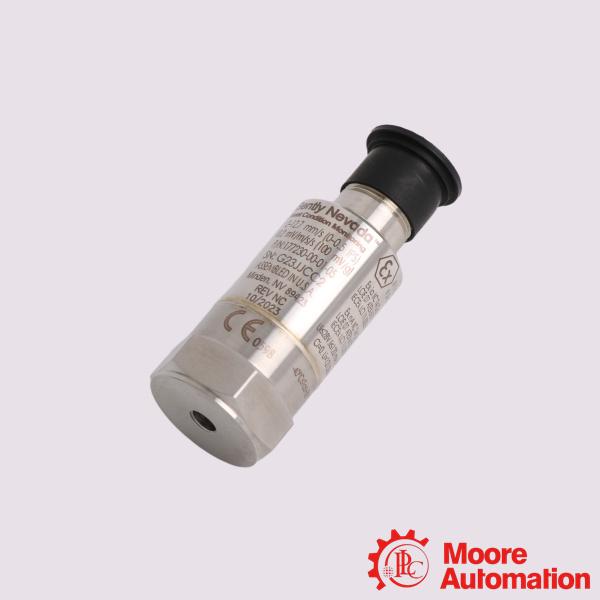

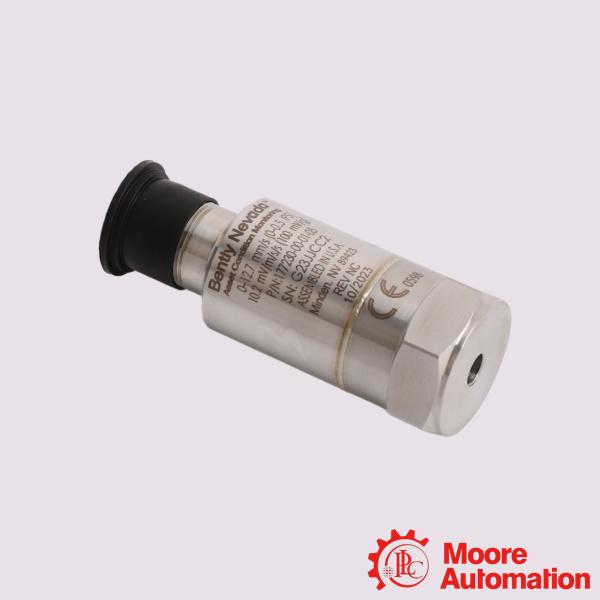

Bently Nevada 177230-02-01-CN 16710-06 Seismic Transmitter
| Mfr. Part Number: |
177230-02-01-CN 16710-06 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 177230-02-01-CN 16710-06 is a loop-powered seismic vibration transmitter for continuous condition monitoring of general purpose, non-critical rotating machinery assets. The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. It can be integrated into your programmable logic controller (PLC) or controls system linked to a plant asset condition monitoring solution. Its simple design reduces training, maintenance, and service costs. The transducer helps you better manage downtime, optimize maintenance planning, and avoid unforeseen catastrophic failures of machinery assets.
Application:
Cooling Tower Fans: Monitors structural vibration and early mechanical looseness caused by blade pitch imbalance or gearbox defects.
Water Circulation Pumps: Tracks overall bearing housing health to prevent sudden cooling loop failures.
Air Compressors: Provides continuous casing velocity readings to detect misalignment in auxiliary air systems.
Process Pumps: Detects cavitation, pipe strain, and early-stage rolling element bearing wear in non-hazardous or certified zone-rated transport loops.
Frequently Asked Questions (FAQ)
Q:Does this transmitter require field calibration?
A:No. The device is factory-calibrated and requires no field adjustments. It outputs a strict 4 mA at 0 mm/s and a full-scale 20 mA at 50.8 mm/s.
Q:What are the mounting requirements?
A:The base of the transmitter body features a standard 1/4-28 UNF mounting hole. It must be securely bolted to a flat, machined surface on the machine casing to ensure accurate high-frequency vibration transfer.
Q:Can this assembly be used in harsh or outdoor environments?
A:Yes. The transmitter casing is built from 316L stainless steel and supports up to 100% relative humidity (non-submerged). The 16710-06 cable armor is made of flexible stainless steel braid or interlocking metal armor, which protects the inner conductors from mechanical crushing, abrasion, and electromagnetic interference (EMI).
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：177230-02-01-CN 16710-06 |
|
Measurement Range |
0 – 50.8 mm/s (0 – 2.0 in/s) |
|
Excitation Voltage |
12 to 30 Vdc (Current limited to 40 mA) |
|
Settling Time |
Less than 15 seconds within 2% of final value |
|
Mounted Resonant Frequency |
Greater than 12 kHz |
|
Transverse Sensitivity |
Less than 5% of sensitivity |
|
Velocity Output Signal |
4 to 20 mA Current Loop from Pin A to Pin B |
|
Acceleration Sensitivity |
10.2 mV/m/s2 (100 mV/g) ± 20% |
|
Full Scale Range |
147 m/s2 ( 15 g) peak |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Frequency |
10 Hz to 1 kHz (600 to 60 kcps) RMS (Root Mean Square) |
|
Length in feet |
6 feet |
|
