in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
6.7x2.8x2.4cmWeight:
0.12kgCountry of Origin: :
USADescription:
Bently Nevada 177230-02-01-05 16925-48 Seismic Transmitter
| Mfr. Part Number: |
177230-02-01-05 16925-48 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 177230 Seismic Transmitter incorporates robust CM for reliability and implements an industry-standard 4 to 20 mA loop-powered transmitter. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

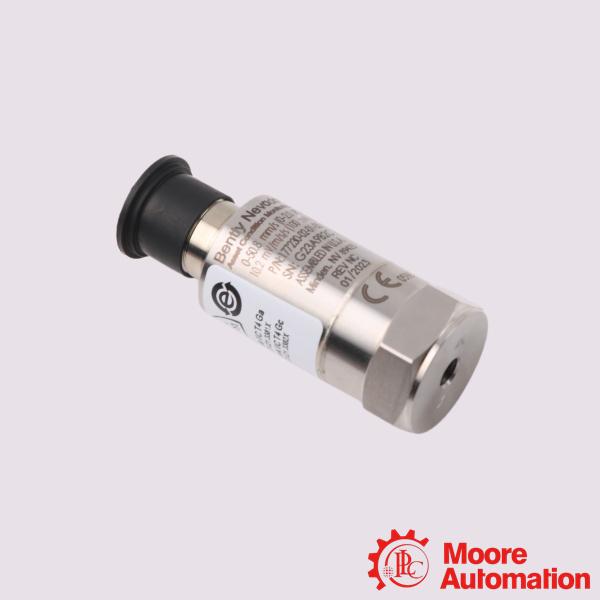

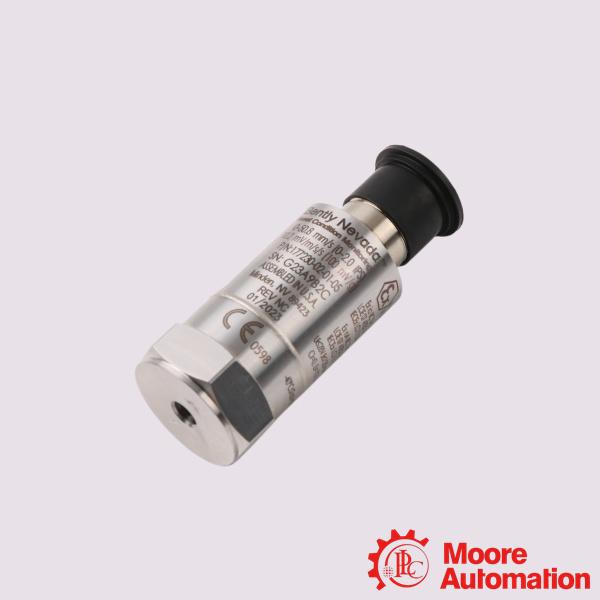

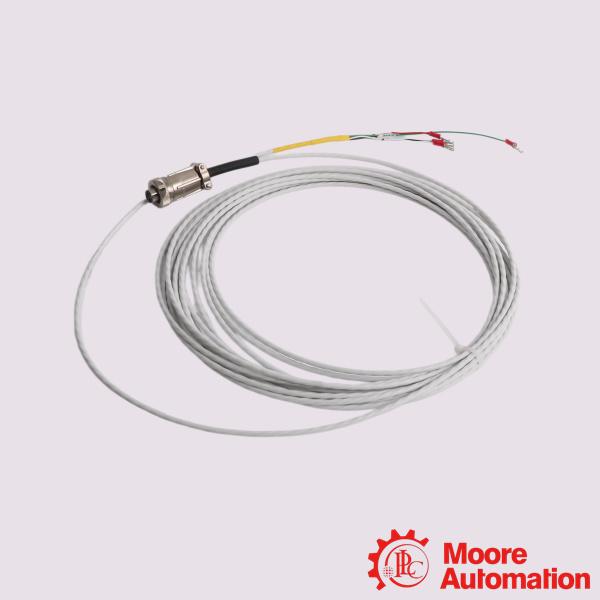

The Bently Nevada 177230-02-01-05 is a loop-powered seismic vibration transmitter paired with a 16925-48 interconnect cable. This hardware combination targets general-purpose and non-critical industrial machinery asset condition monitoring where cost-effective, continuous velocity tracking is required.The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. It can be integrated into your programmable logic controller (PLC) or controls system linked to a plant asset condition monitoring solution.
Application:
Power Generation: Tracking balance-of-plant equipment like cooling tower fans and feed pumps.
Oil & Gas / Petrochemical: Checking auxiliary motors, small compressors, and fluid pumps.
Pulp & Paper: Verifying the stability of roller element bearings and drying exhaust fans.
Mining & Metal Processing: Guarding conveyor drive motors and ventilation systems.
Frequently Asked Questions (FAQ)
Q:How is the transmitter powered?
A:It is a loop-powered device. It relies on a standard external 24 VDC (±20%) power supply integrated directly into the 4-20 mA control loop.
Q:What is the housing material and environmental resilience?
A:The case is machined from 316L stainless steel. It features a hermetically sealed 3-pin MIL-C-5015 top connector, making it highly resistant to corrosive environments and moisture exposur
Q:What are the mechanical mounting parameters?
A:The bottom base features a 1/4-28 UNF threaded mounting hole. It is typically secured to the machine's bearing housing using compatible M6, M8, or 1/4-28 mounting studs.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：177230-02-01-05 16925-48 |
|
Measurement Range |
0 – 25.4 mm/s (0 – 1.0 in/s) |
|
Frequency |
10 Hz to 1 kHz (600 to 60 kcps) RMS (Root Mean Square) |
|
Length in feet |
48 feet |
|
Excitation Voltage |
12 to 30 Vdc (Current limited to 40 mA) |
|
Transverse Sensitivity |
Less than 5% of sensitivity |
|
Output Signal |
4 to 20 mA Current Loop from Pin A to Pin B |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ± 20% |
|
Linearity |
± 1% of Full Scale |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Approvals |
Multiple Approvals (CSA/NRTL/C, ATEX/IECEx) |
|
