in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
6.8x2.8x2.8cmWeight:
0.12kgCountry of Origin: :
USADescription:

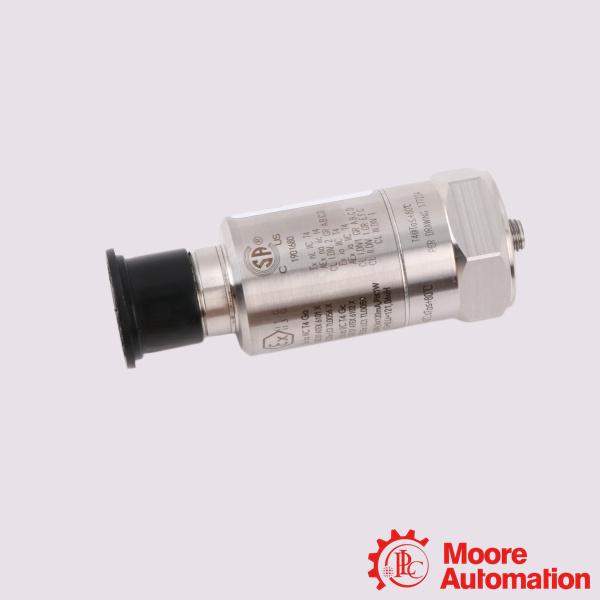

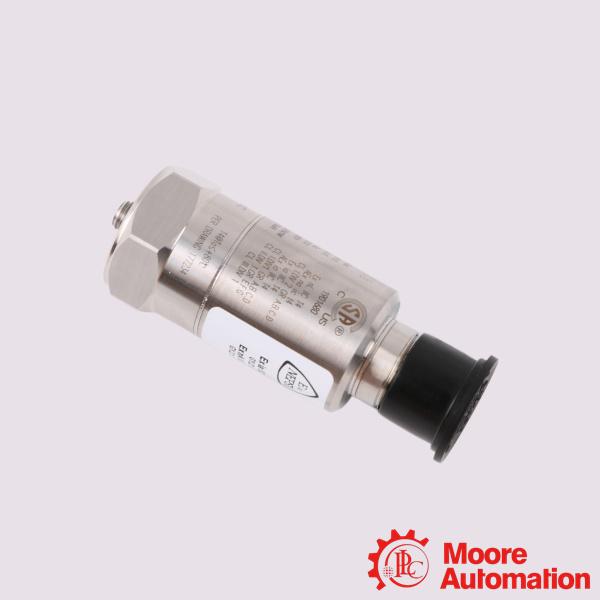

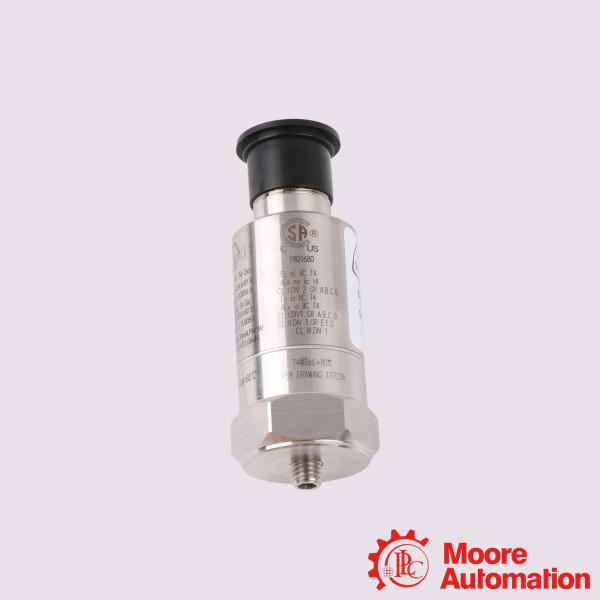

Bently Nevada 177230-00-01-CN 16710-99 Seismic Transmitter
| Mfr. Part Number: |
177230-00-01-CN 16710-99 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 177230-00-01-CN 16710-99 is a loop-powered Seismic Transmitter Together, these ruggedized hardware components form a highly specialized asset protection and condition-monitoring assembly. The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. It can be integrated into your programmable logic controller (PLC) or controls system linked to a plant asset condition monitoring solution. Its simple design reduces training, maintenance, and service costs. The transducer helps you better manage downtime, optimize maintenance planning, and avoid unforeseen catastrophic failures of machinery assets.
Application:
Pumps & Fans: Monitors cooling water pumps, draft fans, and condenser pumps in traditional and thermal power generation.
Hydroelectric Facilities: Tracks structural casing vibrations on smaller, non-critical hydraulic turbines, water gates, and ancillary generators.
Wind Power: Evaluates mechanical stress, bearing housing degradation, and misalignment in the main gearbox and generator casings of wind turbine nacelles.
Process Rollers & Dryers: Monitored via the transmitter mounted to rolling element bearing housings to trace bearing fatigue and structural looseness.
Frequently Asked Questions (FAQ)
Q:What are the main applications for the 177230 transmitter?
A:It is engineered for continuous casing vibration velocity monitoring on non-critical rotating machinery. Common industrial deployments include pumps, electric motors, cooling tower fans, air compressors, and small centrifuges.
Q:How does the transmitter send data to a control system?
A:The unit functions as a 2-wire, 4-20 mA loop-powered device. It automatically processes raw casing acceleration into a standard 4-20 mA velocity signal. This configuration outputs directly to a PLC, DCS, or SCADA system without external signal conditioners.
Q:Can I extract raw vibration waveforms from this device?
A:Yes. The transmitter includes a buffered dynamic acceleration waveform output. This diagnostic signal is accessible on the non-sensor end of the field wiring loop. Maintenance teams can attach portable data collectors here for advanced machinery troubleshooting without removing the sensor.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：177230-00-01-CN 16710-99 |
|
Measurement Range |
0 – 12.7 mm/s (0 – 0.5 in/s) |
|
Excitation Voltage |
10 Hz to 1 kHz (600 to 60 kcps) RMS (Root Mean Square) |
|
Settling Time |
Less than 15 seconds within 2% of final value |
|
Mounted Resonant Frequency |
Greater than 12 kHz |
|
Transverse Sensitivity |
Less than 5% of sensitivity |
|
Velocity Output Signal |
4 to 20 mA Current Loop from Pin A to Pin B |
|
Acceleration Sensitivity |
10.2 mV/m/s2 (100 mV/g) ± 20% |
|
Full Scale Range |
147 m/s2 ( 15 g) peak |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Frequency |
10 Hz to 1 kHz (600 to 60 kcps) RMS (Root Mean Square) |
|
Length in feet |
99 feet |
|
