in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
28x28x3cmWeight:
0.38kgCountry of Origin: :
USADescription:
Bently Nevada 177230-00-01-05 16925-33 Seismic Transmitter
| Mfr. Part Number: |
177230-00-01-05 16925-33 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |

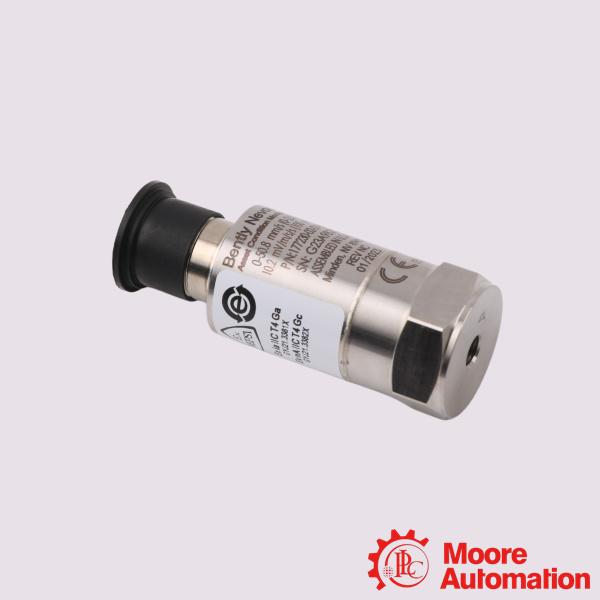

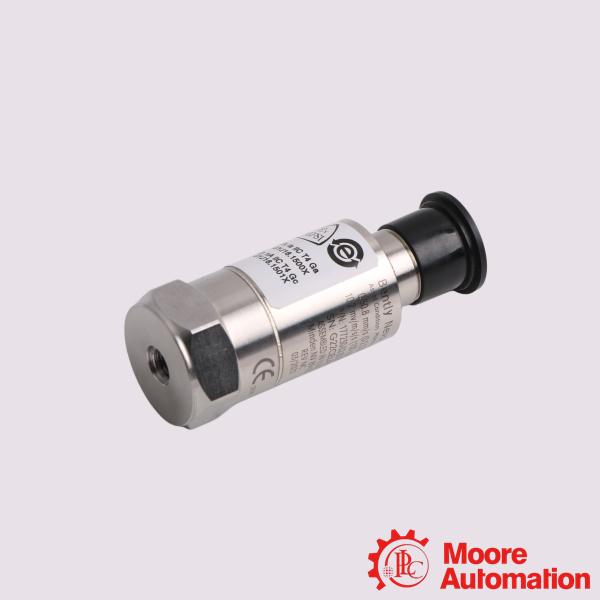

The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

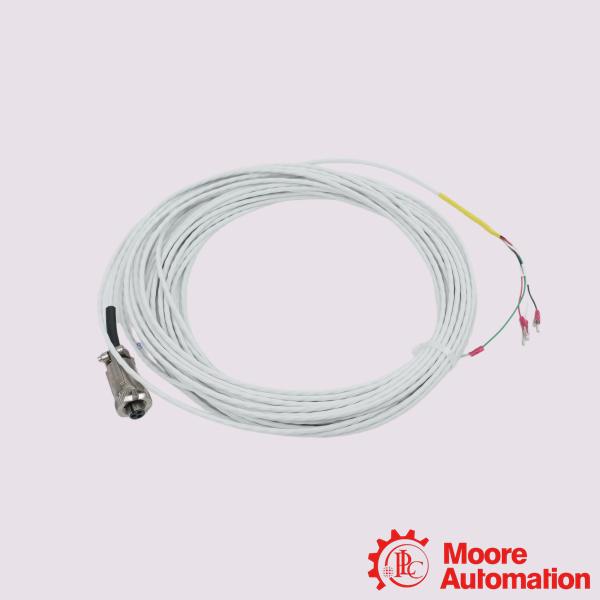

The Bently Nevada 177230-00-01-05 is a loop-powered seismic vibration transmitter paired with the 16925-33 33-foot unarmored interconnect cable. Together, they provide continuous 4-20 mA vibration monitoring for non-critical rotating industrial machinery to feed data directly into PLCs, DCSs, or SCADA systems.The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. It can be integrated into your programmable logic controller (PLC) or controls system linked to a plant asset condition monitoring solution.
Application:
Cooling Tower Fans: Detects blade unbalance, gearbox degradation, or shaft misalignment in remote cooling cells.
Auxiliary Motors & Pumps: Tracks the health of boiler feed pumps, lube oil pumps, and intake fans that support main turbine blocks.
Industrial Ventilation Fans: Catches dust buildup or mechanical looseness on process exhaust and intake fans.
Agitators & Mixers: Keeps track of mechanical stress and bearing degradation on large fluid mixing tanks.
Frequently Asked Questions (FAQ)
Q:Does it require an external proximity monitor or rack?
A:No. Unlike proximity probes that require a separate proximity monitor or a 3500 rack system, this is an integrated transmitter. It translates raw vibration data directly into a 4-20 mA loop that wires straight to a standard PLC/DCS analog input card.
Q:How is the sensor mounted?
A:The unit utilizes a standard ¼-28 UNF threaded mounting hole at the base. It must be securely coupled to a flat, rigid machine surface to avoid false signals caused by housing resonance.
Q:What type of signal does this sensor output?
A:It outputs a two-wire 4-20 mA current loop. The current value changes proportionally to the peak vibration velocity detected on the machine case.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：177230-00-01-05 16925-33 |
|
Measurement Range |
0 – 12.7 mm/s (0 – 0.5 in/s) |
|
Frequency |
10 Hz to 1 kHz (600 to 60 kcps) RMS (Root Mean Square) |
|
Approvals |
Multiple Approvals (CSA/NRTL/C, ATEX/IECEx) |
|
Length in feet |
33 feet |
|
Excitation Voltage |
12 to 30 Vdc (Current limited to 40 mA) |
|
Transverse Sensitivity |
Less than 5% of sensitivity |
|
Output Signal |
4 to 20 mA Current Loop from Pin A to Pin B |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ± 20% |
|
Linearity |
± 1% of Full Scale |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
