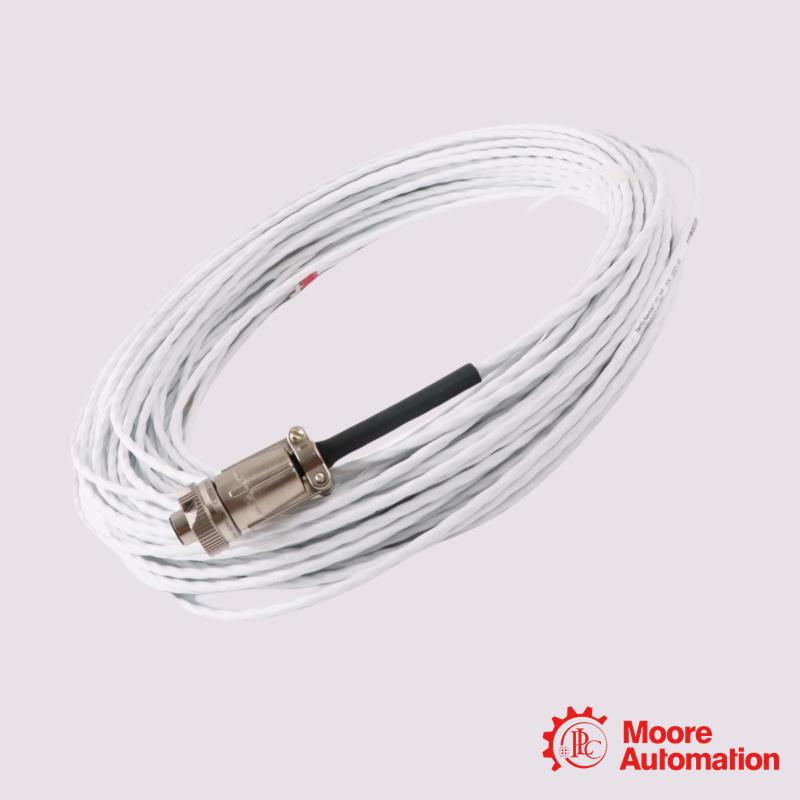

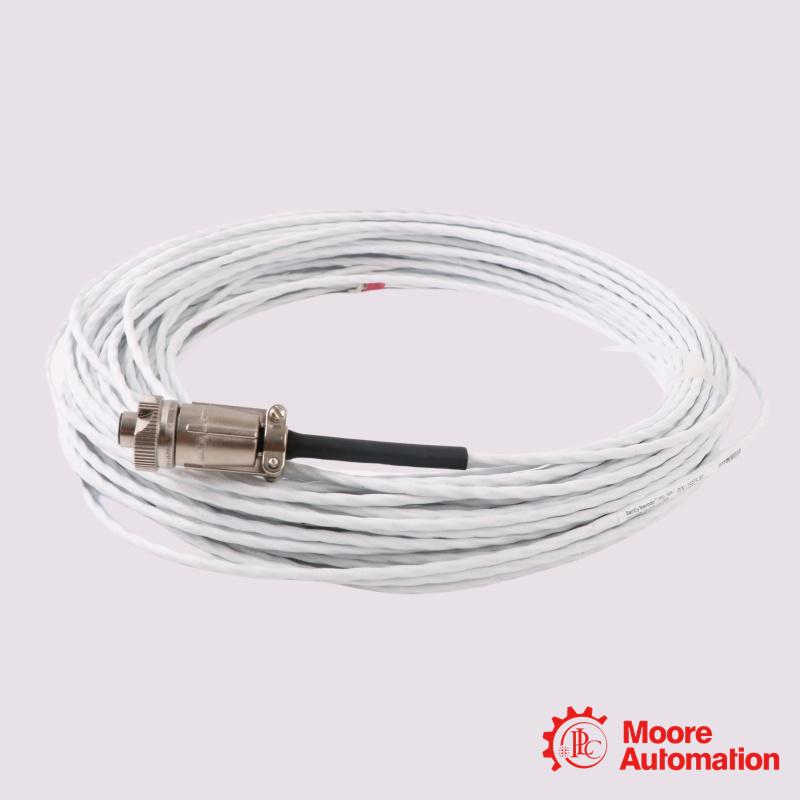

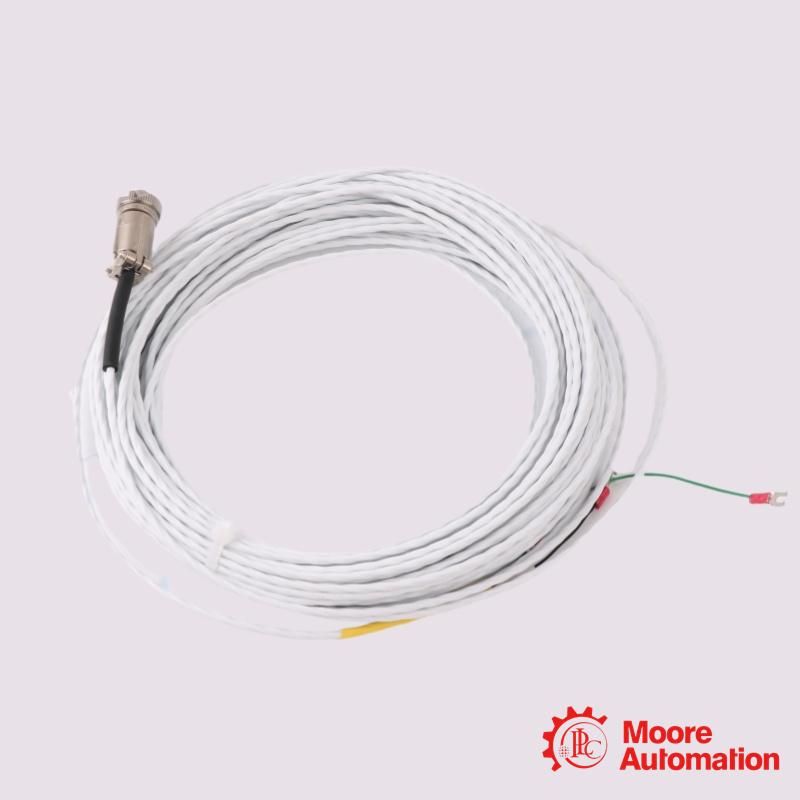

16925-10 Bently Nevada Sensor Proximity Probe Cable

Brand/ Manufacturer:
Bently Nevada
Dimensions:
26x24x3cm
Weight:
0.15kg
Country of Origin: :
United States
Description:
16925-10 Bently Nevada Interconnect Cable

Inquiry now

Mfr. Part Number:	16925-10

Manufacturer:	Bently Nevada

Description:	Sensor Proximity Probe Cable

Full Description:	16925-10 Bently Nevada Sensor Proximity Probe Cable


Status:	In stock ready to ship

Description:

16925-10 Interconnect Cable is a high-performance industrial signal cable designed to provide stable and reliable connectivity between proximity probes and associated driver or monitoring modules in machinery condition monitoring systems. With a standard cable length of 10 ft (≈3.0 m) and an approximate diameter of 5.0 mm, this cable supports efficient installation while maintaining consistent electrical performance.

Sales manager: Tiffany Guan plcsale@mooreplc.com + 86 18030235313 2851195473

parameter
Cable Length: 10 ft (≈3.0 m)
Cable Diameter: Approx. 5.0 mm
Connector Style: Pre-terminated connectors for probe and driver interface
Operating Temperature Range: -51 °C to +177 °C
Storage Temperature Range: -55 °C to +200 °C
Rated Voltage: 30 VDC (maximum)
Rated Current: ≤20 mA
Signal Transmission: Analog proximity probe signal
Characteristic Impedance: 50 Ω
Capacitance: ≤100 pF/m
Resistance: ≤0.1 Ω/m
Shielding Type: Full braided shield with foil layer
Shield Coverage: ≥90%
Insulation Material: Fluoropolymer (FEP/PTFE)
Jacket Material: Oil-resistant industrial polymer
Minimum Bend Radius: ≥50 mm

Frequently asked questions

1.What is 16925-10?
16925-10 is a Interconnect Cable

2.What does the model number 16925-10 represent?
It denotes an interconnect cable with a 10 ft length designed for signal connection between compatible sensors and monitoring systems.

3.What is the primary purpose of the 16925-10 interconnect cable?
This cable is used to transmit low-level signals reliably between field devices and associated control or monitoring modules.

4.What type of signals does the 16925-10 cable carry?
It is designed for stable transmission of analog sensor signals with low noise and minimal signal loss.

5.Which applications commonly use the 16925-10 interconnect cable?
It is commonly used in machinery condition monitoring applications such as vibration, displacement, and position measurement systems.
