in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
27x26x4cmWeight:
1.08kgCountry of Origin: :
USADescription:
Bently Nevada 16710-15 177230-00-01-CN Interconnect Cable
| Mfr. Part Number: |
16710-15 177230-00-01-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The Bently Nevada 16710 series part number refers to a specialized, 3-conductor shielded armored interconnect cable. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

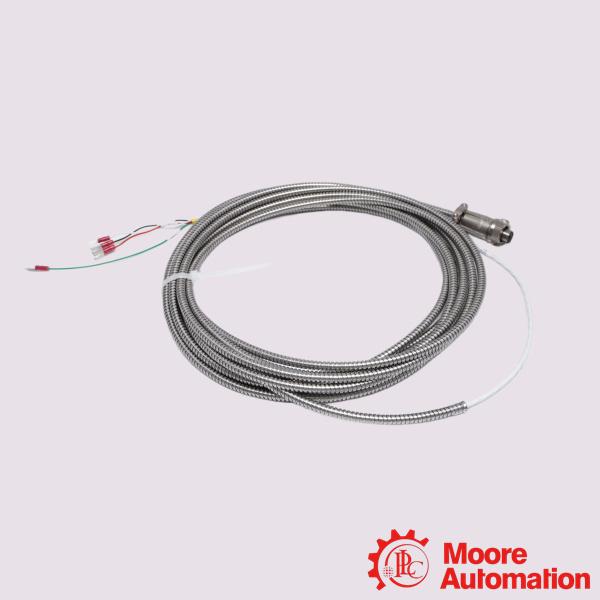

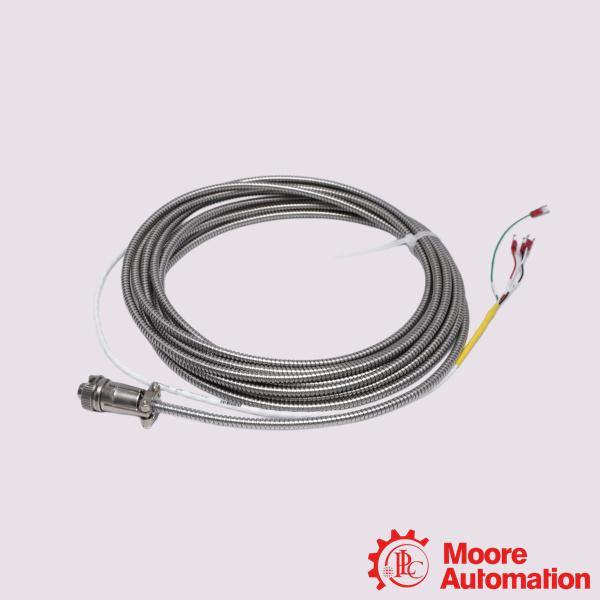

Bently Nevada 16710-15 177230-00-01-CN is a high-performance armored interconnect cable. As a crucial component of Bently's unit condition monitoring system, this cable primarily connects field sensors (such as accelerometers and speed sensors) to the 3500 monitoring system or preamplifier in the control room, ensuring complete and lossless transmission of weak signals such as vibration and displacement from critical mechanical equipment. These accelerometers are intended for critical machinery applications where casing acceleration measurements are required, such as gear mesh monitoring.
Application:
Power Generation: Deployed on steam turbines, gas turbines, generators, and cooling tower fans to detect structural and bearing degradation.
Oil & Gas (Onshore/Offshore): Used on offshore oil rig sensor networks, subsea extraction machinery, and large pipeline compressors.
Petrochemical & Refining: Installed on critical pumps, multi-stage compressors, and expanders susceptible to mechanical unbalance or misalignment.
Mining & Heavy Industry: Integrated into heavy-duty conveyor drives, gearboxes, crushing mills, and massive process fans.
Frequently Asked Questions (FAQ)
Q:Why does this configuration feature an armored cable?
A:Industrial environments expose cables to physical hazards like crushing, sharp bends, and high electromagnetic noise. The helical stainless steel armor on the 16710 cable series shields the 22 AWG internal conductors from mechanical damage, compression, and EMI/RFI noise generated by nearby motors or frequency drives.
Q:Where should this sensor assembly be mounted?
A:It should be mounted directly onto the bearing housing of non-critical, general-purpose machinery. The transmitter casing features a 1/4-28 UNF internal mounting hole and accepts common M6 or M8 stud adapters. Ensure it is tightened to a torque rating between 4 to 7 N-m (35.4 to 62.0 in-lbf) to achieve full, unattenuated frequency transmission.
Q:Can it transmit long distances without losing signal strength?
A:Yes. The transducer systems support up to 305 meters (1,000 feet) of total continuous cabling without experiencing data or signal degradation.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：16710-15 177230-00-01-CN |
|
Minimum length |
3.0 ft (0.9 m) |
|
maximum length |
99 ft (30 m) |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ±5%. |
|
Amplitude Linearity |
±1% to 490 m/ s2 (50 g) peak. |
|
Input Voltage |
-24 ± 0.5 Vdc. |
|
Bias Current |
2 mA nominal. |
|
Output Bias Voltage: |
-8.5 ± 0.5 Vdc. |
|
Grounding |
Case isolated. |
|
Operating and storage temperature |
-55°C to +121°C (-67°F to +250°F) |
|
