in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
26x26x3cmWeight:
0.4kgCountry of Origin: :
USADescription:

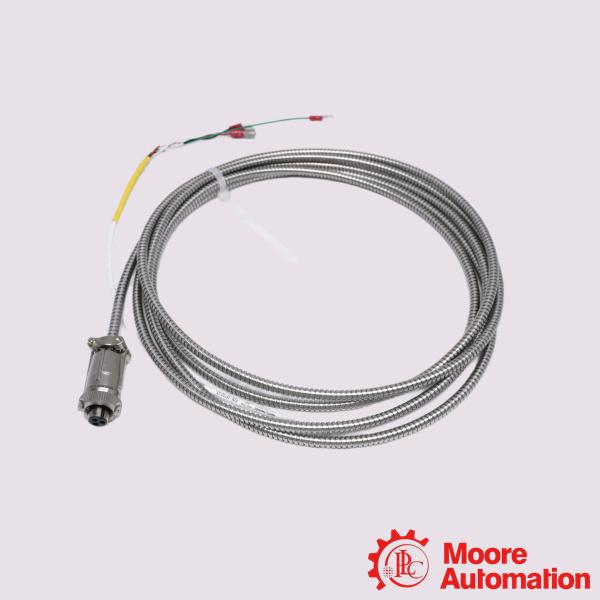

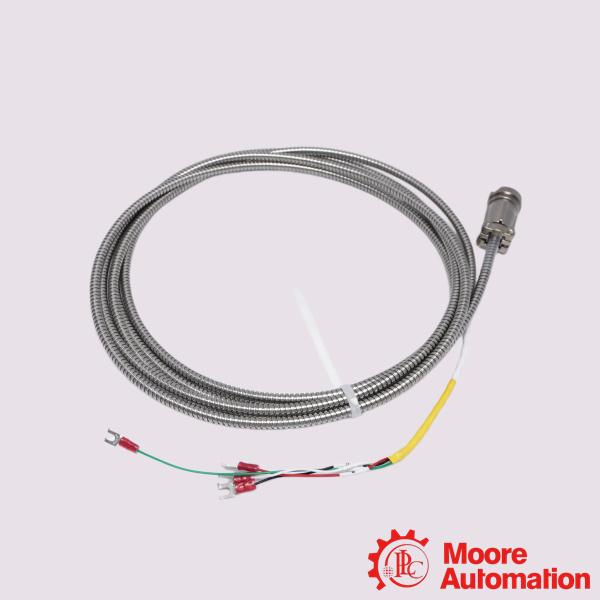

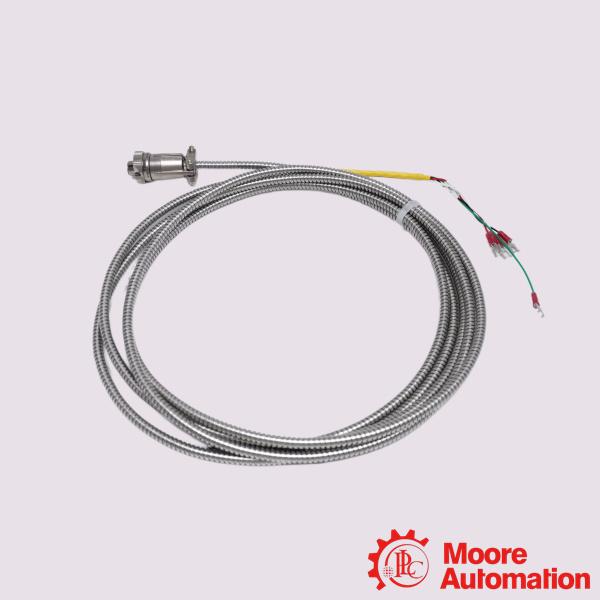

Bently Nevada 16710-13 Extension Cable
| Mfr. Part Number: |
16710-13 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 330400 is
designed to address the requirements of American
Petroleum Institute Standard 670 for accelerometers. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 16710-13 is a 13-foot, 3-conductor shielded, armored interconnect cable to transmit high-fidelity vibration data from sensors to machinery protection systems. It acts as a rugged link connecting Bently Nevada 330400 or 330425 accelerometer acceleration transducers directly to critical monitoring frameworks. These accelerometers are intended for critical machinery applications where casing acceleration measurements are required, such as gear mesh monitoring. The 330400 is designed to address the requirements of American Petroleum Institute Standard 670 for accelerometers. It provides an amplitude range of 50 g peak and a sensitivity of 100 mV/g. The 330425 is identical except it provides a larger amplitude range (75 g peak) and a sensitivity of 25 mV/g.
Application:
Steam and Gas Turbines: Monitors structural case acceleration to prevent catastrophic blade or shaft failure.
Centrifugal Compressors & Blowers: Tracks casing vibration to spot imbalance, misalignment, or aerodynamic surging.
Gearboxes (Gear Mesh Monitoring): Captures the high-frequency vibration signals required to detect cracked or worn gear teeth.
Large Industrial Motors & Pumps: Provides continuous data feeds to predictive maintenance systems to avoid unplanned factory downtime.
Frequently Asked Questions (FAQ)
Q:What are the primary specifications of this cable?
A:It is a 3-conductor, shielded, 22 AWG (0.5 mm²) armored cable. It comes built with a 3-socket plug on one end and terminal lugs on the other.
Q:How should the armored layer be grounded?
A:If the cable is not routed inside a dedicated protective conduit, the armor layer should be grounded rigidly to a structure close to the sensor. The opposing end of the armor layer connects directly to the monitor housing or enclosure structure.
Q:What is the structural bending limit?
A:To avoid damaging the integrated internal conductors or crushing the outer armor jacket, you must maintain a minimum bend radius of 38.1 mm (1.5 inches) during deployment and routing.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：16710-13 |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ±5% |
|
Amplitude Linearity |
±1% to 490 m/ s2 (50 g) peak |
|
Broadband Noise Floor (10 Hz to 15 kHz) |
0.039 m/s2 (0.004 g) rms. |
|
Input Voltage |
-24 ± 0.5 Vdc. |
|
Bias Current |
2 mA nominal. |
|
Output Bias Voltage |
-8.5 ± 0.5 Vdc. |
|
Operating and storage temperature |
-55°C to +121°C (-67°F to +250°F) |
|
Shock Survivability |
49,050 m/s2 (5000 g) peak, maximum. |
|
Mounting Thread Option |
M8 X 1 integral stud |
|
